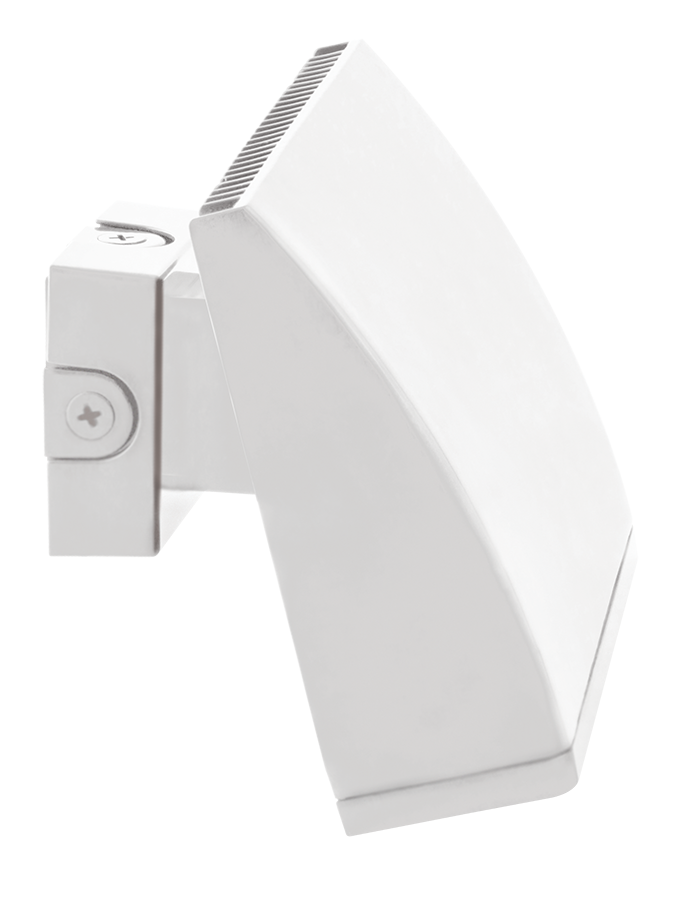

RAB Lighting WPLED52W/PCS Wallpack, LED Lamp, 61 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
Custom_Product_Images_Illustration
RAB Lighting WPLED52W/PCS Wallpack, LED Lamp, 61 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
SKU672938
MFGR #WPLED52W/PCS
Your Cost: $602.41/ea
RAB Wallpack, 120 to 277 VAC, 61 W Fixture, 0.51 A, LED Lamp, 52 W Lamp, 100000 hr Average Life, White Light, 5000 K Color, 65 CRI, Glass Lens, 3884 Lumens, Wall Mount, Aluminum Housing, Polyester Powder Coated Housing, 9-1/2 in W
RAB Wallpack, 120 to 277 VAC, 61 W Fixture, 0.51 A, LED Lamp, 52 W Lamp, 100000 hr Average Life, White Light, 5000 K Color, 65 CRI, Glass Lens, 3884 Lumens, Wall Mount, Aluminum Housing, Polyester Powder Coated Housing, 9-1/2 in W
Alternate Catalog Number 00019813762456 Amperage Rating 0.51 A Application OUTDOOR ARRA Compliant X Average Life 100000 hr Ballast Type Class 2 Constant Current Buy American Compliant C Catalog Number WPLED52W/PCS Color Rendering Index [CRI] 73 Color Temperature 5000 K Country of Origin US Currency USD Dimensions 9-1/2 in W EU RoHS Indicator N Gross Volume Per Pack 1.67 Gross Volume per Pack Metric 0.05 Gross Weight Per Pack 17.5500 lb Gross Weight per Pack Metric 7.96 Gross Weight UOM Metric kg Height 14.00 in Height [Metric] 35.5600 cm Housing Material Die Cast Aluminum Lamp Wattage 52 W Length 16.50 in Length [Metric] 41.9100 cm Lens Type Tempered Glass Light Color Cool White Light Output 127.7 Lumens/W Lumens 3884 Lumens Mounting Type Wall Series WPLED Standards ARRA CompliantBuy American Act Compliant Type Cut-Off UNSPSC 39112102 UPC 11 19813762456 UPC 12 019813762456 Wattage 52 W Width 12.50 in Width [Metric] 31.7500 cm Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Fixture Wattage 61 W Housing Finish White Polyester Powder Coated Lamp Type LED Voltage Rating 120 VAC OUTDOOR LED High performance LED light engine Maintains 70% of initial lumens at 100000 hr Weatherproof high temperature silicone gaskets Superior heat sinking with die cast aluminum housing and external fins Replaces 250 W metal halide floodlights Traditional wallpack look from the front 3 cut off options Suitable for use in 40 deg C ambient temperature Cast aluminum thermal management system for optimal heat sinking, the WPLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 00019813762456 |
| Amperage Rating | 0.51 A |
| Application | OUTDOOR |
| ARRA Compliant | X |
| Average Life | 100000 hr |
| Ballast Type | Class 2 Constant Current |
| Buy American Compliant | C |
| Catalog Number | WPLED52W/PCS |
| Color Rendering Index [CRI] | 73 |
| Color Temperature | 5000 K |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 9-1/2 in W |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 1.67 |
| Gross Volume per Pack Metric | 0.05 |
| Gross Weight Per Pack | 17.5500 lb |
| Gross Weight per Pack Metric | 7.96 |
| Gross Weight UOM Metric | kg |
| Height | 14.00 in |
| Height [Metric] | 35.5600 cm |
| Housing Material | Die Cast Aluminum |
| Lamp Wattage | 52 W |
| Length | 16.50 in |
| Length [Metric] | 41.9100 cm |
| Lens Type | Tempered Glass |
| Light Color | Cool White |
| Light Output | 127.7 Lumens/W |
| Lumens | 3884 Lumens |
| Mounting Type | Wall |
| Series | WPLED |
| Standards | ARRA CompliantBuy American Act Compliant |
| Type | Cut-Off |
| UNSPSC | 39112102 |
| UPC 11 | 19813762456 |
| UPC 12 | 019813762456 |
| Wattage | 52 W |
| Width | 12.50 in |
| Width [Metric] | 31.7500 cm |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Fixture Wattage | 61 W |
| Housing Finish | White Polyester Powder Coated |
| Lamp Type | LED |
| Voltage Rating | 120 VAC |
| OUTDOOR |
| LED |
| High performance LED light engine |
| Maintains 70% of initial lumens at 100000 hr |
| Weatherproof high temperature silicone gaskets |
| Superior heat sinking with die cast aluminum housing and external fins |
| Replaces 250 W metal halide floodlights |
| Traditional wallpack look from the front |
| 3 cut off options |
| Suitable for use in 40 deg C ambient temperature |
| Cast aluminum thermal management system for optimal heat sinking, the WPLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature |
