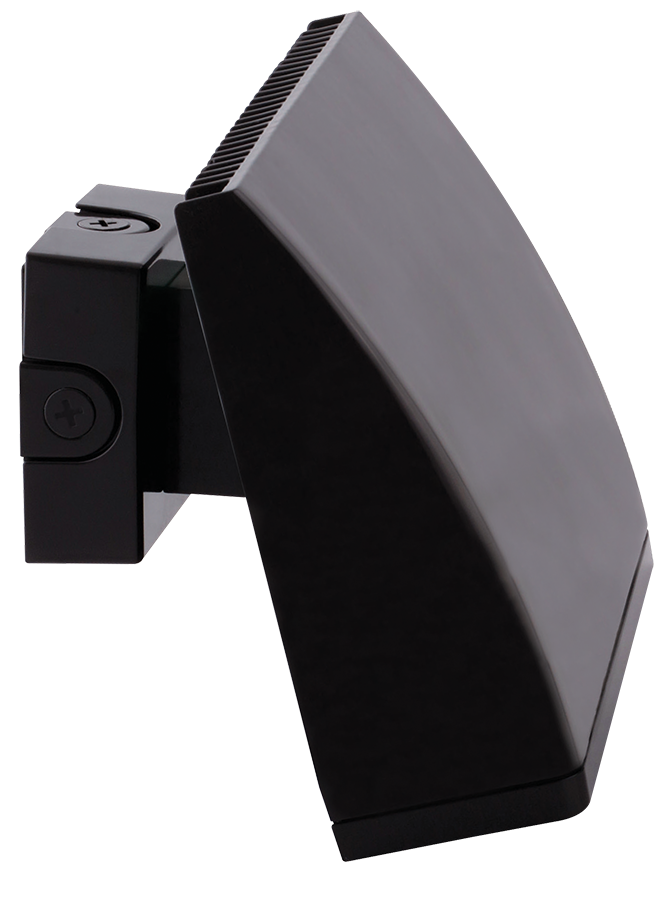

RAB Lighting WPLED52N Wallpack, LED Lamp, 60 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
Custom_Product_Images_Illustration
RAB Lighting WPLED52N Wallpack, LED Lamp, 60 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
SKU664412
MFGR #WPLED52N
Your Cost: $560.31/ea
RAB Wallpack, 120 to 277 VAC, 60 W Fixture, 0.51 A, LED Lamp, 52 W Lamp, 100000 hr Average Life, Bronze Light, 4000 K Color, 82 CRI, Glass Lens, 2294 Lumens, Wall Mount, Aluminum Housing, Polyester Powder Coated Housing, 9-1/2 in W
RAB Wallpack, 120 to 277 VAC, 60 W Fixture, 0.51 A, LED Lamp, 52 W Lamp, 100000 hr Average Life, Bronze Light, 4000 K Color, 82 CRI, Glass Lens, 2294 Lumens, Wall Mount, Aluminum Housing, Polyester Powder Coated Housing, 9-1/2 in W
Alternate Catalog Number 00019813029191 Amperage Rating 0.51/0.33/0.29/0.24 A ARRA Compliant X Average Life 100000 hr Ballast Type Class 2 Constant Current Buy American Compliant C Catalog Number WPLED52N Color Rendering Index [CRI] 82 Color Temperature 4000 K Country of Origin CN Currency USD Dimensions 10-1/4 in L x 9-1/2 in W x 3-7/8 in D EU RoHS Indicator N Gross Volume Per Pack 1.57 Gross Volume per Pack Metric 0.04 Gross Weight Per Pack 17.5500 lb Gross Weight per Pack Metric 7.96 Gross Weight UOM Metric kg Height 14.00 in Height [Metric] 35.5600 cm Housing Material Die Cast Aluminum Lamp Wattage 52 W Length 16.50 in Length [Metric] 41.9100 cm Lens Type Tempered Glass Light Color Neutral Lumens 7,320 lm Mounting Type Wall Series WPLED Standards ANSI C78.377California Title 24UL ListedDLC CertifiedIESNA LM-79/80 Type Wallpack UNSPSC 39112102 UPC 11 01981302919 UPC 12 019813029191 Wattage 52 W Width 12.50 in Width [Metric] 31.7500 cm Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Fixture Wattage 60 W Housing Finish Bronze Lamp Type LED Voltage Rating 120/277 V LED High performance LED light engine Maintains 70% of initial lumens at 100000 hr Weatherproof high temperature silicone gasket Superior heat sinking with die cast aluminum housing and external fins Replaces 250 W MH Traditional wallpack look from the front Suitable for use in 40 deg C ambient temperature Cast aluminum thermal management system for optimal heat sinking, the WPLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature 0.51 A at 120 VAC, 0.33 A at 208 VAC, 0.29 A at 240 VAC, 0.24 A at 277 VAC Without photocell
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 00019813029191 |
| Amperage Rating | 0.51/0.33/0.29/0.24 A |
| ARRA Compliant | X |
| Average Life | 100000 hr |
| Ballast Type | Class 2 Constant Current |
| Buy American Compliant | C |
| Catalog Number | WPLED52N |
| Color Rendering Index [CRI] | 82 |
| Color Temperature | 4000 K |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 10-1/4 in L x 9-1/2 in W x 3-7/8 in D |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 1.57 |
| Gross Volume per Pack Metric | 0.04 |
| Gross Weight Per Pack | 17.5500 lb |
| Gross Weight per Pack Metric | 7.96 |
| Gross Weight UOM Metric | kg |
| Height | 14.00 in |
| Height [Metric] | 35.5600 cm |
| Housing Material | Die Cast Aluminum |
| Lamp Wattage | 52 W |
| Length | 16.50 in |
| Length [Metric] | 41.9100 cm |
| Lens Type | Tempered Glass |
| Light Color | Neutral |
| Lumens | 7,320 lm |
| Mounting Type | Wall |
| Series | WPLED |
| Standards | ANSI C78.377California Title 24UL ListedDLC CertifiedIESNA LM-79/80 |
| Type | Wallpack |
| UNSPSC | 39112102 |
| UPC 11 | 01981302919 |
| UPC 12 | 019813029191 |
| Wattage | 52 W |
| Width | 12.50 in |
| Width [Metric] | 31.7500 cm |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Fixture Wattage | 60 W |
| Housing Finish | Bronze |
| Lamp Type | LED |
| Voltage Rating | 120/277 V |
| LED |
| High performance LED light engine |
| Maintains 70% of initial lumens at 100000 hr |
| Weatherproof high temperature silicone gasket |
| Superior heat sinking with die cast aluminum housing and external fins |
| Replaces 250 W MH |
| Traditional wallpack look from the front |
| Suitable for use in 40 deg C ambient temperature |
| Cast aluminum thermal management system for optimal heat sinking, the WPLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature |
| 0.51 A at 120 VAC, 0.33 A at 208 VAC, 0.29 A at 240 VAC, 0.24 A at 277 VAC |
| Without photocell |
