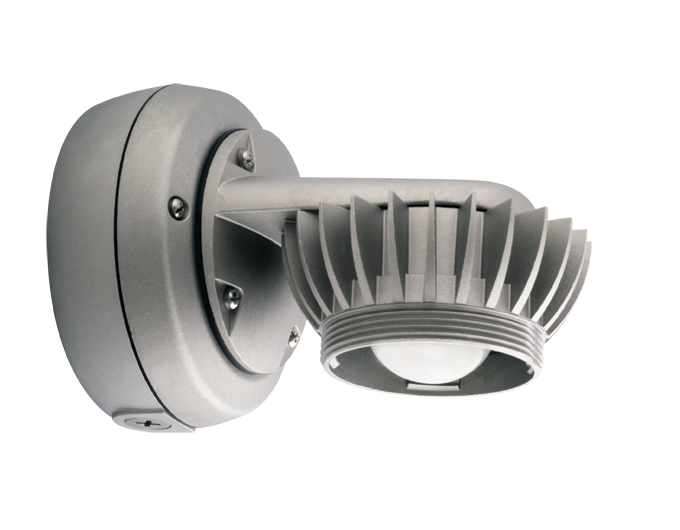

RAB Lighting VXBRLED13 RAB VX Series Outdoor Vaporproof Light, LED Lamp, 15 W Fixture, 120/208/240/277 VAC, Natural Housing
Custom_Product_Images_Illustration
RAB Lighting VXBRLED13 RAB VX Series Outdoor Vaporproof Light, LED Lamp, 15 W Fixture, 120/208/240/277 VAC, Natural Housing
SKU664873
MFGR #VXBRLED13
Your Cost: $242.62/ea
RAB Outdoor Vaporproof Light, Series: VX Series, 120/208/240/277 VAC, 15 W Fixture, 0.3/0.3/0.3/0.15 A, LED Lamp, 13 W Lamp, 100000 hr Average Life, 5000 K Color, 86 CRI CRI, 507 Lumens, Ceiling Mount, Die Cast Aluminum Housing, Natural Housing, 6 in L x 8-1/2 in W x 6 in H
RAB Outdoor Vaporproof Light, Series: VX Series, 120/208/240/277 VAC, 15 W Fixture, 0.3/0.3/0.3/0.15 A, LED Lamp, 13 W Lamp, 100000 hr Average Life, 5000 K Color, 86 CRI CRI, 507 Lumens, Ceiling Mount, Die Cast Aluminum Housing, Natural Housing, 6 in L x 8-1/2 in W x 6 in H
Alternate Catalog Number 00019813028361 Amperage Rating 0.3/0.3/0.3/0.15 A ARRA Compliant X Average Life 100000 hr Ballast Type Constant Current Buy American Compliant C Catalog Number VXBRLED13 Color Rendering Index [CRI] 86 Color Temperature 5000 K Country of Origin TW Currency USD Dimensions 6 in Dia x 8-1/2 in L EU RoHS Indicator N Gross Volume Per Pack 0.48 Gross Volume per Pack Metric 0.01 Gross Weight Per Pack 3.6900 lb Gross Weight per Pack Metric 1.67 Gross Weight UOM Metric kg Height 6.46 in Height [Metric] 16.4084 cm Housing Material Die Cast Aluminum Lamp Wattage 13 W Length 11.34 in Length [Metric] 28.8036 cm Lens Type Semi-Specular Polycarbonate Reflector Light Color Cool White Lumens 507 lm Mounting Type Wall Series VX Series Standards ANSI C78.377California Title 24UL ListedDLC CertifiedIESNA LM-79/80TAA Compliant Type Vaporproof UNSPSC 39112102 UPC 11 19813028361 UPC 12 019813028361 Wattage 13 W Width 10.04 in Width [Metric] 25.5016 cm Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Fixture Wattage 15 W Housing Finish Natural Lamp Type LED Voltage Rating 100/277 V LED 100000 hr life based on LM-80 tests High performance LED light engine Classic design with state of the art LED technology Without photocell Constant current bulb spacing High quality hydro formed semi-specular aluminum reflector High temperature silicone gasket Suitable for use in 35 deg C ambient temperature 33 LPW efficacy Precision die cast aluminum housing, lens frame 0.3 A at 120 VAC, 0.3 A at 208 VAC, 0.3 A at 240 VAC, 0.15 A at 277 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 00019813028361 |
| Amperage Rating | 0.3/0.3/0.3/0.15 A |
| ARRA Compliant | X |
| Average Life | 100000 hr |
| Ballast Type | Constant Current |
| Buy American Compliant | C |
| Catalog Number | VXBRLED13 |
| Color Rendering Index [CRI] | 86 |
| Color Temperature | 5000 K |
| Country of Origin | TW |
| Currency | USD |
| Dimensions | 6 in Dia x 8-1/2 in L |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 0.48 |
| Gross Volume per Pack Metric | 0.01 |
| Gross Weight Per Pack | 3.6900 lb |
| Gross Weight per Pack Metric | 1.67 |
| Gross Weight UOM Metric | kg |
| Height | 6.46 in |
| Height [Metric] | 16.4084 cm |
| Housing Material | Die Cast Aluminum |
| Lamp Wattage | 13 W |
| Length | 11.34 in |
| Length [Metric] | 28.8036 cm |
| Lens Type | Semi-Specular Polycarbonate Reflector |
| Light Color | Cool White |
| Lumens | 507 lm |
| Mounting Type | Wall |
| Series | VX Series |
| Standards | ANSI C78.377California Title 24UL ListedDLC CertifiedIESNA LM-79/80TAA Compliant |
| Type | Vaporproof |
| UNSPSC | 39112102 |
| UPC 11 | 19813028361 |
| UPC 12 | 019813028361 |
| Wattage | 13 W |
| Width | 10.04 in |
| Width [Metric] | 25.5016 cm |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Fixture Wattage | 15 W |
| Housing Finish | Natural |
| Lamp Type | LED |
| Voltage Rating | 100/277 V |
| LED |
| 100000 hr life based on LM-80 tests |
| High performance LED light engine |
| Classic design with state of the art LED technology |
| Without photocell |
| Constant current bulb spacing |
| High quality hydro formed semi-specular aluminum reflector |
| High temperature silicone gasket |
| Suitable for use in 35 deg C ambient temperature |
| 33 LPW efficacy |
| Precision die cast aluminum housing, lens frame |
| 0.3 A at 120 VAC, 0.3 A at 208 VAC, 0.3 A at 240 VAC, 0.15 A at 277 VAC |
