RAB Lighting QF500FW RAB Quartz Curve Flood Light Fixture, T3 Quartz Halogen Lamp, 500 W Fixture, 120/208/240/277 VAC
Custom_Product_Images_Illustration
RAB Lighting QF500FW RAB Quartz Curve Flood Light Fixture, T3 Quartz Halogen Lamp, 500 W Fixture, 120/208/240/277 VAC
SKU1171390
MFGR #QF500FW
Your Cost: $41.28/ea

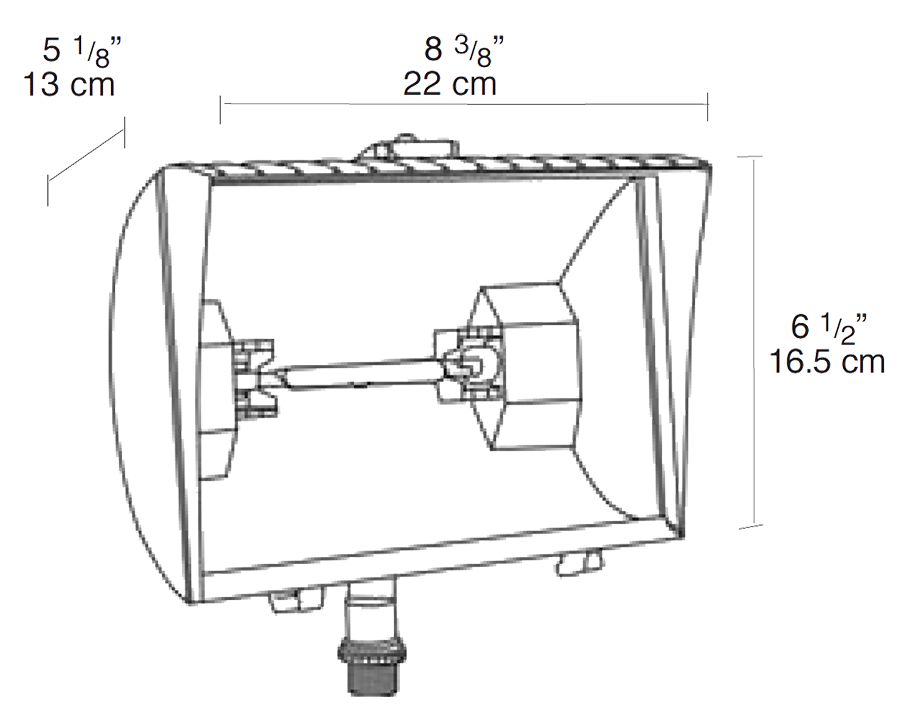

RAB Flood Light Fixture, Quartz Curve, 120/208/240/277 VAC, 500 W Fixture, T3 Quartz Halogen Lamp, 500 W Lamp, Porcelain Recessed Single Contact Lamp Base, 2000 hr Average Life, Thermal Tempered Shock Resistant Glass Lens, 11000 Lumens, Aluminum Housing, Bright White Epoxy Powder Coated Housing, 6-1/2 in H x 8-3/8 in W x 5-1/8 in D
RAB Flood Light Fixture, Quartz Curve, 120/208/240/277 VAC, 500 W Fixture, T3 Quartz Halogen Lamp, 500 W Lamp, Porcelain Recessed Single Contact Lamp Base, 2000 hr Average Life, Thermal Tempered Shock Resistant Glass Lens, 11000 Lumens, Aluminum Housing, Bright White Epoxy Powder Coated Housing, 6-1/2 in H x 8-3/8 in W x 5-1/8 in D
Alternate Catalog Number 1981320054 Application Outdoor ARRA Compliant N Average Life 2000 hr Buy American Compliant N Catalog Number QF500FW Country of Origin CN Currency USD Dimensions 6-1/2 in H x 8-3/8 in W x 5-1/8 in D EU RoHS Indicator N Gross Weight Per Pack 3.0310 lb Gross Weight per Pack Metric 1.38 Gross Weight UOM Metric kg Housing Material Die Cast Aluminum Lamp Base Type Porcelain Recessed Single Contact Lamp Wattage 500 W Lens Type Thermal Tempered Shock-Resistant Glass Lumens 11000 Lumens Mounting Ceiling Standards UL Listed Type HID Quartz Curve UNSPSC 39111520 UPC 11 01981320054 UPC 12 019813200545 Wattage 500 W Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Fixture Wattage 500 W Housing Finish White Lamp Type T3 Quartz Halogen Voltage Rating 120/208/240/277 VAC OUTDOOR HID High temperature silicone gasket stays in-place during re-lamping Semi-specular anodized aluminum Porcelain RSC base sockets with gold plated spring-loaded contacts and strain relieved 250 deg C Teflon insulated wires Silicone gasket remains in-place during re-lamping Stainless steel external hardware Stainless steel clip with vandal proof screw capability Integra hood glare shield for friendly lighting when properly aimed Fins for heat dissipation and extended lamp life 22 Lumens/W efficacy 1/2 in NPS threaded arm locking swive
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 1981320054 |
| Application | Outdoor |
| ARRA Compliant | N |
| Average Life | 2000 hr |
| Buy American Compliant | N |
| Catalog Number | QF500FW |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 6-1/2 in H x 8-3/8 in W x 5-1/8 in D |
| EU RoHS Indicator | N |
| Gross Weight Per Pack | 3.0310 lb |
| Gross Weight per Pack Metric | 1.38 |
| Gross Weight UOM Metric | kg |
| Housing Material | Die Cast Aluminum |
| Lamp Base Type | Porcelain Recessed Single Contact |
| Lamp Wattage | 500 W |
| Lens Type | Thermal Tempered Shock-Resistant Glass |
| Lumens | 11000 Lumens |
| Mounting | Ceiling |
| Standards | UL Listed |
| Type | HID Quartz Curve |
| UNSPSC | 39111520 |
| UPC 11 | 01981320054 |
| UPC 12 | 019813200545 |
| Wattage | 500 W |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Fixture Wattage | 500 W |
| Housing Finish | White |
| Lamp Type | T3 Quartz Halogen |
| Voltage Rating | 120/208/240/277 VAC |
| OUTDOOR |
| HID |
| High temperature silicone gasket stays in-place during re-lamping |
| Semi-specular anodized aluminum |
| Porcelain RSC base sockets with gold plated spring-loaded contacts and strain relieved 250 deg C Teflon insulated wires |
| Silicone gasket remains in-place during re-lamping |
| Stainless steel external hardware |
| Stainless steel clip with vandal proof screw capability |
| Integra hood glare shield for friendly lighting when properly aimed |
| Fins for heat dissipation and extended lamp life |
| 22 Lumens/W efficacy |
| 1/2 in NPS threaded arm locking swive |
