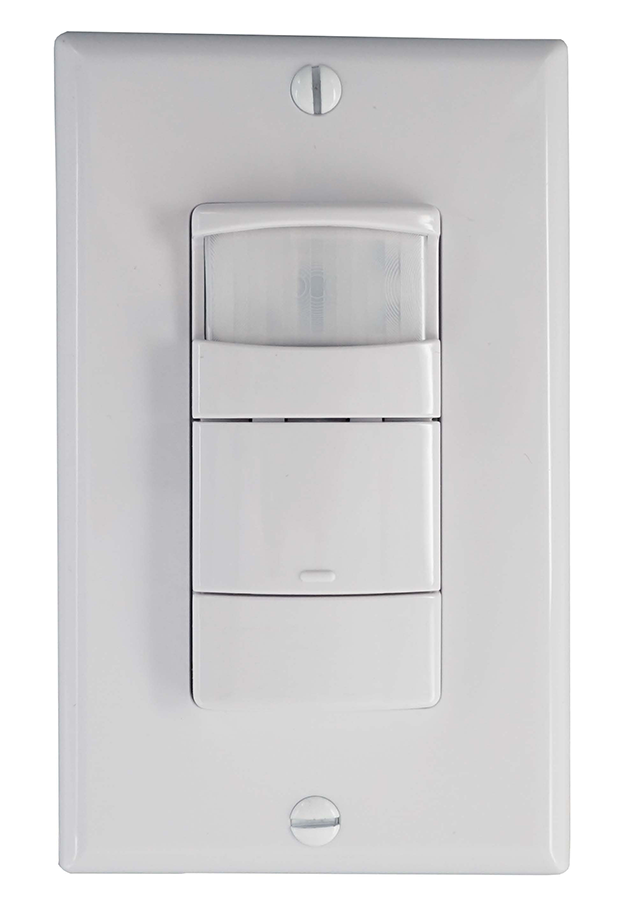

RAB Lighting LOS1000W/120 Occupancy Sensor, 120 VAC, Passive Infrared Sensor, 1000 sq-ft Coverage, 180 deg, Wall Mount
Custom_Product_Images_Illustration
RAB Lighting LOS1000W/120 Occupancy Sensor, 120 VAC, Passive Infrared Sensor, 1000 sq-ft Coverage, 180 deg, Wall Mount
SKU364225
MFGR #LOS1000W/120
Your Cost: $105.29/ea
RAB Occupancy Sensor, 120 VAC, 8 A, 1/6 hp, Passive Infrared Sensor, 1000 sq-ft Coverage, 180 deg Viewing, 30 sec to 15 min Delay, Fluorescent/Incandescent Lamp, Automatic Off Control Output, Wall Mount, White, 4 in H x 1-5/16 in W x 2-1/4 in D
RAB Occupancy Sensor, 120 VAC, 8 A, 1/6 hp, Passive Infrared Sensor, 1000 sq-ft Coverage, 180 deg Viewing, 30 sec to 15 min Delay, Fluorescent/Incandescent Lamp, Automatic Off Control Output, Wall Mount, White, 4 in H x 1-5/16 in W x 2-1/4 in D
Alternate Catalog Number 00019813741024 Amperage Rating 8 A Application Outdoor ARRA Compliant X Buy American Compliant C Catalog Number LOS1000W/120 Color White Control Output Automatic Off Country of Origin CN Currency USD Dimensions 4 in H x 1-5/16 in W x 2-1/4 in D EU RoHS Indicator N Gross Volume Per Pack 0.02 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Height 4.60 in Height [Metric] 11.6840 cm Lamp Type Fluorescent/Incandescent Length 2.20 in Length [Metric] 5.5880 cm Mounting Ceiling Power Rating 1000 W Standards UL Listed Time Delay 30 s to 15 min Type Non-Fixture UNSPSC 39121528 UPC 11 19813741024 UPC 12 019813741024 Wattage 1,000 W Width 3.00 in Width [Metric] 7.6200 cm Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Coverage 1000 ft² Mounting Type Wall Sensor Type Passive Infrared Viewing Angle 180 ° Voltage Rating 120 VAC OUTDOOR NONFIXTURE LED detection indicator Tough, vandal-resistant lens and grill Fits decorator wallplates Control panel cover only removable with wallplate to prevent tampering Manual OFF/auto switch Vandal-resistant sensor for schools, gyms and high abuse areas Compatible with most electronic ballasts, not compatible with instant start ballasts, can be wired in parallel Zero arc point switching to protect relay contacts lengthen ballast and sensor life Fits decorator wallplates with only 1/2 in protrusion Can also be used as a ceiling Can be wired in parallel
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 00019813741024 |
| Amperage Rating | 8 A |
| Application | Outdoor |
| ARRA Compliant | X |
| Buy American Compliant | C |
| Catalog Number | LOS1000W/120 |
| Color | White |
| Control Output | Automatic Off |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4 in H x 1-5/16 in W x 2-1/4 in D |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 0.02 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Height | 4.60 in |
| Height [Metric] | 11.6840 cm |
| Lamp Type | Fluorescent/Incandescent |
| Length | 2.20 in |
| Length [Metric] | 5.5880 cm |
| Mounting | Ceiling |
| Power Rating | 1000 W |
| Standards | UL Listed |
| Time Delay | 30 s to 15 min |
| Type | Non-Fixture |
| UNSPSC | 39121528 |
| UPC 11 | 19813741024 |
| UPC 12 | 019813741024 |
| Wattage | 1,000 W |
| Width | 3.00 in |
| Width [Metric] | 7.6200 cm |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Coverage | 1000 ft² |
| Mounting Type | Wall |
| Sensor Type | Passive Infrared |
| Viewing Angle | 180 ° |
| Voltage Rating | 120 VAC |
| OUTDOOR |
| NONFIXTURE |
| LED detection indicator |
| Tough, vandal-resistant lens and grill |
| Fits decorator wallplates |
| Control panel cover only removable with wallplate to prevent tampering |
| Manual OFF/auto switch |
| Vandal-resistant sensor for schools, gyms and high abuse areas |
| Compatible with most electronic ballasts, not compatible with instant start ballasts, can be wired in parallel |
| Zero arc point switching to protect relay contacts lengthen ballast and sensor life |
| Fits decorator wallplates with only 1/2 in protrusion |
| Can also be used as a ceiling |
| Can be wired in parallel |
