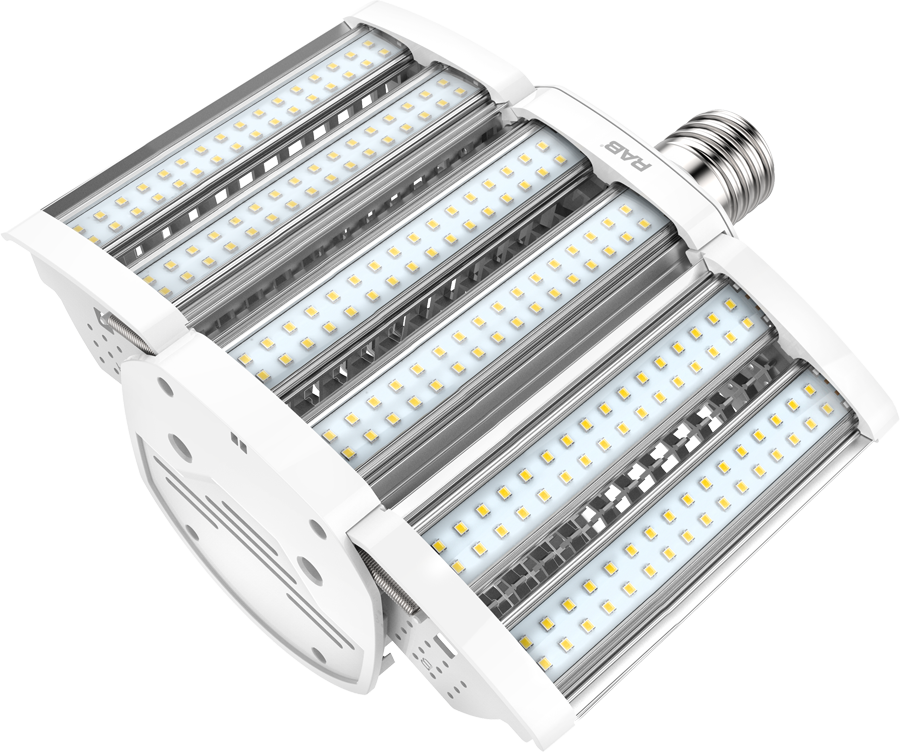

RAB Lighting HID Replacement LED, Ballast Bypass, 80w, 10,000 Lumens, Replaces 250w/320W HID, 5000K
LED HID Replacement Lamps
1142381
MFG #: HID-80-H-EX39-850-BYP-SB
RAB
164.20000
/ ea
RAB HID LED Replacement Lamp, Type B Horizontal, 80 W Wattage, 100/277 VAC, HID Lamp, EX39 Lamp Base, Shoe Box Shape, 10000 Lumens, 50000 hr Average Life, Daylight, 80 CRI, 5000 K Color Temperature, Internal Bypass Ballast, Enclosed/Open Fixture, 180 deg Beam, 8-3/4 in L x 9 in W Dimensions
- Brochure URL - lamps(Brochure URL)
- http://www.rabweb.com(Seller Home Page URL)
- Line Drawing URL - hid-80-h-ex39-8xx-byp-sb-draw.png(Line Drawing URL)
- Spec Sheet URL - HID-80-H-EX39-850-BYP-SB(Spec Sheet URL)
- Tech Drawing URL - hid-80-h-ex39-8xx-byp-sb-draw.png(Tech Drawing URL)
- Warranty URL - Website_Terms_of_Use.pdf(Warranty URL)
- Features
| HID replacement replace conventional hid lamps |
| Ballast bypass internal driver eliminates the need for external ballasts or drivers |
| Compact design allows the lamp to fit in most fixtures |
| Expandable flaps puts the light where you need it |
| Heat dissipation thermal technology extends lifespan |
| Water and dust-resistant ideal for outdoor fixtures |
| Enclosed fixture rated may be used in both enclosed and open fixtures |
| Energy savings uses 76% less energy than traditional lamps |
| Surge protection includes 4 kV surge protection |
| Mercury-free environmentally friendly vs fluorescent technologies |
| 350 deg rotatable base direct light where needed |
