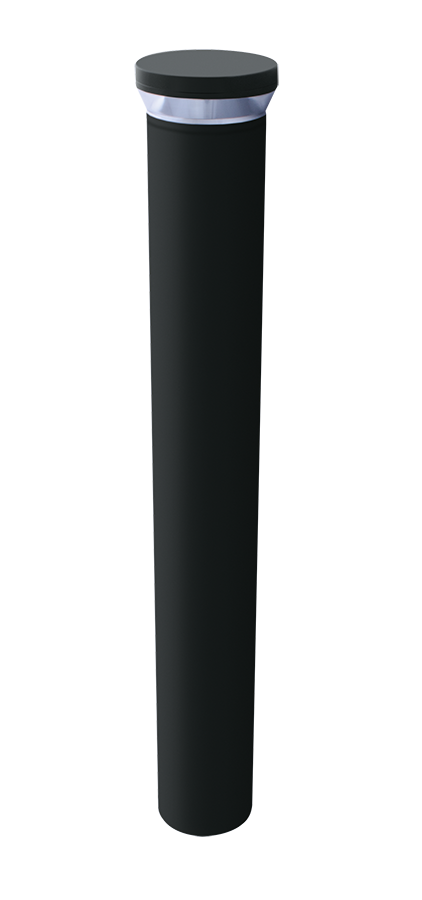

RAB Lighting BLEDR24 Round Bollard Light, LED Lamp, 23 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
Custom_Product_Images_Illustration
RAB Lighting BLEDR24 Round Bollard Light, LED Lamp, 23 W Fixture, 120 to 277 VAC, Polyester Powder Coated Housing
SKU832458
MFGR #BLEDR24
Your Cost: $959.81/ea
RAB Bollard Light, Round, 120 to 277 VAC, 23 W Fixture, 0.26 A, LED Lamp, 24 W Lamp, 100000 hr Average Life, Cool Bronze Light, 5000 K Color, 69 CRI, Polycarbonate Glass Lens, 1652 Lumens, Concrete Pad Mount, Aluminum Housing, Polyester Powder Coated Housing, 6-1/2 in L x 6-1/2 in W x 42 in H
RAB Bollard Light, Round, 120 to 277 VAC, 23 W Fixture, 0.26 A, LED Lamp, 24 W Lamp, 100000 hr Average Life, Cool Bronze Light, 5000 K Color, 69 CRI, Polycarbonate Glass Lens, 1652 Lumens, Concrete Pad Mount, Aluminum Housing, Polyester Powder Coated Housing, 6-1/2 in L x 6-1/2 in W x 42 in H
Alternate Catalog Number 00019813036304 Amperage Rating 0.26/0.18/0.15/0.14 A Application Outdoor ARRA Compliant N Average Life 100000 hr Ballast Type Constant Current Buy American Compliant N Catalog Number BLEDR24 Color Rendering Index [CRI] 69 Color Temperature 5000 K Country of Origin CN Currency USD Dimensions 42 in H x 6-1/2 in W Environmental Conditions Suitable for Wet locations EU RoHS Indicator N Fixture Finish Bronze Fixture Material Die-cast aluminum with extruded aluminum post Gross Volume Per Pack 1.95 Gross Volume per Pack Metric 0.06 Gross Weight Per Pack 18.6000 lb Gross Weight per Pack Metric 8.44 Gross Weight UOM Metric kg Height 8.70 in Height [Metric] 22.0980 cm Housing Material Aluminum Lamp Base LED Lamp Wattage 24 W Length 46.60 in Length [Metric] 118.3640 cm Lens Type Polycarbonate Glass Light Color Cool White Light Output 100000 h Lighting Technology 360 deg Lighting Pattern V Lumens 1652 Lumens Mounting Type Bollard Series BLED Standard Durable construction and frosted vandal-resistant polycarbonate lens Standards ANSI C78.377, UL Listed, IESNA LM-79, 80 Type Round UNSPSC 39111605 UPC 11 19813036304 UPC 12 019813036304 Wattage 24 W Width 8.30 in Width [Metric] 21.0820 cm Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Fixture Wattage 23 W Housing Finish Bronze Lamp Type LED Voltage Rating 120 to 277 VAC OUTDOOR Round Bollard Outdoor base mount design for super sturdy installation Durable construction and vandal resistant polycarbonate lens 3 configurations to provide 360, 270, 180 or 90 deg lighting pattern Precision engineered optics deliver maximum downward lighting without glare Clear, vandal resistant polycarbonate lens Suitable for use in 104 deg F ambient temperature High temperature silicone gaskets seal out moisture (4) anchor bolts provided for concrete pad mounting Internal base support has leveling screws Constant current bulb spacing 0.26 A at 120 VAC, 0.18 A at 208 VAC, 0.15 A at 240 VAC, 0.14 A at 277 VAC
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 00019813036304 |
| Amperage Rating | 0.26/0.18/0.15/0.14 A |
| Application | Outdoor |
| ARRA Compliant | N |
| Average Life | 100000 hr |
| Ballast Type | Constant Current |
| Buy American Compliant | N |
| Catalog Number | BLEDR24 |
| Color Rendering Index [CRI] | 69 |
| Color Temperature | 5000 K |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 42 in H x 6-1/2 in W |
| Environmental Conditions | Suitable for Wet locations |
| EU RoHS Indicator | N |
| Fixture Finish | Bronze |
| Fixture Material | Die-cast aluminum with extruded aluminum post |
| Gross Volume Per Pack | 1.95 |
| Gross Volume per Pack Metric | 0.06 |
| Gross Weight Per Pack | 18.6000 lb |
| Gross Weight per Pack Metric | 8.44 |
| Gross Weight UOM Metric | kg |
| Height | 8.70 in |
| Height [Metric] | 22.0980 cm |
| Housing Material | Aluminum |
| Lamp Base | LED |
| Lamp Wattage | 24 W |
| Length | 46.60 in |
| Length [Metric] | 118.3640 cm |
| Lens Type | Polycarbonate Glass |
| Light Color | Cool White |
| Light Output | 100000 h |
| Lighting Technology | 360 deg Lighting Pattern V |
| Lumens | 1652 Lumens |
| Mounting Type | Bollard |
| Series | BLED |
| Standard | Durable construction and frosted vandal-resistant polycarbonate lens |
| Standards | ANSI C78.377, UL Listed, IESNA LM-79, 80 |
| Type | Round |
| UNSPSC | 39111605 |
| UPC 11 | 19813036304 |
| UPC 12 | 019813036304 |
| Wattage | 24 W |
| Width | 8.30 in |
| Width [Metric] | 21.0820 cm |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Fixture Wattage | 23 W |
| Housing Finish | Bronze |
| Lamp Type | LED |
| Voltage Rating | 120 to 277 VAC |
| OUTDOOR |
| Round Bollard |
| Outdoor base mount design for super sturdy installation |
| Durable construction and vandal resistant polycarbonate lens |
| 3 configurations to provide 360, 270, 180 or 90 deg lighting pattern |
| Precision engineered optics deliver maximum downward lighting without glare |
| Clear, vandal resistant polycarbonate lens |
| Suitable for use in 104 deg F ambient temperature |
| High temperature silicone gaskets seal out moisture |
| (4) anchor bolts provided for concrete pad mounting |
| Internal base support has leveling screws |
| Constant current bulb spacing |
| 0.26 A at 120 VAC, 0.18 A at 208 VAC, 0.15 A at 240 VAC, 0.14 A at 277 VAC |
