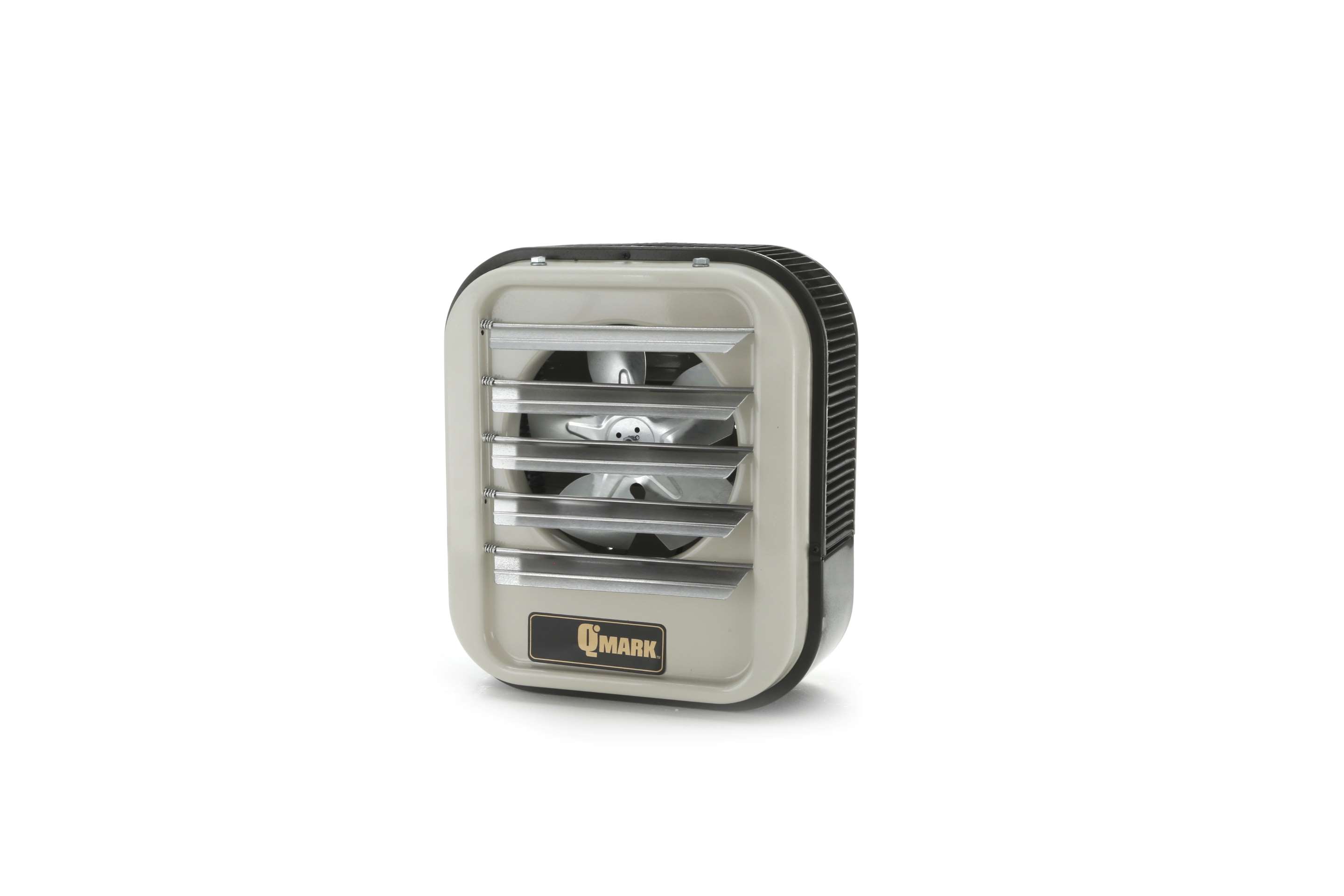

QMARK® MUH0381 1-Phase Unit Heater, 3 kW, 208 VAC
SKU1344295
MFGR #MUH0381
Your Cost: $981.10/ea
List: QMARK® Unit Heater, 1-Phase, Series: MUH, 208 VAC, 14.5 A, 60 Hz Frequency, 3 kW Power, 350 cfm Flow Rate, 1600 rpm Speed, 27 deg F, Surface Mounting, 8 ft Horizontal/9 ft Vertical Mounting Height, 20 ga Steel, Beige, 14 in W x 7-1/2 in D x 16 in H Dimensions
QMARK® Unit Heater, 1-Phase, Series: MUH, 208 VAC, 14.5 A, 60 Hz Frequency, 3 kW Power, 350 cfm Flow Rate, 1600 rpm Speed, 27 deg F, Surface Mounting, 8 ft Horizontal/9 ft Vertical Mounting Height, 20 ga Steel, Beige, 14 in W x 7-1/2 in D x 16 in H Dimensions
Amperage Rating 14.5 A Application Factories Warehouses Garages Stairwells Shipping Docks Power Stations Mechanical Spaces Catalog Number MUH0381 Color Off-White Country of Origin US Currency USD Dimensions 14 in W x 7-1/2 in D x 16 in H EU RoHS Indicator N Finish Polyester Powder Coated Flow Rate 350 cfm Frequency Rating 60 Hz Gross Weight Per Pack 27.0000 lb Gross Weight per Pack Metric 12.25 Gross Weight UOM Metric kg Height 16.00 in Height [Metric] 40.6400 cm Length 7.50 in Length [Metric] 19.0500 cm Material Heavy Gauge Die Formed Steel Model UNIT HEATERS Mounting Height 8/9 ft Mounting Type Surface/Horizontal/Downflow Series MUH Standard UL Standards cULusUL ListedNECOSHA Temperature Rating 27 °F Type HORIZONTAL/DOWNFLOW UNIT HEATER UNSPSC 40101819 UPC 11 68536004721 UPC 12 685360047218 Wattage 3 kW Width 14.00 in Width [Metric] 35.5600 cm Stock Status NONSTOCK Brand QMARK® Manufacturer Marley Engineered Products Power Rating 3 kW Voltage Rating 208 VAC Factories Warehouses Garages Stairwells Shipping Docks Power Stations Mechanical Spaces Advanced Airflow Heavy gauge die-formed steel housing, two-toned, smartly styled Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation Specially designed venturi outlet to meet that added throw as required in vertical position Branch circuit fusing Completely enclosed fan motor Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation Fan delay feature eliminates cold drafts Element heats up before fan cuts in, then fan continues to distribute heat after element shuts off Ruggedly built, yet lighter weight for easier installation, no piping flutes, valves or traps Individually adjustable discharge louvers to control air flow Choice of optional diffusers for variety of air patterns, maximizing heat concentration and coverage in the vertical position
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 14.5 A |
| Application | Factories Warehouses Garages Stairwells Shipping Docks Power Stations Mechanical Spaces |
| Catalog Number | MUH0381 |
| Color | Off-White |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 14 in W x 7-1/2 in D x 16 in H |
| EU RoHS Indicator | N |
| Finish | Polyester Powder Coated |
| Flow Rate | 350 cfm |
| Frequency Rating | 60 Hz |
| Gross Weight Per Pack | 27.0000 lb |
| Gross Weight per Pack Metric | 12.25 |
| Gross Weight UOM Metric | kg |
| Height | 16.00 in |
| Height [Metric] | 40.6400 cm |
| Length | 7.50 in |
| Length [Metric] | 19.0500 cm |
| Material | Heavy Gauge Die Formed Steel |
| Model | UNIT HEATERS |
| Mounting Height | 8/9 ft |
| Mounting Type | Surface/Horizontal/Downflow |
| Series | MUH |
| Standard | UL |
| Standards | cULusUL ListedNECOSHA |
| Temperature Rating | 27 °F |
| Type | HORIZONTAL/DOWNFLOW UNIT HEATER |
| UNSPSC | 40101819 |
| UPC 11 | 68536004721 |
| UPC 12 | 685360047218 |
| Wattage | 3 kW |
| Width | 14.00 in |
| Width [Metric] | 35.5600 cm |
| Stock Status | NONSTOCK |
| Brand | QMARK® |
| Manufacturer | Marley Engineered Products |
| Power Rating | 3 kW |
| Voltage Rating | 208 VAC |
| Factories Warehouses Garages Stairwells Shipping Docks Power Stations Mechanical Spaces |
| Advanced Airflow |
| Heavy gauge die-formed steel housing, two-toned, smartly styled |
| Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation |
| Specially designed venturi outlet to meet that added throw as required in vertical position |
| Branch circuit fusing |
| Completely enclosed fan motor |
| Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation |
| Fan delay feature eliminates cold drafts |
| Element heats up before fan cuts in, then fan continues to distribute heat after element shuts off |
| Ruggedly built, yet lighter weight for easier installation, no piping flutes, valves or traps |
| Individually adjustable discharge louvers to control air flow |
| Choice of optional diffusers for variety of air patterns, maximizing heat concentration and coverage in the vertical position |
