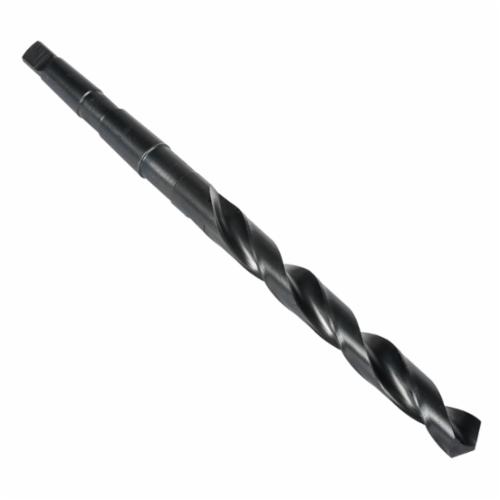

Precision Twist Drill 6001039 209 General Purpose Standard Length Taper Shank Drill Bit, 59/64 in Drill - Fraction, 0.9219 in Drill - Decimal Inch, #3 Morse Taper Shank Taper, HSS
Precision Twist Drill 6001039 209 General Purpose Standard Length Taper Shank Drill Bit, 59/64 in Drill - Fraction, 0.9219 in Drill - Decimal Inch, #3 Morse Taper Shank Taper, HSS
SKU761657
MFGR #6001039
Your Cost: $125.44/ea
List: Right hand (clockwise rotation) cutting direction. Standard two flute design. Normal spiral - helical flutes. Standard 118 °s; point angle. Standard morse taper shanks correspond to drill diameter. Flutes are proportional to length.
Right hand (clockwise rotation) cutting direction. Standard two flute design. Normal spiral - helical flutes. Standard 118 °s; point angle. Standard morse taper shanks correspond to drill diameter. Flutes are proportional to length.
Alternate Catalog Number 020059 Applicable Materials Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite Catalog Number 6001039 Cutting Depth 4XD Cutting Direction Right Hand Cutting Edge Material HSS Diameter 59/64 in Drill Dia Measurement System Imperial Finish Steam Oxide Flute Length 6-1/8 in Flute Type Spiral Gross Weight Per Pack 2.2000 lb Item Group 209 Letter|Wire Size 3 Number of Flutes 2 Overall Length 10-3/4 in Point Angle 118 ° Point Type Conventional Series 209 Standards ANSI Specified Through Coolant No Type General Purpose Standard Length UPC 11 86071200594 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Material HSS Shank Taper Designation #3 Morse Taper - Right hand (clockwise rotation) cutting direction.
- Standard two flute design.
- Normal spiral - helical flutes.
- Standard 118 °s; point angle.
- Standard morse taper shanks correspond to drill diameter.
- Flutes are proportional to length.
Features
Steam oxide for increased tool life and lubricity|HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications|A medium alloyed high speed steel that has good machinability and good performance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 020059 |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite |
| Catalog Number | 6001039 |
| Cutting Depth | 4XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Diameter | 59/64 in |
| Drill Dia Measurement System | Imperial |
| Finish | Steam Oxide |
| Flute Length | 6-1/8 in |
| Flute Type | Spiral |
| Gross Weight Per Pack | 2.2000 lb |
| Item Group | 209 |
| Letter|Wire Size | 3 |
| Number of Flutes | 2 |
| Overall Length | 10-3/4 in |
| Point Angle | 118 ° |
| Point Type | Conventional |
| Series | 209 |
| Standards | ANSI Specified |
| Through Coolant | No |
| Type | General Purpose Standard Length |
| UPC 11 | 86071200594 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Material | HSS |
| Shank Taper Designation | #3 Morse Taper |
Features |
| Steam oxide for increased tool life and lubricity|HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications|A medium alloyed high speed steel that has good machinability and good performance |
