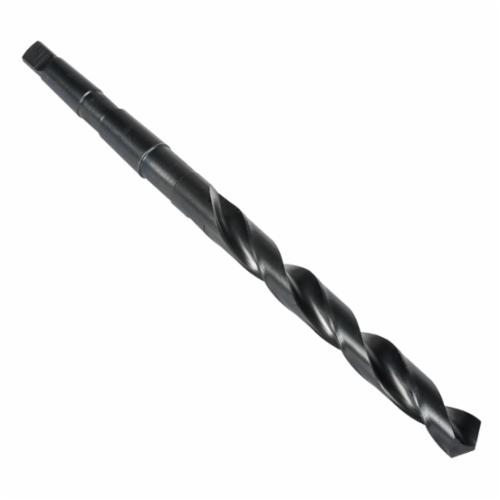

Precision Twist Drill 6001023 209 General Purpose Standard Length Taper Shank Drill Bit, 13/16 in Drill - Fraction, 0.8125 in Drill - Decimal Inch, #3 Morse Taper Shank Taper, HSS
Precision Twist Drill 6001023 209 General Purpose Standard Length Taper Shank Drill Bit, 13/16 in Drill - Fraction, 0.8125 in Drill - Decimal Inch, #3 Morse Taper Shank Taper, HSS
SKU843357
MFGR #6001023
Your Cost: $83.58/ea
List: Right hand (clockwise rotation) cutting direction. Standard two flute design. Normal spiral - helical flutes. Standard 118 °s; point angle. Standard morse taper shanks correspond to drill diameter. Flutes are proportional to length.
Right hand (clockwise rotation) cutting direction. Standard two flute design. Normal spiral - helical flutes. Standard 118 °s; point angle. Standard morse taper shanks correspond to drill diameter. Flutes are proportional to length.
Alternate Catalog Number 020052 Applicable Materials Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite Catalog Number 6001023 Cutting Depth 4XD Cutting Direction Right Hand Cutting Edge Material HSS Finish Steam Oxide Flute Type Spiral Gross Weight Per Pack 1.1000 lb Item Group 209 Number of Flutes 2 Point Angle 118 ° Point Type Conventional Series 209 Standards ANSI Specified Type General Purpose Standard Length UPC 11 86071200525 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Material HSS Shank Taper Designation #3 Morse Taper Diameter 13/16 in Drill Dia Measurement System Imperial Letter|Wire Size 3 Through Coolant No
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Alternate Catalog Number | 020052 |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite |
| Catalog Number | 6001023 |
| Cutting Depth | 4XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Finish | Steam Oxide |
| Flute Type | Spiral |
| Gross Weight Per Pack | 1.1000 lb |
| Item Group | 209 |
| Number of Flutes | 2 |
| Point Angle | 118 ° |
| Point Type | Conventional |
| Series | 209 |
| Standards | ANSI Specified |
| Type | General Purpose Standard Length |
| UPC 11 | 86071200525 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Material | HSS |
| Shank Taper Designation | #3 Morse Taper |
| Diameter | 13/16 in |
| Drill Dia Measurement System | Imperial |
| Letter|Wire Size | 3 |
| Through Coolant | No |
