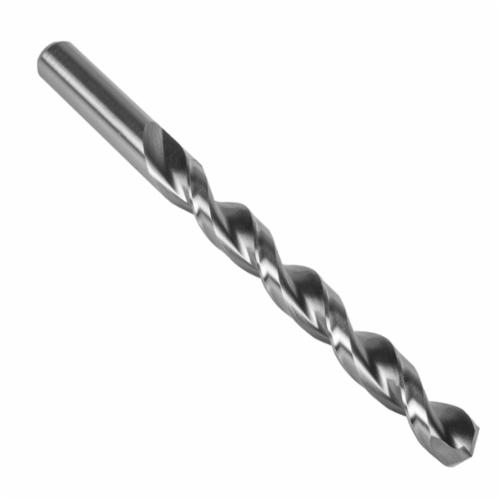

Precision Twist Drill 5996943 QC21PM General Purpose Heavy Duty Jobber Length Drill Bit, 9.5 mm Drill - Metric, 0.374 in Drill - Decimal Inch, 135 deg Point, HSS, Bright
Precision Twist Drill 5996943 QC21PM General Purpose Heavy Duty Jobber Length Drill Bit, 9.5 mm Drill - Metric, 0.374 in Drill - Decimal Inch, 135 deg Point, HSS, Bright
SKU1032614
MFGR #5996943
Your Cost: $17.39/ea
List: Precision Twist Drill Jobber Length Drill, General Purpose Heavy Duty, Series: QC21PM, Metric, 9.5 mm Dia, 125 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Wide Land Parabolic Flute, 81 mm Flute Length, 9.5 mm Shank, Straight Shank, 135 deg Point, Self-Centering/Split Point, Right Hand Cutting, HSS Cutting Edge, Through Coolant: No, HSS, Bright, Applicable Materials: Alloy Steel, Ferritic+Austenitic, Free Machining Stainless Steel, Hardened/Tempered Steel, Lamellar Graphite, Magnetic Soft Steel, Martensitic, Graphite/Malleable Cast Iron, Plain Carbon Steel and Structural Steel/Case Carburizing Steel
Precision Twist Drill Jobber Length Drill, General Purpose Heavy Duty, Series: QC21PM, Metric, 9.5 mm Dia, 125 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Wide Land Parabolic Flute, 81 mm Flute Length, 9.5 mm Shank, Straight Shank, 135 deg Point, Self-Centering/Split Point, Right Hand Cutting, HSS Cutting Edge, Through Coolant: No, HSS, Bright, Applicable Materials: Alloy Steel, Ferritic+Austenitic, Free Machining Stainless Steel, Hardened/Tempered Steel, Lamellar Graphite, Magnetic Soft Steel, Martensitic, Graphite/Malleable Cast Iron, Plain Carbon Steel and Structural Steel/Case Carburizing Steel
Alternate Catalog Number 013195 Applicable Materials Alloy Steel, Ferritic+Austenitic, Free Machining Stainless Steel, Hardened/Tempered Steel, Lamellar Graphite, Magnetic Soft Steel, Martensitic, Graphite/Malleable Cast Iron, Plain Carbon Steel and Structural Steel/Case Carburizing Steel Catalog Number 5996943 Country of Origin FR Cutting Depth 4XD Cutting Direction Right Hand Cutting Edge Material HSS Drill Diameter Measurement System Imperial/Metric Flute Length 81 mm Flute Type Wide Land Parabolic Gross Weight Per Pack 0.1000 lb Item Group QC21PM Number of Flutes 2 Overall Length 125 mm Point Type Self-Centering/Split Series QC21PM Shank Size 9.5 mm Shank Type Straight Standards ANSI Specified, DIN 338 Through Coolant [Yes|No] No Type General Purpose Heavy Duty UPC 11 86071131959 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Finish Bright Material HSS Point Angle 135 ° Parabolic flute design for efficient chip removal Allows greater drilling depths in one pass Low thrust design self-centering split point for easier penetration Bright finish improves chip flow in soft or non-ferrous materials
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 013195 |
| Applicable Materials | Alloy Steel, Ferritic+Austenitic, Free Machining Stainless Steel, Hardened/Tempered Steel, Lamellar Graphite, Magnetic Soft Steel, Martensitic, Graphite/Malleable Cast Iron, Plain Carbon Steel and Structural Steel/Case Carburizing Steel |
| Catalog Number | 5996943 |
| Country of Origin | FR |
| Cutting Depth | 4XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 81 mm |
| Flute Type | Wide Land Parabolic |
| Gross Weight Per Pack | 0.1000 lb |
| Item Group | QC21PM |
| Number of Flutes | 2 |
| Overall Length | 125 mm |
| Point Type | Self-Centering/Split |
| Series | QC21PM |
| Shank Size | 9.5 mm |
| Shank Type | Straight |
| Standards | ANSI Specified, DIN 338 |
| Through Coolant [Yes|No] | No |
| Type | General Purpose Heavy Duty |
| UPC 11 | 86071131959 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Finish | Bright |
| Material | HSS |
| Point Angle | 135 ° |
| Parabolic flute design for efficient chip removal |
| Allows greater drilling depths in one pass |
| Low thrust design self-centering split point for easier penetration |
| Bright finish improves chip flow in soft or non-ferrous materials |
