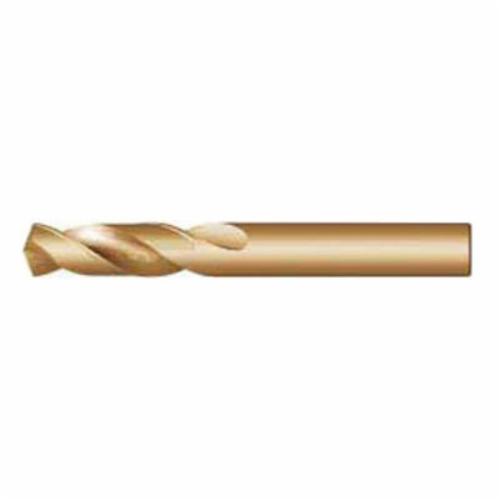

Precision Twist Drill 032330 4ASMCO 3.30 PTD SM DIN 135SP CO BRZ
SKU610902
MFGR #032330
Your Cost: $3.06/ea
List: PREC 032330 4ASMCO 3.30 SM DIN 135SP CO BRZ
PREC 032330 4ASMCO 3.30 SM DIN 135SP CO BRZ
Catalog Number 032330 Country of Origin BR Cutting Depth 2.5XD Cutting Direction Right Hand Cutting Edge Material HSS-E Drill Diameter Measurement System Imperial/Metric Flute Length 18 mm Flute Type Spiral Gross Weight Per Pack 0.0100 lb Number of Flutes 2 Overall Length 49 mm Point Angle 135 ° Point Type Self-Centering/Split Series 4ASMCO Shank Size 3.3 mm Shank Type Straight Standards DIN 1897 Type Heavy Duty UPC 11 08607132330 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Applicable Materials Steels With Low to High Resistance Finish Bronze Material HSS-E Low thrust design self-centering split point for easier penetration Cobalt base material with bronze oxide for wear resistance and lubricity
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 032330 |
| Country of Origin | BR |
| Cutting Depth | 2.5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS-E |
| Drill Diameter Measurement System | Imperial/Metric |
| Flute Length | 18 mm |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0100 lb |
| Number of Flutes | 2 |
| Overall Length | 49 mm |
| Point Angle | 135 ° |
| Point Type | Self-Centering/Split |
| Series | 4ASMCO |
| Shank Size | 3.3 mm |
| Shank Type | Straight |
| Standards | DIN 1897 |
| Type | Heavy Duty |
| UPC 11 | 08607132330 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Applicable Materials | Steels With Low to High Resistance |
| Finish | Bronze |
| Material | HSS-E |
| Low thrust design self-centering split point for easier penetration |
| Cobalt base material with bronze oxide for wear resistance and lubricity |
