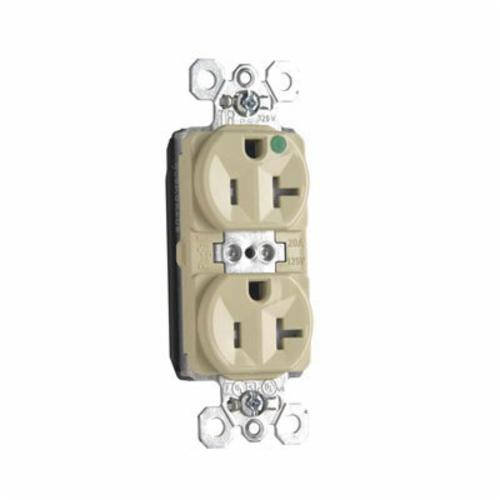

Pass & Seymour® PTTR8300-I Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Pass & Seymour® PTTR8300-I Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU1089250
MFGR #PTTR8300-I
Your Cost: $32.62/ea
Pass & Seymour® Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Back and Side Wired Terminal, Nylon, Ivory, 3.281 in H x 1.5 in W x 0.625 in D
Pass & Seymour® Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, NEMA 5-20R, Commercial Grade, -40 to 60 deg C, Back and Side Wired Terminal, Nylon, Ivory, 3.281 in H x 1.5 in W x 0.625 in D
Catalog Number PTTR8300-I Country of Origin MX Dimensions 1.5 in L x 0.625 in W x 3.281 in H Grade Commercial/Hospital Gross Weight Per Pack 0.2200 lb Material Nylon NEMA Rating NEMA 5-20R Number Of Poles 2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42cULus ListedUL94 V-2 Flammability RatingUL92 V-2 Flammability RatingECCN EAR99 Temperature Rating -40 to 60 °C Terminal Type Back/Side Wired Type Duplex Tamper-Resistant UNSPSC 39121406 UPC 11 78500701355 UPC 12 78500701355 Stock Status NONSTOCK Brand Pass & Seymour® Manufacturer Legrand Amperage Rating 20 A Color Ivory Number of Wires 3 Voltage Rating 125 VAC Dual mechanical shutter system to help prevent insertion of foreign objects. Plated steel wrap strap design for maximum durability and corrosion resistance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Three drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identi Dual mechanical shutter system to help prevent insertion of foreign objects Auto ground clip assures positive ground 0.036 in THK brass, triple wipe power contacts for lasting retention Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections Plated steel wrap strap design for maximum durability and corrosion-resistant Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL listed, finger safe housing No exposed terminals create a finger safe application before, during and after installation 3-drive screws anchor strap to back body and face Large brass contacts snugly terminate on device blade terminals Crimped and welded contacts Pre-stripped connector leads fasten to conductors, easier than standard pigtails Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current -40 to 60 deg C without impact continuous operating temperature Exclusive patented feature, circuit label on back allows permanent circuit identification Withstands 2000 VAC minimum dielectric voltage
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | PTTR8300-I |
| Country of Origin | MX |
| Dimensions | 1.5 in L x 0.625 in W x 3.281 in H |
| Grade | Commercial/Hospital |
| Gross Weight Per Pack | 0.2200 lb |
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42cULus ListedUL94 V-2 Flammability RatingUL92 V-2 Flammability RatingECCN EAR99 |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Back/Side Wired |
| Type | Duplex Tamper-Resistant |
| UNSPSC | 39121406 |
| UPC 11 | 78500701355 |
| UPC 12 | 78500701355 |
| Stock Status | NONSTOCK |
| Brand | Pass & Seymour® |
| Manufacturer | Legrand |
| Amperage Rating | 20 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 125 VAC |
| Dual mechanical shutter system to help prevent insertion of foreign objects. Plated steel wrap strap design for maximum durability and corrosion resistance. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Three drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections. Crimped and welded contacts. Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identi |
| Dual mechanical shutter system to help prevent insertion of foreign objects |
| Auto ground clip assures positive ground |
| 0.036 in THK brass, triple wipe power contacts for lasting retention |
| Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections |
| Plated steel wrap strap design for maximum durability and corrosion-resistant |
| Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL listed, finger safe housing |
| No exposed terminals create a finger safe application before, during and after installation |
| 3-drive screws anchor strap to back body and face |
| Large brass contacts snugly terminate on device blade terminals |
| Crimped and welded contacts |
| Pre-stripped connector leads fasten to conductors, easier than standard pigtails |
| Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current |
| -40 to 60 deg C without impact continuous operating temperature |
| Exclusive patented feature, circuit label on back allows permanent circuit identification |
| Withstands 2000 VAC minimum dielectric voltage |
