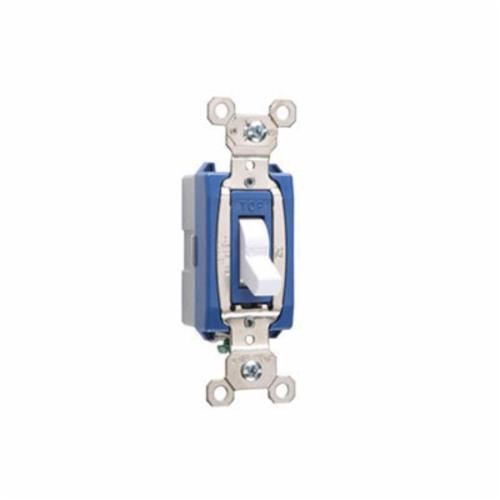

Pass & Seymour® PS15AC1-W Heavy Duty Toggle Switch, 120/277 VAC, 15 A, 1/2/2 hp
Custom_Product_Images_Illustration
Pass & Seymour® PS15AC1-W Heavy Duty Toggle Switch, 120/277 VAC, 15 A, 1/2/2 hp
SKU267332
MFGR #PS15AC1-W
Your Cost: $17.46/ea
Designed to withstand abuse and constant use in demanding applications, these durable switches virtually eliminate contact bounce and arcing. Exterior housing is made entirely of high performing chemical- and impact-resistant thermoplastics to withstand the abuse of industrial environments and harsh chemicals. Featuring auto-ground and external, screw-pressure plate back wiring on all terminals for fast, easy installation and excellent electrical connection. Oversize silver alloy contacts help ensure long life and better heat dissipation.
Designed to withstand abuse and constant use in demanding applications, these durable switches virtually eliminate contact bounce and arcing. Exterior housing is made entirely of high performing chemical- and impact-resistant thermoplastics to withstand the abuse of industrial environments and harsh chemicals. Featuring auto-ground and external, screw-pressure plate back wiring on all terminals for fast, easy installation and excellent electrical connection. Oversize silver alloy contacts help ensure long life and better heat dissipation.
Application Industrial Catalog Number PS15AC1-W Closed Contact Resistance Toggle Color White Contact Rating 15amp, 120/277vac Country of Origin MX Gross Weight Per Pack 0.2000 lb Insulation None Mounting Wall Number Of Poles 1 Size 3.3" Standard UL 20 Standards CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1, WD-6, RoHS Complaint, UL20 File No. E140597 Listed Sub Brand Pass & Seymour Type Switch UNSPSC 39122211 UPC 11 78500719653 UPC 12 78500719653 Wattage 1 W Stock Status NONSTOCK Brand Pass & Seymour® Manufacturer Legrand Amperage Rating 15 A Voltage Rating 120/277 V Industrial High strength toggle, heavy duty toggle bumpers, locking support One-piece plated steel strap for corrosion-resistance Heavy-duty bumpers for quiet, smooth operation Oversized silver-alloy contacts for long life and better heat dissipation Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce Shallow design for easier installation Glass-reinforced nylon back body for durability and strength Cam control and spring actuator for positive "makes and breaks" with a minimum of arcing Locking support provides resistance to face and back body separation Side and external screw-pressure plate back wire with NO 14 - 10 AWG copper or copper-clad wire Bare insulation Industrial EHD specification grade 1/2 hp at 120 VAC, 2 hp at 240 VAC Back and side wire connection UL 94-V2 Flammability
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| Catalog Number | PS15AC1-W |
| Closed Contact Resistance | Toggle |
| Color | White |
| Contact Rating | 15amp, 120/277vac |
| Country of Origin | MX |
| Gross Weight Per Pack | 0.2000 lb |
| Insulation | None |
| Mounting | Wall |
| Number Of Poles | 1 |
| Size | 3.3" |
| Standard | UL 20 |
| Standards | CSA C22.2 No. 111 Certified, cULus File No. LR17446 Listed, Federal Specification WS896, NEMA WD-1, WD-6, RoHS Complaint, UL20 File No. E140597 Listed |
| Sub Brand | Pass & Seymour |
| Type | Switch |
| UNSPSC | 39122211 |
| UPC 11 | 78500719653 |
| UPC 12 | 78500719653 |
| Wattage | 1 W |
| Stock Status | NONSTOCK |
| Brand | Pass & Seymour® |
| Manufacturer | Legrand |
| Amperage Rating | 15 A |
| Voltage Rating | 120/277 V |
| Industrial |
| High strength toggle, heavy duty toggle bumpers, locking support |
| One-piece plated steel strap for corrosion-resistance |
| Heavy-duty bumpers for quiet, smooth operation |
| Oversized silver-alloy contacts for long life and better heat dissipation |
| Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce |
| Shallow design for easier installation |
| Glass-reinforced nylon back body for durability and strength |
| Cam control and spring actuator for positive "makes and breaks" with a minimum of arcing |
| Locking support provides resistance to face and back body separation |
| Side and external screw-pressure plate back wire with NO 14 - 10 AWG copper or copper-clad wire |
| Bare insulation |
| Industrial EHD specification grade |
| 1/2 hp at 120 VAC, 2 hp at 240 VAC |
| Back and side wire connection |
| UL 94-V2 Flammability |
