Pass & Seymour®

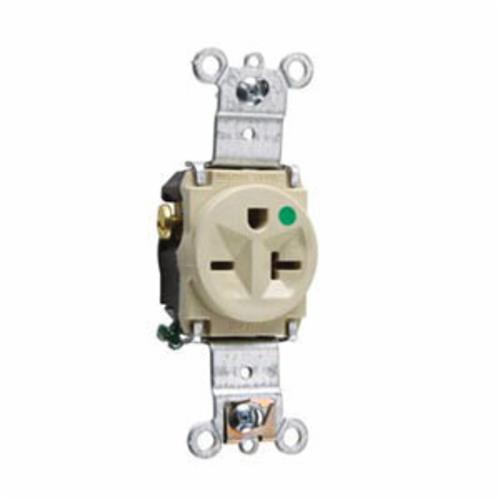

Pass & Seymour® 8801-I Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Custom_Product_Images_Illustration
Pass & Seymour®
Pass & Seymour® 8801-I Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU763699
MFGR #8801-I
Your Cost: $40.12/ea
Pass & Seymour® Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, NEMA 6-20R, Commercial Grade, -40 to 60 deg C, Back and Side Wired Terminal, Nylon, Ivory, 3.68 in H x 1.32 in W x 1.093 in D
Pass & Seymour® Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, NEMA 6-20R, Commercial Grade, -40 to 60 deg C, Back and Side Wired Terminal, Nylon, Ivory, 3.68 in H x 1.32 in W x 1.093 in D
Application Commercial Catalog Number 8801-I Connection Back and side wire Country of Origin MX Dielectric Strength Withstands 2000V minimum Environmental Conditions Flammability: UL94 V2 Gross Weight Per Pack 0.1700 lb Material Nylon Mounting Wall NEMA Rating 6-20R Number Of Poles 2 Size 1.32 L x 1.093 W x 3.68 H in Standard UL498, cUL/CSA C22.2 No. 42 Standards cULus, UL498 Listed, CSA C22.2 NO 42, RoHS Complaint Sub Brand Pass & Seymour Temperature Rating Temperature Rise: Maximum 30° C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60° C, minimum -40° C without impact °C Type Hospital Grade Single Receptacle, Heavy-Duty UNSPSC 39121406 UPC 11 78500788042 UPC 12 78500788042 Wire Size #14 - #10 AWG Stock Status NONSTOCK Brand Pass & Seymour® Manufacturer Legrand Amperage Rating 20 A Color Ivory Number of Wires 3 Voltage Rating 250 V Commercial Heavy-duty, zinc-plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Impact-resistant nylon face and thermoplastic back body. Internal screw-pressure-plate back wire capable of accepting #14 ? #10 AWG solid or stranded copper or copper-clad wire. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground. Wall mounting Corrosion resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly One piece brass triple wire power contacts for lasting retention Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring Impact resistant nylon face and thermoplastic back body Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire Terminal compartments isolated from each other for positive conductor containment Tri-drive terminal and mounting screws Auto-ground clip assures positive ground Dielectric strength withstands 2000V Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current temperature rise Wattage of electrical power is expressed in Amps and Volts Heavy duty Hospital grade -40 to 60 deg C without impact continuous operating temperature UL 94 V-2 flammability rating 14 - 10 AWG
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial |
| Catalog Number | 8801-I |
| Connection | Back and side wire |
| Country of Origin | MX |
| Dielectric Strength | Withstands 2000V minimum |
| Environmental Conditions | Flammability: UL94 V2 |
| Gross Weight Per Pack | 0.1700 lb |
| Material | Nylon |
| Mounting | Wall |
| NEMA Rating | 6-20R |
| Number Of Poles | 2 |
| Size | 1.32 L x 1.093 W x 3.68 H in |
| Standard | UL498, cUL/CSA C22.2 No. 42 |
| Standards | cULus, UL498 Listed, CSA C22.2 NO 42, RoHS Complaint |
| Sub Brand | Pass & Seymour |
| Temperature Rating | Temperature Rise: Maximum 30° C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60° C, minimum -40° C without impact °C |
| Type | Hospital Grade Single Receptacle, Heavy-Duty |
| UNSPSC | 39121406 |
| UPC 11 | 78500788042 |
| UPC 12 | 78500788042 |
| Wire Size | #14 - #10 AWG |
| Stock Status | NONSTOCK |
| Brand | Pass & Seymour® |
| Manufacturer | Legrand |
| Amperage Rating | 20 A |
| Color | Ivory |
| Number of Wires | 3 |
| Voltage Rating | 250 V |
| Commercial |
| Heavy-duty, zinc-plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Impact-resistant nylon face and thermoplastic back body. Internal screw-pressure-plate back wire capable of accepting #14 ? #10 AWG solid or stranded copper or copper-clad wire. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground. |
| Wall mounting |
| Corrosion resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly |
| One piece brass triple wire power contacts for lasting retention |
| Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring |
| Impact resistant nylon face and thermoplastic back body |
| Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire |
| Terminal compartments isolated from each other for positive conductor containment |
| Tri-drive terminal and mounting screws |
| Auto-ground clip assures positive ground |
| Dielectric strength withstands 2000V |
| Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current temperature rise |
| Wattage of electrical power is expressed in Amps and Volts |
| Heavy duty |
| Hospital grade |
| -40 to 60 deg C without impact continuous operating temperature |
| UL 94 V-2 flammability rating |
| 14 - 10 AWG |
