Pass & Seymour®

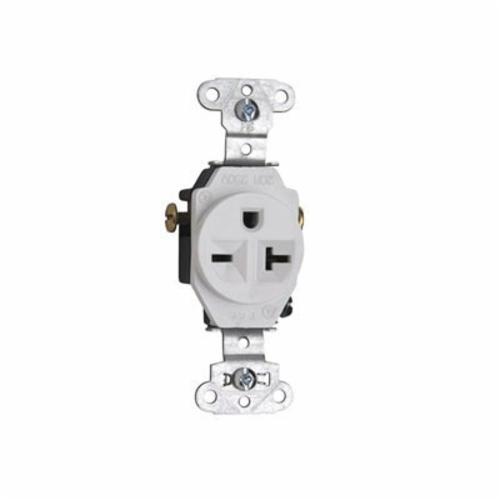

Pass & Seymour® 5851-W Straight Blade Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Pass & Seymour®
Pass & Seymour® 5851-W Straight Blade Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, White
SKU592320
MFGR #5851-W
Your Cost: $11.41/ea
Pass & Seymour® Straight Blade Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, NEMA 6-20R, Commercial Grade, -40 to 60 deg C, Back and Side Wired Terminal, Thermoplastic, White, 3.68 in H x 1.32 in W x 1.08 in D
Pass & Seymour® Straight Blade Single Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, NEMA 6-20R, Commercial Grade, -40 to 60 deg C, Back and Side Wired Terminal, Thermoplastic, White, 3.68 in H x 1.32 in W x 1.08 in D
Catalog Number 5851-W Country of Origin MX Dimensions 3.3 in H x 1.32 in W x 1.08 in D Grade Commercial/Residential/Specification Gross Weight Per Pack 0.1600 lb Material Thermoplastic NEMA Rating NEMA 6-20R Number Of Poles 2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42 Temperature Rating -40 to 60 °C Terminal Type Back/Side Wired Type Grounding Heavy Duty Single UNSPSC 39121406 UPC 11 78500758512 UPC 12 78500758512 Stock Status NONSTOCK Brand Pass & Seymour® Manufacturer Legrand Amperage Rating 20 A Color White Number of Wires 3 Voltage Rating 250 VAC Auto ground clip, back & side wire, zinc steel strap Auto-ground clip assures positive ground 1-piece, brass, triple wipe power contacts for lasting retention 2 drive screws anchor strap to back body and face where abrupt removal torque is greatest Corrosion resistant zinc plated steel strap for added strength Backed-out tri-drive brass terminal screws for faster installation Internal screw pressure plate back and side wire capability Withstands minimum 2000 VAC dielectric voltage Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current Wattage of electrical power is expressed in amperage and voltage Wall mounting 4 AWG wire size UL 94-V2 flammability rating Zinc steel strap 4 AWG
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 5851-W |
| Country of Origin | MX |
| Dimensions | 3.3 in H x 1.32 in W x 1.08 in D |
| Grade | Commercial/Residential/Specification |
| Gross Weight Per Pack | 0.1600 lb |
| Material | Thermoplastic |
| NEMA Rating | NEMA 6-20R |
| Number Of Poles | 2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 498CSA C22.2 No. 42 |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Back/Side Wired |
| Type | Grounding Heavy Duty Single |
| UNSPSC | 39121406 |
| UPC 11 | 78500758512 |
| UPC 12 | 78500758512 |
| Stock Status | NONSTOCK |
| Brand | Pass & Seymour® |
| Manufacturer | Legrand |
| Amperage Rating | 20 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 250 VAC |
| Auto ground clip, back & side wire, zinc steel strap |
| Auto-ground clip assures positive ground |
| 1-piece, brass, triple wipe power contacts for lasting retention |
| 2 drive screws anchor strap to back body and face where abrupt removal torque is greatest |
| Corrosion resistant zinc plated steel strap for added strength |
| Backed-out tri-drive brass terminal screws for faster installation |
| Internal screw pressure plate back and side wire capability |
| Withstands minimum 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current |
| Wattage of electrical power is expressed in amperage and voltage |
| Wall mounting |
| 4 AWG wire size |
| UL 94-V2 flammability rating |
| Zinc steel strap |
| 4 AWG |
