Panduit®

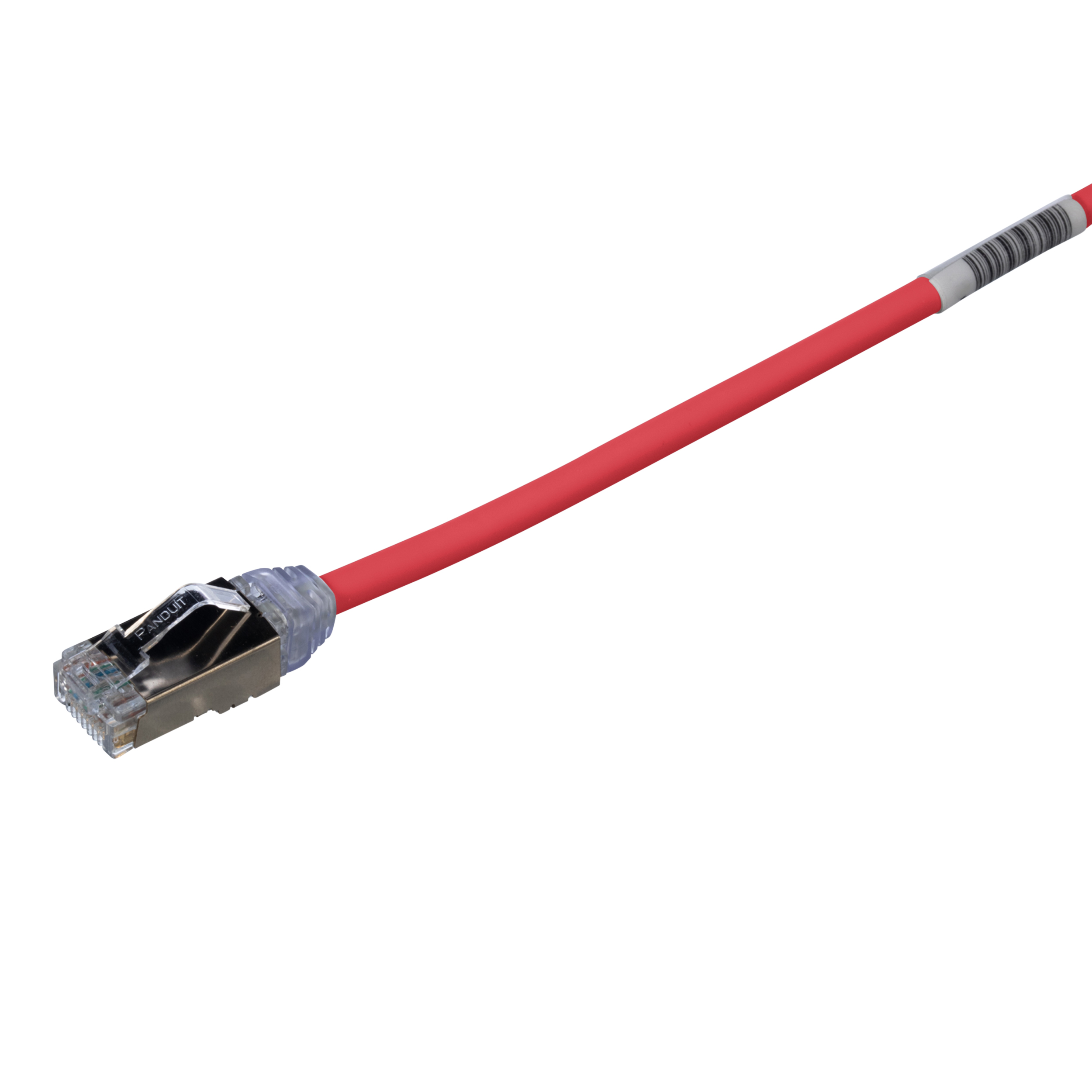

Panduit® TX6A-28™ STP28X1MRD Class EA Patch Cord, Cat 6a 28 AWG F/UTP Shielded Solid Copper Conductor, 1 m L Cord, Red
Custom_Product_Images_Illustration
Panduit®
Panduit® TX6A-28™ STP28X1MRD Class EA Patch Cord, Cat 6a 28 AWG F/UTP Shielded Solid Copper Conductor, 1 m L Cord, Red
SKU931698
MFGR #STP28X1MRD
Your Cost: $23.73/ea
Category 6A/Class EA, F/UTP, small diameter patch cords are constructed of 28 AWG, shielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Category 6A/Class EA, F/UTP, small diameter patch cords are constructed of 28 AWG, shielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Application (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. ARRA Compliant Y Boot Type Modular Plug Buy American Compliant Y Catalog Number STP28X1MRD Conductor Material Copper Country of Origin MUL Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0950 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Height 1.50 in Height [Metric] 3.8100 cm Jacket Color Red Jacket Material High-Density Polyethylene Length 11.00 in Length [Metric] 27.9400 cm Outside Diameter 0.19 in Plug Type Modular Plug Returnable Y Series STP28X Sub Brand Pan-Net?® Temperature Rating 167 ?°F Type Patch Cord UNSPSC 43223303 UPC 11 07498300324 UPC 12 07498300324 Width 9.00 in Width [Metric] 22.8600 cm Wire Size 28 Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Category Type Cat 6A Color Red Conductor Size 28 AWG Conductor Type F/UTP Solid Copper Connector Type RJ45 Modular Plug Cord Length 3.28 ft (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. 100% performance tested for wire map, next and return loss Centered de-embedded plug Patented tangle free latch Smaller diameter, flexible cable design Robust construction 0.19 in OD Plug contact plated with 50 microinches of gold and rated to 2500 mating cycles Meets individual length and color-coding requirements for greater system flexibility Plug lock-in and latch guard devices to prevent unauthorized or unintended removal of patch cords 0.185 in outside diameter RJ45 8(8) number of conductors All cords support PoE, PoE+, and PoE++ 1.9 de-rating factor UL94V-0 rated clear Polycarbonate plug housing 0.027 sq-in cable cross sectional area 0.74 in bend radius T568B wiring scheme -40 to 158 deg F storage temperature CM/LSZH dual rated flammability rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| ARRA Compliant | Y |
| Boot Type | Modular Plug |
| Buy American Compliant | Y |
| Catalog Number | STP28X1MRD |
| Conductor Material | Copper |
| Country of Origin | MUL |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0950 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Jacket Color | Red |
| Jacket Material | High-Density Polyethylene |
| Length | 11.00 in |
| Length [Metric] | 27.9400 cm |
| Outside Diameter | 0.19 in |
| Plug Type | Modular Plug |
| Returnable | Y |
| Series | STP28X |
| Sub Brand | Pan-Net?® |
| Temperature Rating | 167 ?°F |
| Type | Patch Cord |
| UNSPSC | 43223303 |
| UPC 11 | 07498300324 |
| UPC 12 | 07498300324 |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Wire Size | 28 |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Category Type | Cat 6A |
| Color | Red |
| Conductor Size | 28 AWG |
| Conductor Type | F/UTP Solid Copper |
| Connector Type | RJ45 Modular Plug |
| Cord Length | 3.28 ft |
| (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| 100% performance tested for wire map, next and return loss |
| Centered de-embedded plug |
| Patented tangle free latch |
| Smaller diameter, flexible cable design |
| Robust construction |
| 0.19 in OD |
| Plug contact plated with 50 microinches of gold and rated to 2500 mating cycles |
| Meets individual length and color-coding requirements for greater system flexibility |
| Plug lock-in and latch guard devices to prevent unauthorized or unintended removal of patch cords |
| 0.185 in outside diameter |
| RJ45 8(8) number of conductors |
| All cords support PoE, PoE+, and PoE++ |
| 1.9 de-rating factor |
| UL94V-0 rated clear Polycarbonate plug housing |
| 0.027 sq-in cable cross sectional area |
| 0.74 in bend radius |
| T568B wiring scheme |
| -40 to 158 deg F storage temperature |
| CM/LSZH dual rated flammability rating |
