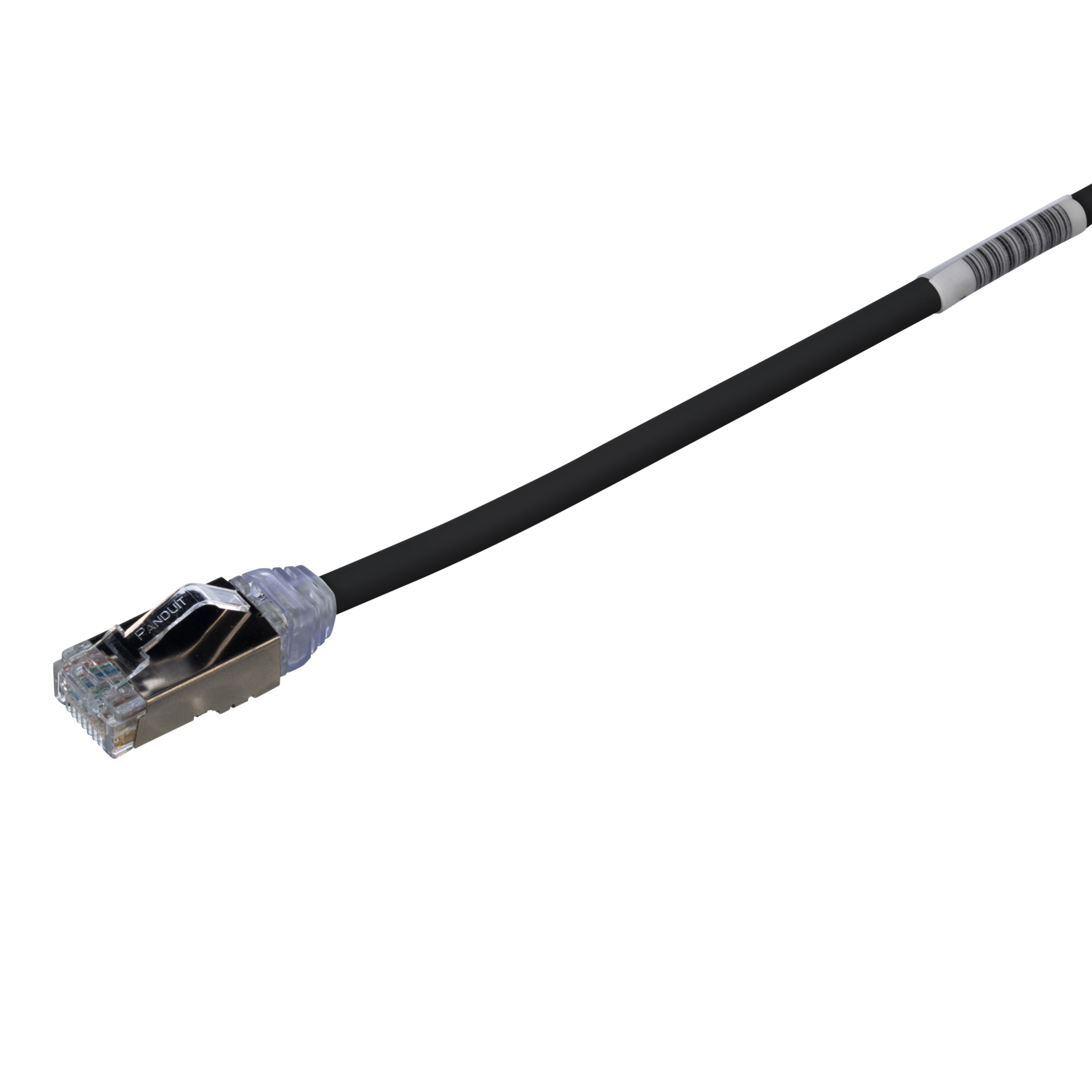

Panduit® TX6A-28™ STP28X1MBL Class EA Patch Cord, Cat 6a 28 AWG F/UTP Shielded Solid Copper Conductor, 1 m L Cord, Black
Custom_Product_Images_Illustration
Panduit® TX6A-28™ STP28X1MBL Class EA Patch Cord, Cat 6a 28 AWG F/UTP Shielded Solid Copper Conductor, 1 m L Cord, Black
SKU931696
MFGR #STP28X1MBL
Your Cost: $23.73/ea
Category 6A/Class EA, F/UTP, small diameter patch cords are constructed of 28 AWG, shielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Category 6A/Class EA, F/UTP, small diameter patch cords are constructed of 28 AWG, shielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Application (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. ARRA Compliant Y Boot Type Modular Plug Buy American Compliant Y Catalog Number STP28X1MBL Conductor Material Copper Country of Origin MUL Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0950 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Height 1.50 in Height [Metric] 3.8100 cm Jacket Material High-Density Polyethylene Length 11.00 in Length [Metric] 27.9400 cm Outside Diameter 0.19 in Plug Type Modular Plug Returnable Y Series STP28X Sub Brand Pan-Net?® Temperature Rating 167 ?°F Type Patch Cord UNSPSC 43223303 UPC 11 07498300317 UPC 12 074983003174 Width 9.00 in Width [Metric] 22.8600 cm Wire Size 28 Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Category Type Cat 6A Color Black Conductor Size 28 Conductor Type F/UTP Shielded Solid Copper Connector Type RJ45 Modular Plug Cord Length 1 (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. Tight bend radius enables improved cable routing and management in high density applications. Smaller cable diameter allows about 70% more cords to be routed through cable managers and pathways compared to traditional Category 6A shielded patch cords Meets all Category 6A requirements (including alien crosstalk), with a cable diameter smaller than traditional Category 5e, 6 and 6A shielded patch cords Confidence that each patch cord delivers critical electrical componentlevel performance Optimizes performance and consistency by reducing untwist at plug Prevents snags and provides easy release, saving time on frequent moves, adds, and changes Provides identification of performance level, length, and quality control number for traceability Plug contact plated with 50 microinches of gold and rated to 2500 mating cycles Meets individual length and color-coding requirements for greater system flexibility Plug lock-in and latch guard devices to prevent unauthorized or unintended removal of patch cords 0.185 in outside diameter RJ45 8(8) number of conductors All cords support PoE, PoE+, and PoE++ 1.9 de-rating factor UL94V-0 rated clear Polycarbonate plug housing 0.027 sq-in cable cross sectional area 0.74 in bend radius T568B wiring scheme -40 to 158 deg F storage temperature CM/LSZH dual rated flammability rating
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| ARRA Compliant | Y |
| Boot Type | Modular Plug |
| Buy American Compliant | Y |
| Catalog Number | STP28X1MBL |
| Conductor Material | Copper |
| Country of Origin | MUL |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0950 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Jacket Material | High-Density Polyethylene |
| Length | 11.00 in |
| Length [Metric] | 27.9400 cm |
| Outside Diameter | 0.19 in |
| Plug Type | Modular Plug |
| Returnable | Y |
| Series | STP28X |
| Sub Brand | Pan-Net?® |
| Temperature Rating | 167 ?°F |
| Type | Patch Cord |
| UNSPSC | 43223303 |
| UPC 11 | 07498300317 |
| UPC 12 | 074983003174 |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Wire Size | 28 |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Category Type | Cat 6A |
| Color | Black |
| Conductor Size | 28 |
| Conductor Type | F/UTP Shielded Solid Copper |
| Connector Type | RJ45 Modular Plug |
| Cord Length | 1 |
| (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| Tight bend radius enables improved cable routing and management in high density applications. Smaller cable diameter allows about 70% more cords to be routed through cable managers and pathways compared to traditional Category 6A shielded patch cords |
| Meets all Category 6A requirements (including alien crosstalk), with a cable diameter smaller than traditional Category 5e, 6 and 6A shielded patch cords |
| Confidence that each patch cord delivers critical electrical componentlevel performance |
| Optimizes performance and consistency by reducing untwist at plug |
| Prevents snags and provides easy release, saving time on frequent moves, adds, and changes |
| Provides identification of performance level, length, and quality control number for traceability |
| Plug contact plated with 50 microinches of gold and rated to 2500 mating cycles |
| Meets individual length and color-coding requirements for greater system flexibility |
| Plug lock-in and latch guard devices to prevent unauthorized or unintended removal of patch cords |
| 0.185 in outside diameter |
| RJ45 8(8) number of conductors |
| All cords support PoE, PoE+, and PoE++ |
| 1.9 de-rating factor |
| UL94V-0 rated clear Polycarbonate plug housing |
| 0.027 sq-in cable cross sectional area |
| 0.74 in bend radius |
| T568B wiring scheme |
| -40 to 158 deg F storage temperature |
| CM/LSZH dual rated flammability rating |
