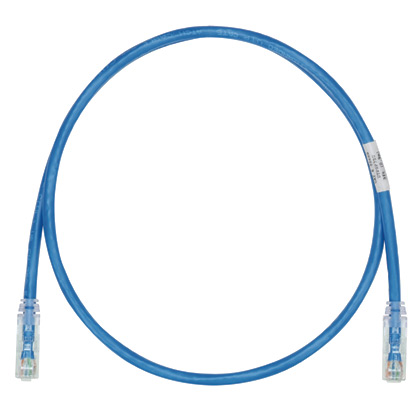

Panduit® TX6™ PLUS UTPSP8BUY Patch Cord, Cat 6 24 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector, 8 ft L Cord
Custom_Product_Images_Illustration
Panduit® TX6™ PLUS UTPSP8BUY Patch Cord, Cat 6 24 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector, 8 ft L Cord
SKU928255
MFGR #UTPSP8BUY
Your Cost: $18.18/ea
List: Panduit® TX6™ PLUS Patch Cord, Category: Cat 6, 24 AWG Conductor, U/UTP Copper Conductor, RJ45 Modular Plug Connector, 4 Strands, 8 ft Cord, Low Smoke Zero Halogen, Blue, 14 to 140 deg F
Panduit® TX6™ PLUS Patch Cord, Category: Cat 6, 24 AWG Conductor, U/UTP Copper Conductor, RJ45 Modular Plug Connector, 4 Strands, 8 ft Cord, Low Smoke Zero Halogen, Blue, 14 to 140 deg F
ARRA Compliant Y Boot Type Modular Plug Buy American Compliant Y Catalog Number UTPSP8BUY Conductor Material Copper Country of Origin MUL Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.2630 lb Gross Weight per Pack Metric 0.12 Gross Weight UOM Metric kg Height 0.85 in Height [Metric] 2.1590 cm Jacket Material Polyvinyl Chloride Length 9.35 in Length [Metric] 23.7490 cm Outside Diameter 0.235 in Plug Type Modular Plug Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/TIA-1096-AISO 11801 Class EAIEEE 802.3afIEEE 802.3atIEEE 802.3bt Type 3 and Type 4 for PoE ComplianceUL 1863IEC 60603-7CE MarkedCM Flammability Rating Sub Brand Pan-Net?® Temperature Rating 140 ?°F Type Patch Cord UNSPSC 43223303 UPC 11 07498317141 UPC 12 07498317141 Width 9.00 in Width [Metric] 22.8600 cm Wire Size 24 Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Blue (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digit Patented tangle free latch prevents snags and provides easy release, saving time on frequent moves, adds and changes 100% performance tested for wire map, NEXT and return loss Centered de-embedded plug performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance Integral pair manager optimizes performance and consistency by reducing untwist at plug Slender strain relief boot provides easy access in high density applications Flexible stranded cable with 0.235 in Dia nominal allows for high density installations and superior panel cable management Provides identification of performance level, length and quality control number for future traceability Robust construction 0.235 in Dia nominal cable Contacts plated with 50 micro inches of gold for superior performance and rated to 2500 mating cycles
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| ARRA Compliant | Y |
| Boot Type | Modular Plug |
| Buy American Compliant | Y |
| Catalog Number | UTPSP8BUY |
| Conductor Material | Copper |
| Country of Origin | MUL |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.2630 lb |
| Gross Weight per Pack Metric | 0.12 |
| Gross Weight UOM Metric | kg |
| Height | 0.85 in |
| Height [Metric] | 2.1590 cm |
| Jacket Material | Polyvinyl Chloride |
| Length | 9.35 in |
| Length [Metric] | 23.7490 cm |
| Outside Diameter | 0.235 in |
| Plug Type | Modular Plug |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/TIA-1096-AISO 11801 Class EAIEEE 802.3afIEEE 802.3atIEEE 802.3bt Type 3 and Type 4 for PoE ComplianceUL 1863IEC 60603-7CE MarkedCM Flammability Rating |
| Sub Brand | Pan-Net?® |
| Temperature Rating | 140 ?°F |
| Type | Patch Cord |
| UNSPSC | 43223303 |
| UPC 11 | 07498317141 |
| UPC 12 | 07498317141 |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Wire Size | 24 |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Blue |
| (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digit |
| Patented tangle free latch prevents snags and provides easy release, saving time on frequent moves, adds and changes |
| 100% performance tested for wire map, NEXT and return loss |
| Centered de-embedded plug performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance |
| Integral pair manager optimizes performance and consistency by reducing untwist at plug |
| Slender strain relief boot provides easy access in high density applications |
| Flexible stranded cable with 0.235 in Dia nominal allows for high density installations and superior panel cable management |
| Provides identification of performance level, length and quality control number for future traceability |
| Robust construction |
| 0.235 in Dia nominal cable |
| Contacts plated with 50 micro inches of gold for superior performance and rated to 2500 mating cycles |
