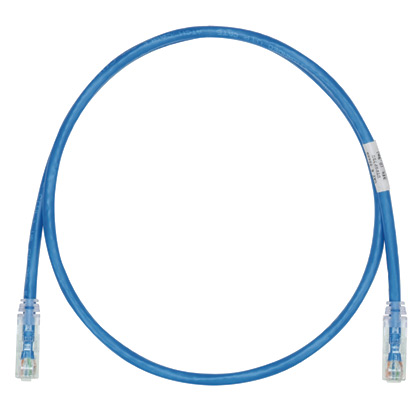

Panduit® TX6™ PLUS UTPSP2BUY Patch Cord, Cat 6 24 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector, 2 ft L Cord
Custom_Product_Images_Illustration
Panduit® TX6™ PLUS UTPSP2BUY Patch Cord, Cat 6 24 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector, 2 ft L Cord
SKU903937
MFGR #UTPSP2BUY
Your Cost: $14.06/ea
List: Panduit® TX6™ PLUS Patch Cord, Category: Cat 6, 24 AWG Conductor, U/UTP Copper Conductor, RJ45 Modular Plug Connector, 4 Strands, 2 ft Cord, Low Smoke Zero Halogen, Blue, 14 to 140 deg F
Panduit® TX6™ PLUS Patch Cord, Category: Cat 6, 24 AWG Conductor, U/UTP Copper Conductor, RJ45 Modular Plug Connector, 4 Strands, 2 ft Cord, Low Smoke Zero Halogen, Blue, 14 to 140 deg F
ARRA Compliant Y Boot Type Modular Plug Buy American Compliant Y Catalog Number UTPSP2BUY Conductor Material Copper Country of Origin MUL Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.1030 lb Gross Weight per Pack Metric 0.05 Gross Weight UOM Metric kg Height 0.65 in Height [Metric] 1.6510 cm Jacket Color Blue Jacket Material Polyvinyl Chloride Length 7.95 in Length [Metric] 20.1930 cm Outside Diameter 0.235 in Plug Type Modular Plug Returnable Y Series UTPSP Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/TIA-1096-AISO 11801 Class EAIEEE 802.3afIEEE 802.3atIEEE 802.3bt Type 3 and Type 4 for PoE ComplianceUL 1863IEC 60603-7CE MarkedCM Flammability Rating Sub Brand Pan-Net® Temperature Rating 140 ?°F Type Patch Cord UNSPSC 43223303 UPC 11 07498317021 UPC 12 07498317021 Width 6.00 in Width [Metric] 15.2400 cm Wire Size 24 Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Category Type Cat 6 Color Blue Conductor Size 24 AWG Conductor Type Stranded Copper Connector Type RJ45 Cord Length 2 ft (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digit 100% performance tested for wire map, NEXT and return loss Centered de-embedded plug Integral pair manager Patented tangle free latch Slender strain relief boot Robust construction Provides identification of performance level, length and quality control number for future traceability Robust construction 0.235 in Dia nominal cable Contacts plated with 50 micro inches of gold for superior performance and rated to 2500 mating cycles
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| ARRA Compliant | Y |
| Boot Type | Modular Plug |
| Buy American Compliant | Y |
| Catalog Number | UTPSP2BUY |
| Conductor Material | Copper |
| Country of Origin | MUL |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.1030 lb |
| Gross Weight per Pack Metric | 0.05 |
| Gross Weight UOM Metric | kg |
| Height | 0.65 in |
| Height [Metric] | 1.6510 cm |
| Jacket Color | Blue |
| Jacket Material | Polyvinyl Chloride |
| Length | 7.95 in |
| Length [Metric] | 20.1930 cm |
| Outside Diameter | 0.235 in |
| Plug Type | Modular Plug |
| Returnable | Y |
| Series | UTPSP |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/TIA-1096-AISO 11801 Class EAIEEE 802.3afIEEE 802.3atIEEE 802.3bt Type 3 and Type 4 for PoE ComplianceUL 1863IEC 60603-7CE MarkedCM Flammability Rating |
| Sub Brand | Pan-Net® |
| Temperature Rating | 140 ?°F |
| Type | Patch Cord |
| UNSPSC | 43223303 |
| UPC 11 | 07498317021 |
| UPC 12 | 07498317021 |
| Width | 6.00 in |
| Width [Metric] | 15.2400 cm |
| Wire Size | 24 |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Category Type | Cat 6 |
| Color | Blue |
| Conductor Size | 24 AWG |
| Conductor Type | Stranded Copper |
| Connector Type | RJ45 |
| Cord Length | 2 ft |
| (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digit |
| 100% performance tested for wire map, NEXT and return loss |
| Centered de-embedded plug |
| Integral pair manager |
| Patented tangle free latch |
| Slender strain relief boot |
| Robust construction |
| Provides identification of performance level, length and quality control number for future traceability |
| Robust construction |
| 0.235 in Dia nominal cable |
| Contacts plated with 50 micro inches of gold for superior performance and rated to 2500 mating cycles |
