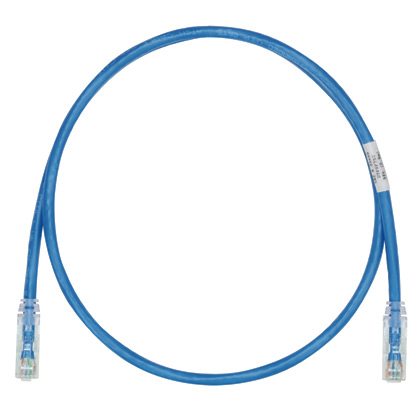

Panduit® TX6-28™ UTP28SP3BU Small Diameter Patch Cord, Cat 6 28 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector
Custom_Product_Images_Illustration
Panduit® TX6-28™ UTP28SP3BU Small Diameter Patch Cord, Cat 6 28 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector
SKU931731
MFGR #UTP28SP3BU
Your Cost: $14.47/ea
List: Panduit® TX6-28™ Patch Cord, Small Diameter, Category: Cat 6, 28 AWG Conductor, U/UTP Copper Conductor, RJ45 Modular Plug Connector, 4 Strands, 3 ft Cord, Low Smoke Zero Halogen, Blue, 14 to 140 deg F
Panduit® TX6-28™ Patch Cord, Small Diameter, Category: Cat 6, 28 AWG Conductor, U/UTP Copper Conductor, RJ45 Modular Plug Connector, 4 Strands, 3 ft Cord, Low Smoke Zero Halogen, Blue, 14 to 140 deg F
Application (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2 ) 155 Mb/s ATM, 622 Mb/s ATM (3) Digital video and broadband/baseband analog video (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) ARRA Compliant Y Boot Type Modular Plug Buy American Compliant Y Catalog Number UTP28SP3BU Conductor Material Copper Country of Origin MUL Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0900 lb Gross Weight per Pack Metric 0.04 Gross Weight UOM Metric kg Height 0.70 in Height [Metric] 1.7780 cm Jacket Material Polyvinyl Chloride Length 6.85 in Length [Metric] 17.3990 cm Outside Diameter 0.15 in Plug Type Modular Plug Returnable Y Standard Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 Sub Brand Pan-Net?® Temperature Rating 167 ?°F Type Patch Cord UNSPSC 43223303 UPC 11 07498365197 UPC 12 07498365197 Width 6.10 in Width [Metric] 15.4940 cm Wire Size 28 Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Category Type CAT 6 Color Blue Conductor Size 28 Conductor Type Copper Connector Type Modular Plug Cord Length 3 (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2 ) 155 Mb/s ATM, 622 Mb/s ATM (3) Digital video and broadband/baseband analog video (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) 100% performance tested for wire map, NEXT and return loss 100% performance tested for wire map, NEXT and return loss Integral pair manager optimizes performance and consistency by reducing untwist at plug Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes Flexible stranded cable with 0.15 in Dia nominal allows for high density installations and superior panel cable management Robust construction plug contact plated with 50 u-in of gold and rated to 2500 mating cycles Identification label provides identification of performance level, length and quality control number for traceability Gold plated phosphor bronze Contacts plated with 50 micro inches of gold for superior performance and rated to 2500 mating cycles UL94V-0 rated clear polycarbonate plug housing CM/LSZH dual rated
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2 ) 155 Mb/s ATM, 622 Mb/s ATM (3) Digital video and broadband/baseband analog video (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| ARRA Compliant | Y |
| Boot Type | Modular Plug |
| Buy American Compliant | Y |
| Catalog Number | UTP28SP3BU |
| Conductor Material | Copper |
| Country of Origin | MUL |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0900 lb |
| Gross Weight per Pack Metric | 0.04 |
| Gross Weight UOM Metric | kg |
| Height | 0.70 in |
| Height [Metric] | 1.7780 cm |
| Jacket Material | Polyvinyl Chloride |
| Length | 6.85 in |
| Length [Metric] | 17.3990 cm |
| Outside Diameter | 0.15 in |
| Plug Type | Modular Plug |
| Returnable | Y |
| Standard | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 |
| Sub Brand | Pan-Net?® |
| Temperature Rating | 167 ?°F |
| Type | Patch Cord |
| UNSPSC | 43223303 |
| UPC 11 | 07498365197 |
| UPC 12 | 07498365197 |
| Width | 6.10 in |
| Width [Metric] | 15.4940 cm |
| Wire Size | 28 |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Category Type | CAT 6 |
| Color | Blue |
| Conductor Size | 28 |
| Conductor Type | Copper |
| Connector Type | Modular Plug |
| Cord Length | 3 |
| (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2 ) 155 Mb/s ATM, 622 Mb/s ATM (3) Digital video and broadband/baseband analog video (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| 100% performance tested for wire map, NEXT and return loss |
| 100% performance tested for wire map, NEXT and return loss |
| Integral pair manager optimizes performance and consistency by reducing untwist at plug |
| Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes |
| Flexible stranded cable with 0.15 in Dia nominal allows for high density installations and superior panel cable management |
| Robust construction plug contact plated with 50 u-in of gold and rated to 2500 mating cycles |
| Identification label provides identification of performance level, length and quality control number for traceability |
| Gold plated phosphor bronze |
| Contacts plated with 50 micro inches of gold for superior performance and rated to 2500 mating cycles |
| UL94V-0 rated clear polycarbonate plug housing |
| CM/LSZH dual rated |
