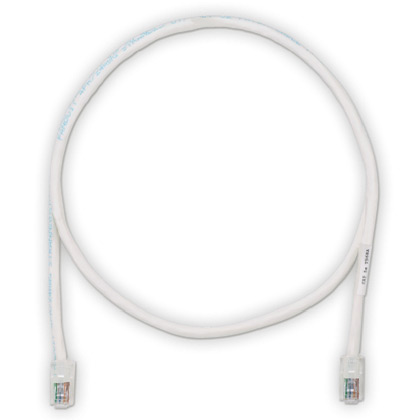

Panduit® PanNet® TX5e™ UTPCH6Y Patch Cord, Cat 5e 24 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector
Custom_Product_Images_Illustration
Panduit® PanNet® TX5e™ UTPCH6Y Patch Cord, Cat 5e 24 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector
SKU492037
MFGR #UTPCH6Y
Your Cost: $10.59/ea
List: Panduit® PanNet® TX5e™ Patch Cord, Category: Cat 5e, 24 AWG Conductor, U/UTP Copper Conductor, RJ45 Modular Plug Connector, 4 Strands, 6 ft Cord, Low Smoke Zero Halogen, Off-White, 14 to 140 deg F
Panduit® PanNet® TX5e™ Patch Cord, Category: Cat 5e, 24 AWG Conductor, U/UTP Copper Conductor, RJ45 Modular Plug Connector, 4 Strands, 6 ft Cord, Low Smoke Zero Halogen, Off-White, 14 to 140 deg F
Application (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) ARRA Compliant Y Boot Type Modular Plug Buy American Compliant Y Catalog Number UTPCH6Y Conductor Material Copper Country of Origin MUL Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.2170 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 0.85 in Height [Metric] 2.1590 cm Jacket Material Polyvinyl Chloride Length 9.20 in Length [Metric] 23.3680 cm Outside Diameter 0.215 in Plug Type Modular Plug Returnable Y Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/TIA-968-AISO 11801 Class D, Class EAIEEE 802.3afIEEE 802.3atIEEE 802.3bt Type 3 and Type 4 for PoE ComplianceUL 1863IEC 60603-7CE MarkedCM Flammability Rating Sub Brand Pan-Net?® Temperature Rating 140 ?°F Type Patch Cord UNSPSC 43223303 UPC 11 07498316585 UPC 12 074983165858 Width 9.20 in Width [Metric] 23.3680 cm Wire Size 24 Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Color Off-White (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) 100% performance tested for wire map, NEXT and return loss 100% performance tested for wire map, NEXT and return loss Integral pair manager optimizes performance and consistency by reducing untwist at plug Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes Flexible stranded cable with 0.215 in Dia nominal allows for high density installations and superior panel cable management Identification label provides identification of performance level, length and quality control number for future traceability RJ45 plug lock-in device secures plug into jack to prevent unauthorized removal of patch cord 0.215 in Dia nominal cable Contacts plated with 50 micro inches of gold for superior performance and rated to 2500 mating cycles
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| ARRA Compliant | Y |
| Boot Type | Modular Plug |
| Buy American Compliant | Y |
| Catalog Number | UTPCH6Y |
| Conductor Material | Copper |
| Country of Origin | MUL |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.2170 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 0.85 in |
| Height [Metric] | 2.1590 cm |
| Jacket Material | Polyvinyl Chloride |
| Length | 9.20 in |
| Length [Metric] | 23.3680 cm |
| Outside Diameter | 0.215 in |
| Plug Type | Modular Plug |
| Returnable | Y |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/TIA-968-AISO 11801 Class D, Class EAIEEE 802.3afIEEE 802.3atIEEE 802.3bt Type 3 and Type 4 for PoE ComplianceUL 1863IEC 60603-7CE MarkedCM Flammability Rating |
| Sub Brand | Pan-Net?® |
| Temperature Rating | 140 ?°F |
| Type | Patch Cord |
| UNSPSC | 43223303 |
| UPC 11 | 07498316585 |
| UPC 12 | 074983165858 |
| Width | 9.20 in |
| Width [Metric] | 23.3680 cm |
| Wire Size | 24 |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Color | Off-White |
| (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| 100% performance tested for wire map, NEXT and return loss |
| 100% performance tested for wire map, NEXT and return loss |
| Integral pair manager optimizes performance and consistency by reducing untwist at plug |
| Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes |
| Flexible stranded cable with 0.215 in Dia nominal allows for high density installations and superior panel cable management |
| Identification label provides identification of performance level, length and quality control number for future traceability |
| RJ45 plug lock-in device secures plug into jack to prevent unauthorized removal of patch cord |
| 0.215 in Dia nominal cable |
| Contacts plated with 50 micro inches of gold for superior performance and rated to 2500 mating cycles |
