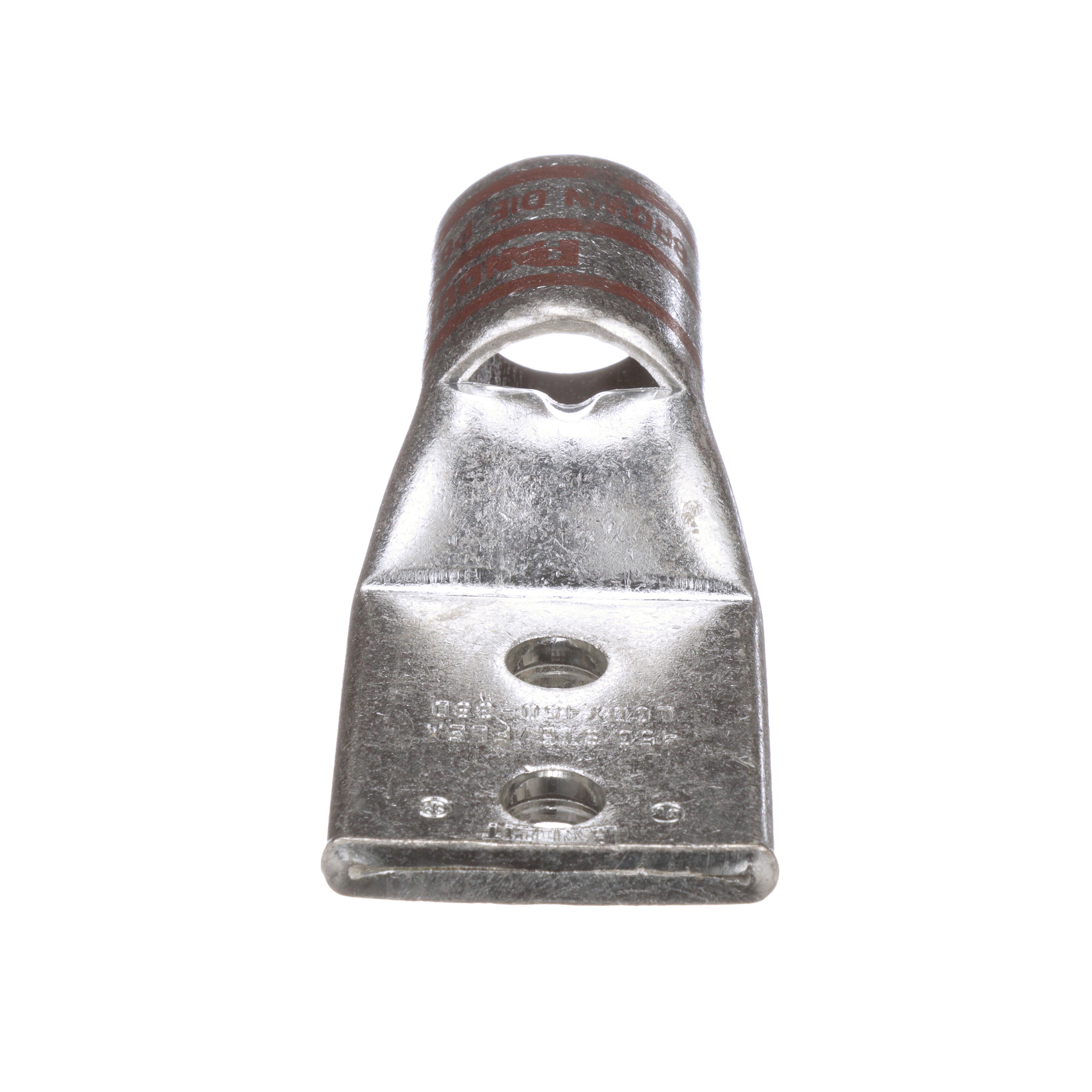

Panduit® Pan-Lug™ LCD 2-Hole Compression Lug With Inspection Window, 450 kcmil Copper Conductor, 3/8 in Stud, P87
Lug Compression Connectors
1095199
MFG #: LCDX450-38D-6
Panduit®
7187.00000
/ ea
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
- Full Eng Drawing URL - LCDX500-12-6.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_EDUCFNO5P8MB0Y39.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 10965_XKNPSW49FOETIL76.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - N-PCT-PMPI-256-PC--Rev10--ENG.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-PCT-PMPI-256-PC--Rev10--ENG.pdf(Install Instructions URL)
- Spec Sheet URL - 10965_IUCJRQ8G74DWML9A.pdf(Spec Sheet URL)
- Spec Sheet URL - LCDX8-10A-L Product Page.pdf(Spec Sheet URL)
- Tech Bulletin URL - 10965_1MJNSBVKE7GY20RQ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - D-PCCB16--WW-ENG-PneumaticCrimpingTool.pdf(Tech Bulletin URL)
- Video - http://www.panduit.com/heiler/Videos/M-PCUP65CRIMP--HIR-ENG.mp4(Video)
- Tech Drawing URL - 10965_8NSIHC7AVMFOT0LR.pdf(Tech Drawing URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4(Video)
- Tech Drawing URL - 110446385.pdf(Tech Drawing URL)
- Features
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive |
| Generously beveled wire entry prevents bent back strands when inserting conductor into barrel |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| Tin-plated to inhibit corrosion |
| For use with flexible, extra-flexible and code stranded copper conductors |
| Copper code/flex cable |
| 1 in Stud Hole Spacing |
