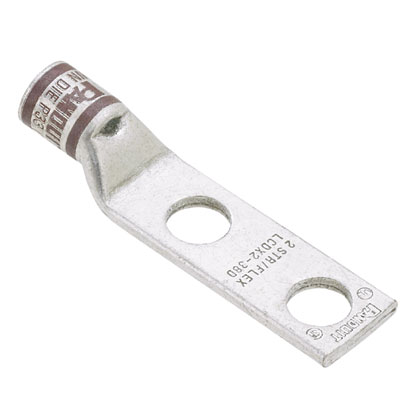

Panduit® Pan-Lug™ LCD 2-Hole Compression Lug With Inspection Window, 2 AWG Copper Conductor, 5/16 in Stud, P33, Copper
Custom_Product_Images_Illustration
Panduit® Pan-Lug™ LCD 2-Hole Compression Lug With Inspection Window, 2 AWG Copper Conductor, 5/16 in Stud, P33, Copper
SKU1025678
MFGR #LCDX2-56D-E
Your Cost: $20.9759/ea($2,097.59 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.36 in ID x 0.36 in OD x 0.59 in L Barrel Type Standard with Inspection Window Buy American Compliant Y Catalog Number LCDX2-56D-E Color Brown Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 1.2000 lb Gross Weight per Pack Metric 0.54 Gross Weight UOM Metric kg Height 3.35 in Height [Metric] 8.5090 cm Length 5.85 in Length [Metric] 14.8590 cm Mounting 11/16 Mounting Hole Size 11/16 in Number Of Holes 2 Overall Length 2.63 in Returnable Y Series LCDX Size #2 AWG Class B, C, G, H, I, K, M and DLO Specifications 17 mm L Wire Strip Standard CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL Listed Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.7 in W x 0.11 in THK Tongue Type Straight Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498342371 UPC 12 07498342371 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 2 AWG Class B, C, G, H, I, K, M and DLO Conductor Type Copper Die Code P33 Material Tin-Plated Copper Stud Size 5/16 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive Generously beveled wire entry prevents bent back strands when inserting conductor into barrel Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Tin-plated to inhibit corrosion For use with flexible, extra-flexible and code stranded copper conductors Copper code/flex cable 1 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.36 in ID x 0.36 in OD x 0.59 in L |
| Barrel Type | Standard with Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCDX2-56D-E |
| Color | Brown |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 1.2000 lb |
| Gross Weight per Pack Metric | 0.54 |
| Gross Weight UOM Metric | kg |
| Height | 3.35 in |
| Height [Metric] | 8.5090 cm |
| Length | 5.85 in |
| Length [Metric] | 14.8590 cm |
| Mounting | 11/16 |
| Mounting Hole Size | 11/16 in |
| Number Of Holes | 2 |
| Overall Length | 2.63 in |
| Returnable | Y |
| Series | LCDX |
| Size | #2 AWG Class B, C, G, H, I, K, M and DLO |
| Specifications | 17 mm L Wire Strip |
| Standard | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL Listed |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.7 in W x 0.11 in THK |
| Tongue Type | Straight |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498342371 |
| UPC 12 | 07498342371 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 2 AWG Class B, C, G, H, I, K, M and DLO |
| Conductor Type | Copper |
| Die Code | P33 |
| Material | Tin-Plated Copper |
| Stud Size | 5/16 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive |
| Generously beveled wire entry prevents bent back strands when inserting conductor into barrel |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| Tin-plated to inhibit corrosion |
| For use with flexible, extra-flexible and code stranded copper conductors |
| Copper code/flex cable |
| 1 in Stud Hole Spacing |
