Panduit®

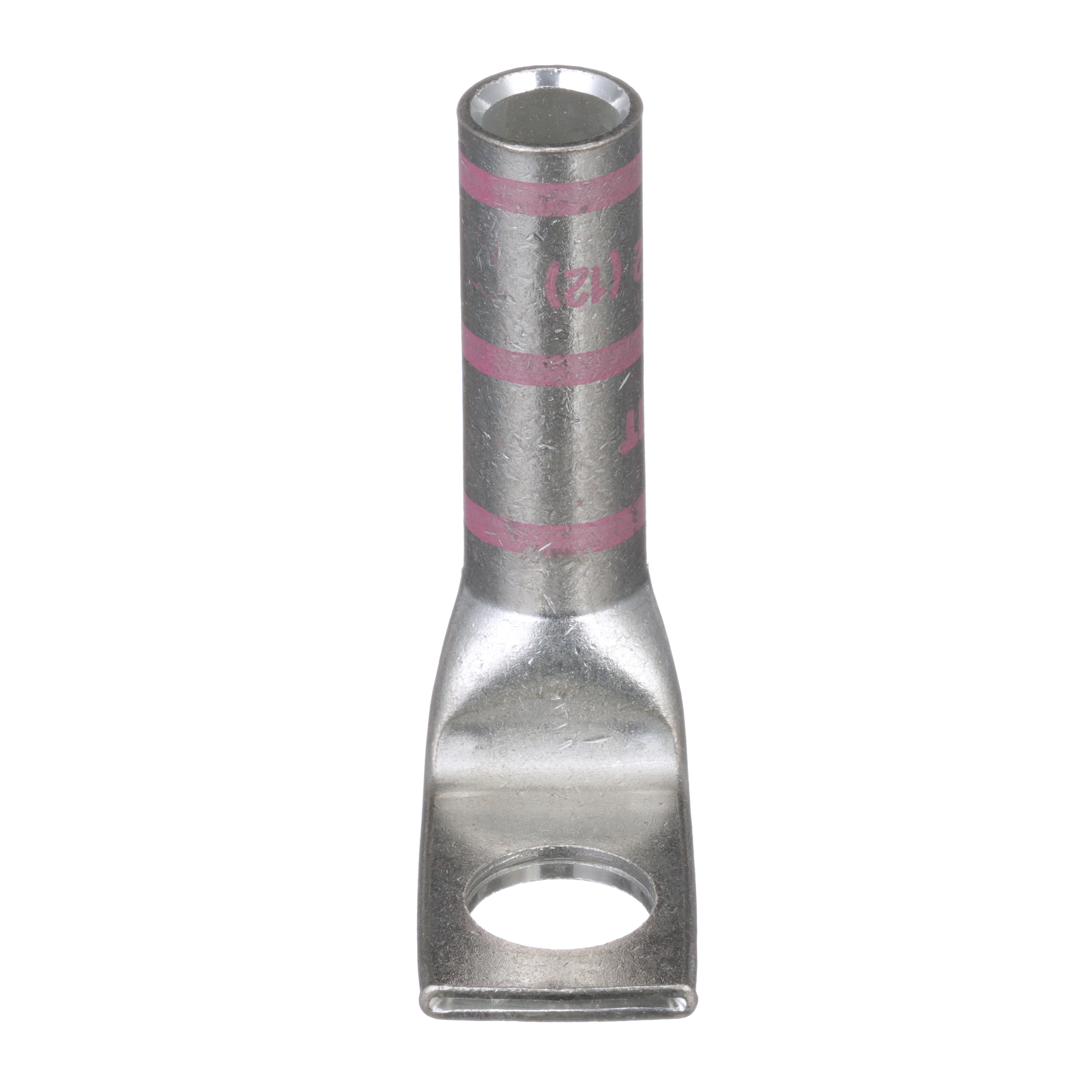

Panduit® Pan-Lug™ LCB 1-Hole Lug Compression Connector, 1/0 AWG, 1/2 in Stud, P42, Tin Plated Copper
Custom_Product_Images_Illustration
Panduit®
Panduit® Pan-Lug™ LCB 1-Hole Lug Compression Connector, 1/0 AWG, 1/2 in Stud, P42, Tin Plated Copper
SKU1026505
MFGR #LCB1/0-12F-X
Your Cost: $19.0251/ea($1,902.51 / c)
Panduit® Pan-Lug™ Lug Compression Connector, 1-Hole, Series: LCB, 1/0 AWG Conductor, Die Code: P42, 35 kVAC, 1/2 in Stud, 90 deg Tongue, 0.8 in W x 0.12 in THK Tongue, 2.67 in Overall Length, Long, 1.44 in L Barrel, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Pink
Panduit® Pan-Lug™ Lug Compression Connector, 1-Hole, Series: LCB, 1/0 AWG Conductor, Die Code: P42, 35 kVAC, 1/2 in Stud, 90 deg Tongue, 0.8 in W x 0.12 in THK Tongue, 2.67 in Overall Length, Long, 1.44 in L Barrel, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Pink
ARRA Compliant Y Barrel Size 0.39 in ID x 0.52 in OD x 1.44 in L Barrel Type Long without Inspection Window Buy American Compliant Y Catalog Number LCB1/0-12F-X Color Pink Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.9500 lb Gross Weight per Pack Metric 0.43 Gross Weight UOM Metric kg Height 3.30 in Height [Metric] 8.3820 cm Length 4.80 in Length [Metric] 12.1920 cm Mounting 1.5 Mounting Hole Size 1-1/2 in Number Of Holes 1 Overall Length 2.67 in Returnable Y Series LCB Size 1/0 AWG Code Specifications 1-1/2 in L Wire Strip Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantASTM B545-97Class CUL 486A, 486B File No. E52164CSA C22.2 No. 65-13 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.8 in W x 0.12 in THK Tongue Type 90 Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498387170 UPC 12 07498387170 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 1/0 AWG Conductor Type Copper/Stranded Die Code P42 Material Tin-Plated Copper Stud Size 1/2 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments Tin plated to inhibit corrosion Without inspection window lug Color coded barrel Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.39 in ID x 0.52 in OD x 1.44 in L |
| Barrel Type | Long without Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCB1/0-12F-X |
| Color | Pink |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.9500 lb |
| Gross Weight per Pack Metric | 0.43 |
| Gross Weight UOM Metric | kg |
| Height | 3.30 in |
| Height [Metric] | 8.3820 cm |
| Length | 4.80 in |
| Length [Metric] | 12.1920 cm |
| Mounting | 1.5 |
| Mounting Hole Size | 1-1/2 in |
| Number Of Holes | 1 |
| Overall Length | 2.67 in |
| Returnable | Y |
| Series | LCB |
| Size | 1/0 AWG Code |
| Specifications | 1-1/2 in L Wire Strip |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantASTM B545-97Class CUL 486A, 486B File No. E52164CSA C22.2 No. 65-13 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.8 in W x 0.12 in THK |
| Tongue Type | 90 |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498387170 |
| UPC 12 | 07498387170 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 1/0 AWG |
| Conductor Type | Copper/Stranded |
| Die Code | P42 |
| Material | Tin-Plated Copper |
| Stud Size | 1/2 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance |
| Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection |
| Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments |
| Tin plated to inhibit corrosion |
| Without inspection window lug |
| Color coded barrel |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
