Panduit®

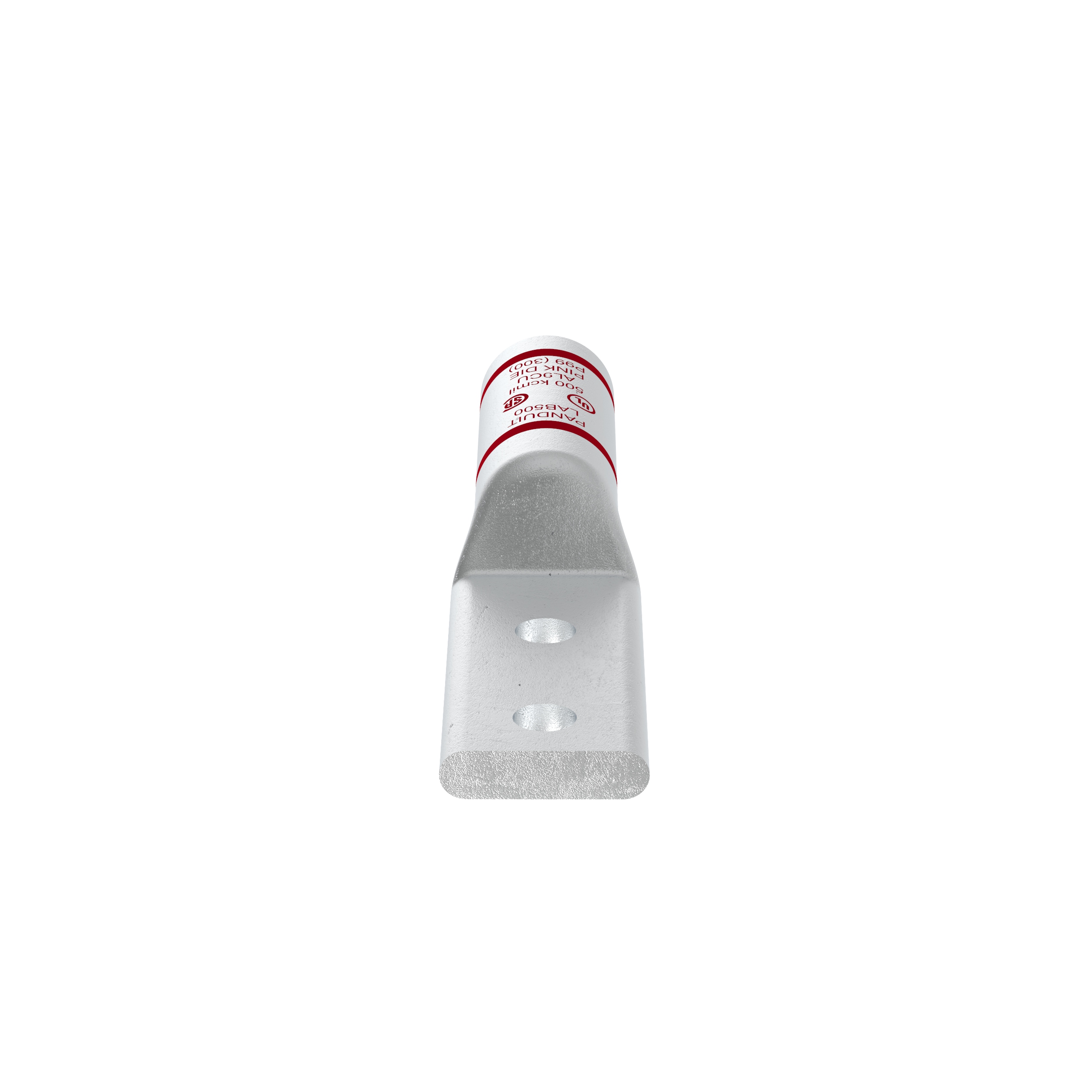

Panduit® Pan-Lug™ LAB 2-Hole Compression Lug, 500 kcmil Aluminum/Copper Conductor, 1/2 in Stud, P99, Aluminum
Custom_Product_Images_Illustration
Panduit®
Panduit® Pan-Lug™ LAB 2-Hole Compression Lug, 500 kcmil Aluminum/Copper Conductor, 1/2 in Stud, P99, Aluminum
SKU958537
MFGR #LAB500-12-2R
Your Cost: $100.1193/ea($10,011.93 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.84 in ID x 1.32 in OD x 3.05 in L Barrel Type Long/Standard Buy American Compliant Y Catalog Number LAB500-12-2R Color Pink Country of Origin IND Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 1.3900 lb Gross Weight per Pack Metric 0.63 Gross Weight UOM Metric kg Height 4.45 in Height [Metric] 11.3030 cm Length 10.70 in Length [Metric] 27.1780 cm Mounting 3-1/16 Mounting Hole Size 3-1/16 in Number Of Holes 2 Overall Length 7.36 in Returnable Y Series LAB Size 500 kcmil Code Specifications 3-1/16 in Wire Strip Length Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL 486A-486B File No. E52164 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 3.56 in L x 1.72 in W x 0.44 in THK Tongue Type Straight Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498306988 UPC 12 07498306988 Voltage Rating 35 kV Width 4.30 in Width [Metric] 10.9220 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 500 kcmil Conductor Type Aluminum/Copper Die Code P99 Material Tin-Plated Aluminum Stud Size 1/2 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin-plated to inhibit corrosion Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection Manufactured from high conductivity thick wall wrought aluminum Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments Factory pre-filled with oxide inhibitor to prevent oxidation Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments For use with stranded aluminum or copper code conductors 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.84 in ID x 1.32 in OD x 3.05 in L |
| Barrel Type | Long/Standard |
| Buy American Compliant | Y |
| Catalog Number | LAB500-12-2R |
| Color | Pink |
| Country of Origin | IND |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 1.3900 lb |
| Gross Weight per Pack Metric | 0.63 |
| Gross Weight UOM Metric | kg |
| Height | 4.45 in |
| Height [Metric] | 11.3030 cm |
| Length | 10.70 in |
| Length [Metric] | 27.1780 cm |
| Mounting | 3-1/16 |
| Mounting Hole Size | 3-1/16 in |
| Number Of Holes | 2 |
| Overall Length | 7.36 in |
| Returnable | Y |
| Series | LAB |
| Size | 500 kcmil Code |
| Specifications | 3-1/16 in Wire Strip Length |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedUL 486A-486B File No. E52164 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 3.56 in L x 1.72 in W x 0.44 in THK |
| Tongue Type | Straight |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498306988 |
| UPC 12 | 07498306988 |
| Voltage Rating | 35 kV |
| Width | 4.30 in |
| Width [Metric] | 10.9220 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 500 kcmil |
| Conductor Type | Aluminum/Copper |
| Die Code | P99 |
| Material | Tin-Plated Aluminum |
| Stud Size | 1/2 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin-plated to inhibit corrosion |
| Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection |
| Manufactured from high conductivity thick wall wrought aluminum |
| Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion |
| Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments |
| Factory pre-filled with oxide inhibitor to prevent oxidation |
| Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments |
| For use with stranded aluminum or copper code conductors |
| 1-3/4 in Stud Hole Spacing |
