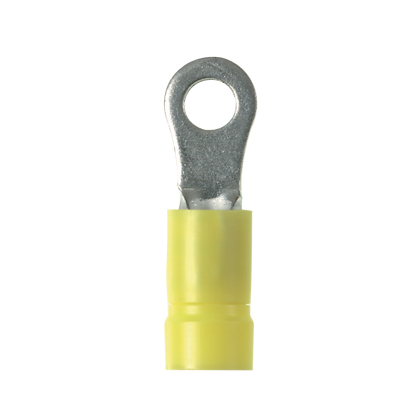

Panduit® PV12-8HDR-L PV-HDR Heavy Duty Insulated Ring Terminal, 16 to 12 AWG Conductor, 1.05 in L, Copper, Yellow
Custom_Product_Images_Illustration
Panduit®
Panduit® PV12-8HDR-L PV-HDR Heavy Duty Insulated Ring Terminal, 16 to 12 AWG Conductor, 1.05 in L, Copper, Yellow
SKU902022
MFGR #PV12-8HDR-L
Your Cost: $1.4896/ea($148.96 / c)
Panduit® Pan-Term® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® Pan-Term® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
ARRA Compliant Y Buy American Compliant Y Catalog Number PV12-8HDR-L Conductor Type Stranded Connection Funnel Entry Country of Origin MEX Currency USD Enclosure Ring shape EU RoHS Indicator Y Finish Tin Plated Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 1.25 Gross Weight UOM Metric kg Height 3.70 in Height [Metric] 9.3980 cm Insulation PVC Length [Metric] 24.0030 cm Mounting 9/32 Returnable Y Series PV-HDR Size #8 Specifications 9/32 in L Wire Strip, 0.35 in Clearance, 0.225 in Dia Max Vinyl Insulation, Funnel Entry Barrel Configuration Standard UL Listed 587H E52164, CSA Certified LR31212 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 65UL 486A/486BUL94 V-0 Flammability Rating Stud Size #8 Sub Brand Pan-Term?® Temperature Rating 221 °F Tongue Size 0.31 in W x 0.05 in THK Tongue Type Ring Type Ring Terminal UNSPSC 39121409 UPC 11 07498380254 UPC 12 07498380254 Voltage Rating 600 V Width 4.10 in Width [Metric] 10.4140 cm Wire Size #12 AWG Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Barrel Type Brazed Seam/Insulation Support Color Yellow Conductor Size 16 to 12 AWG Length 9.45 in Material Copper Vinyl insulated Funnel entry barrel configuration Ring tongue design assures a secure connection in high vibration applications Internal barrel serrations assure good wire contact and maximum tensile strength Insulation support helps to prevent wire damage in bending applications Manufactured from stock 56 percent thicker than a standard NO 16 - 14 AWG terminal for use in heavy-duty application Insulation housing is marked with "HDR" to signify heavy-duty ring Crimp termination Free hanging (in-line) mounting Suitable for use with CT-600-A, CT-1550, CT-1551, CT-2500 50 Pieces/Bottle, Standard package
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | PV12-8HDR-L |
| Conductor Type | Stranded |
| Connection | Funnel Entry |
| Country of Origin | MEX |
| Currency | USD |
| Enclosure | Ring shape |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 1.25 |
| Gross Weight UOM Metric | kg |
| Height | 3.70 in |
| Height [Metric] | 9.3980 cm |
| Insulation | PVC |
| Length [Metric] | 24.0030 cm |
| Mounting | 9/32 |
| Returnable | Y |
| Series | PV-HDR |
| Size | #8 |
| Specifications | 9/32 in L Wire Strip, 0.35 in Clearance, 0.225 in Dia Max Vinyl Insulation, Funnel Entry Barrel Configuration |
| Standard | UL Listed 587H E52164, CSA Certified LR31212 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 65UL 486A/486BUL94 V-0 Flammability Rating |
| Stud Size | #8 |
| Sub Brand | Pan-Term?® |
| Temperature Rating | 221 °F |
| Tongue Size | 0.31 in W x 0.05 in THK |
| Tongue Type | Ring |
| Type | Ring Terminal |
| UNSPSC | 39121409 |
| UPC 11 | 07498380254 |
| UPC 12 | 07498380254 |
| Voltage Rating | 600 V |
| Width | 4.10 in |
| Width [Metric] | 10.4140 cm |
| Wire Size | #12 AWG |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Barrel Type | Brazed Seam/Insulation Support |
| Color | Yellow |
| Conductor Size | 16 to 12 AWG |
| Length | 9.45 in |
| Material | Copper |
| Vinyl insulated |
| Funnel entry barrel configuration |
| Ring tongue design assures a secure connection in high vibration applications |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Insulation support helps to prevent wire damage in bending applications |
| Manufactured from stock 56 percent thicker than a standard NO 16 - 14 AWG terminal for use in heavy-duty application |
| Insulation housing is marked with "HDR" to signify heavy-duty ring |
| Crimp termination |
| Free hanging (in-line) mounting |
| Suitable for use with CT-600-A, CT-1550, CT-1551, CT-2500 |
| 50 Pieces/Bottle, Standard package |
