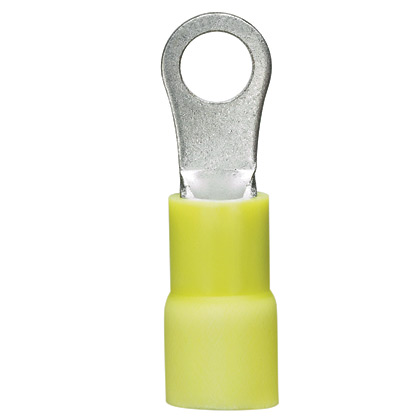

Panduit® PV10-10RX-L PV-RX Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.1 in L, Copper, Yellow
Ring Lugs
196233
MFG #: PV10-10RX-L
Panduit®
130.79000
/ ea
Panduit® Pan-Term® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - A41271 PV10-xxRX.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet 1 URL - Panduit_PV10_14RX_L_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Tech Drawing URL - 10965_638OAPGNHQLICSE5.pdf(Tech Drawing URL)
- Features
| Vinyl insulated |
| Expanded entry barrel configuration |
| Ring tongue design assures a secure connection in high vibration applications |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Insulation support helps to prevent wire damage in bending applications |
| Expanded wire entry designed to accommodate wire with a larger insulation thickness |
| Brazed seam protects terminal barrel from splitting during the crimp process |
| Crimp termination |
| Free hanging (in-line) mounting |
| Suitable for use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 tools |
| 50 Pieces/Bottle, Standard package |
