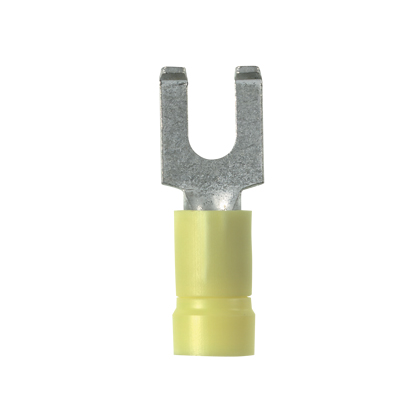

Panduit® PV10-10FF-L Pan-Term® PV-FF Insulated Loose Piece Fork Terminal, 14 to 10 AWG Conductor, 1.03 in L, Brazed Seam Barrel
Custom_Product_Images_Illustration
Panduit® PV10-10FF-L Pan-Term® PV-FF Insulated Loose Piece Fork Terminal, 14 to 10 AWG Conductor, 1.03 in L, Brazed Seam Barrel
SKU70232
MFGR #PV10-10FF-L
Your Cost: $1.236/ea($123.60 / c)
Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
ARRA Compliant Y Barrel Type Brazed Seam Brand Panduit® Buy American Compliant Y Catalog Number PV10-10FF-L Color Yellow Conductor Size 14 to 10 AWG Conductor Type Solid/Stranded Copper Connection Funnel Entry Country of Origin MEX Currency USD Enclosure Fork shape EU RoHS Indicator Y Finish Tin Plated Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 1.11 Gross Weight UOM Metric kg Height 4.35 in Height [Metric] 11.0490 cm Insulation PVC Length 9.95 in Length [Metric] 25.2730 cm Manufacturer Panduit® Material Copper Mounting 5/16 Returnable Y Series PNF-FF Size #10 Specifications 5/16 in L Wire Strip, 0.225 in Dia Max Vinyl Insulation, 0.22 in Clearance, Funnel Entry Barrel Configuration Standard UL Listed 587H E52164; CSA Certified LR31212 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 486A/486BCSA C22.2 No. 65UL94 V-0 Flammability Rating Stock Status NONSTOCK Stud Size #10 Sub Brand Pan-Term?® Temperature Rating 221 °F Tongue Size 0.37 in W x 0.04 in THK Tongue Type Flanged Fork Type Ring Terminal UNSPSC 39121409 UPC 11 07498346511 UPC 12 07498346511 Voltage Rating 600 V Width 4.15 in Width [Metric] 10.5410 cm Wire Size #10 AWG Vinyl insulated Funnel entry barrel configuration Fork design provides for fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Brazed seam protects terminal barrel from splitting during the crimp process Internal barrel serrations assure good wire contact and maximum tensile strength Crimp termination Free hanging (in-line) mounting Recommended tools CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 Flange design provides extra secure connection on a variety of applications 50/Bottle, Standard package
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Barrel Type | Brazed Seam |
| Brand | Panduit® |
| Buy American Compliant | Y |
| Catalog Number | PV10-10FF-L |
| Color | Yellow |
| Conductor Size | 14 to 10 AWG |
| Conductor Type | Solid/Stranded Copper |
| Connection | Funnel Entry |
| Country of Origin | MEX |
| Currency | USD |
| Enclosure | Fork shape |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 1.11 |
| Gross Weight UOM Metric | kg |
| Height | 4.35 in |
| Height [Metric] | 11.0490 cm |
| Insulation | PVC |
| Length | 9.95 in |
| Length [Metric] | 25.2730 cm |
| Manufacturer | Panduit® |
| Material | Copper |
| Mounting | 5/16 |
| Returnable | Y |
| Series | PNF-FF |
| Size | #10 |
| Specifications | 5/16 in L Wire Strip, 0.225 in Dia Max Vinyl Insulation, 0.22 in Clearance, Funnel Entry Barrel Configuration |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 486A/486BCSA C22.2 No. 65UL94 V-0 Flammability Rating |
| Stock Status | NONSTOCK |
| Stud Size | #10 |
| Sub Brand | Pan-Term?® |
| Temperature Rating | 221 °F |
| Tongue Size | 0.37 in W x 0.04 in THK |
| Tongue Type | Flanged Fork |
| Type | Ring Terminal |
| UNSPSC | 39121409 |
| UPC 11 | 07498346511 |
| UPC 12 | 07498346511 |
| Voltage Rating | 600 V |
| Width | 4.15 in |
| Width [Metric] | 10.5410 cm |
| Wire Size | #10 AWG |
| Vinyl insulated |
| Funnel entry barrel configuration |
| Fork design provides for fast and easy installation, without the need to remove fastener |
| Insulation support helps to prevent wire damage in bending applications |
| Brazed seam protects terminal barrel from splitting during the crimp process |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Crimp termination |
| Free hanging (in-line) mounting |
| Recommended tools CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 |
| Flange design provides extra secure connection on a variety of applications |
| 50/Bottle, Standard package |
