Panduit®

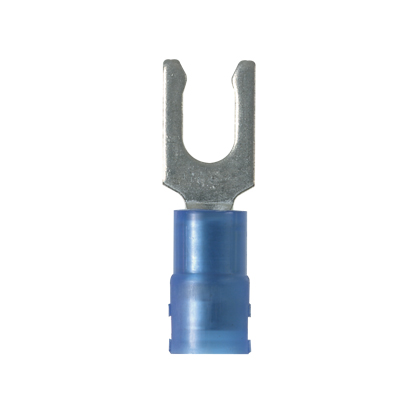

Panduit® PNF14-8LF-M Pan-Term® PNF-LF Insulated Loose Piece Fork Terminal, 18 to 14 AWG Conductor, 0.93 in L, Sleeved Barrel, Copper
Custom_Product_Images_Illustration
Panduit®
Panduit® PNF14-8LF-M Pan-Term® PNF-LF Insulated Loose Piece Fork Terminal, 18 to 14 AWG Conductor, 0.93 in L, Sleeved Barrel, Copper
SKU800260
MFGR #PNF14-8LF-M
Your Cost: $0.5142/ea($514.22 / m)
List: Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
ARRA Compliant Y Buy American Compliant Y Catalog Number PNF14-8LF-M Conductor Type Solid/Stranded Copper Connection Funnel Entry Country of Origin MEX Currency USD Enclosure Fork shape EU RoHS Indicator Y Finish Tin Plated Gross Volume Per Pack 1.00 Gross Volume per Pack Metric 0.03 Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 2.6000 lb Gross Weight per Pack Metric 1.18 Gross Weight UOM Metric kg Height 3.45 in Height [Metric] 8.7630 cm Insulation Nylon Length [Metric] 20.8280 cm Mounting 7/32 Returnable Y Series PNF-LF Size #8 Specifications 7/32 in L Wire Strip, 0.08 to 0.162 in Dia Nylon Insulation, 1/4 in Clearance, Funnel Entry Barrel Configuration Standard UL Listed 587H E52164; CSA Certified LR31212 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-2/HB Flammability RatingUL 486A/486B Stud Size #8 Sub Brand Pan-Term?® Temperature Rating 221 °F Tongue Size 0.29 in W x 0.03 in THK Tongue Type Locking Fork Type Locking Fork Terminal UNSPSC 39121409 UPC 11 07498381043 UPC 12 07498381043 Voltage Rating 600 V Width 4.35 in Width [Metric] 11.0490 cm Wire Size #14 AWG Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Barrel Type Sleeved Color Blue Conductor Size 18 to 14 AWG Length 8.20 in Material Copper Nylon insulated Funnel entry barrel configuration Fork design provides for fast and easy installation, without the need to remove fastener Internal barrel serrations assure good wire contact and maximum tensile strength Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications Crimp termination Free hanging (in-line) mounting Recommended tools CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 Locks in place for secure connection 1000/Box, Bulk package
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | PNF14-8LF-M |
| Conductor Type | Solid/Stranded Copper |
| Connection | Funnel Entry |
| Country of Origin | MEX |
| Currency | USD |
| Enclosure | Fork shape |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume Per Pack | 1.00 |
| Gross Volume per Pack Metric | 0.03 |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 2.6000 lb |
| Gross Weight per Pack Metric | 1.18 |
| Gross Weight UOM Metric | kg |
| Height | 3.45 in |
| Height [Metric] | 8.7630 cm |
| Insulation | Nylon |
| Length [Metric] | 20.8280 cm |
| Mounting | 7/32 |
| Returnable | Y |
| Series | PNF-LF |
| Size | #8 |
| Specifications | 7/32 in L Wire Strip, 0.08 to 0.162 in Dia Nylon Insulation, 1/4 in Clearance, Funnel Entry Barrel Configuration |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-2/HB Flammability RatingUL 486A/486B |
| Stud Size | #8 |
| Sub Brand | Pan-Term?® |
| Temperature Rating | 221 °F |
| Tongue Size | 0.29 in W x 0.03 in THK |
| Tongue Type | Locking Fork |
| Type | Locking Fork Terminal |
| UNSPSC | 39121409 |
| UPC 11 | 07498381043 |
| UPC 12 | 07498381043 |
| Voltage Rating | 600 V |
| Width | 4.35 in |
| Width [Metric] | 11.0490 cm |
| Wire Size | #14 AWG |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Barrel Type | Sleeved |
| Color | Blue |
| Conductor Size | 18 to 14 AWG |
| Length | 8.20 in |
| Material | Copper |
| Nylon insulated |
| Funnel entry barrel configuration |
| Fork design provides for fast and easy installation, without the need to remove fastener |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications |
| Crimp termination |
| Free hanging (in-line) mounting |
| Recommended tools CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 |
| Locks in place for secure connection |
| 1000/Box, Bulk package |
