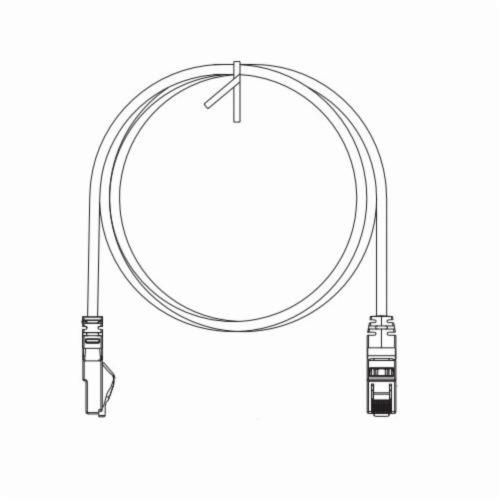

Panduit® NetKey™ NK6PC25BUY Patch Cord, Cat 6 24 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector, 25 ft L Cord
Panduit® NetKey™ NK6PC25BUY Patch Cord, Cat 6 24 AWG U/UTP Copper Conductor, RJ45 Modular Plug Connector, 25 ft L Cord
SKU824422
MFGR #NK6PC25BUY
Your Cost: $24.82/ea
Category 6/class E patch cords are constructed of UTP 24 AWG stranded copper cable and a modular plug at each end. patch cords are used in all work area outlets and patch panels. patch cords are wired to be compatible with both T568A and T568B wiring schemes.
Category 6/class E patch cords are constructed of UTP 24 AWG stranded copper cable and a modular plug at each end. patch cords are used in all work area outlets and patch panels. patch cords are wired to be compatible with both T568A and T568B wiring schemes.
ARRA Compliant Y Buy American Compliant Y Catalog Number NK6PC25BUY Country of Origin CRI Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.7360 lb Gross Weight per Pack Metric 0.33 Gross Weight UOM Metric kg Height 1.50 in Height [Metric] 3.8100 cm Jacket Material Polyvinyl Chloride Length 10.00 in Length [Metric] 25.4000 cm Outside Diameter 0.235 in Returnable Y Series NK6PC Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/TIA-1096A, ISO 11801 Class EIEEE 802.3af/802.3at, 802.3bt Type 3Type 4 for PoE, PoE+ CompliantUL 1863IEC 60603-7cULus ListedCAN/CSA-C22.2UL File E129886t CM Flammability Rating Sub Brand NetKey?® Temperature Rating 140 ?°F Type Patch Cord UNSPSC 43223303 UPC 11 07498329076 UPC 12 07498329076 Width 14.00 in Width [Metric] 35.5600 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Category Type CAT 6 Color Blue Conductor Size 24 Conductor Type Stranded Copper Connector Type RJ45 Cord Length 25 (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digit TX6 PLUS Patch Cords are available in standard, keyed and bulkhead versions for unshielded installations and various flammability ratings (CM, LSZH, Dual Rated (CM/LSZH) 100% performance tested give Confidence that each patch cord delivers specified performance Patented tangle free latch prevents snags and provides easy release Slender strain relief boot provides easy access in high density applications Provides identification of performance level, length, and quality control number for future traceability Meets individual length and color-coding requirements TX6 PLUS patch cords are available in standard Keyed and bulkhead versions for unshielded installations and various flammability ratings (CM, LSZH, dual rated (CM/LSZH) Category 6/class E patch cords are constructed of UTP 24 AWG stranded copper cable and a modular plug at each end Patch cords are used in all work area outlets and patch panels. patch cords are wired to be compatible with both T568A and T568B wiring schemes 0.235 in Dia cable
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | NK6PC25BUY |
| Country of Origin | CRI |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.7360 lb |
| Gross Weight per Pack Metric | 0.33 |
| Gross Weight UOM Metric | kg |
| Height | 1.50 in |
| Height [Metric] | 3.8100 cm |
| Jacket Material | Polyvinyl Chloride |
| Length | 10.00 in |
| Length [Metric] | 25.4000 cm |
| Outside Diameter | 0.235 in |
| Returnable | Y |
| Series | NK6PC |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2ANSI/TIA-1096A, ISO 11801 Class EIEEE 802.3af/802.3at, 802.3bt Type 3Type 4 for PoE, PoE+ CompliantUL 1863IEC 60603-7cULus ListedCAN/CSA-C22.2UL File E129886t CM Flammability Rating |
| Sub Brand | NetKey?® |
| Temperature Rating | 140 ?°F |
| Type | Patch Cord |
| UNSPSC | 43223303 |
| UPC 11 | 07498329076 |
| UPC 12 | 07498329076 |
| Width | 14.00 in |
| Width [Metric] | 35.5600 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Category Type | CAT 6 |
| Color | Blue |
| Conductor Size | 24 |
| Conductor Type | Stranded Copper |
| Connector Type | RJ45 |
| Cord Length | 25 |
| (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digit |
| TX6 PLUS Patch Cords are available in standard, keyed and bulkhead versions for unshielded installations and various flammability ratings (CM, LSZH, Dual Rated (CM/LSZH) |
| 100% performance tested give Confidence that each patch cord delivers specified performance |
| Patented tangle free latch prevents snags and provides easy release |
| Slender strain relief boot provides easy access in high density applications |
| Provides identification of performance level, length, and quality control number for future traceability |
| Meets individual length and color-coding requirements |
| TX6 PLUS patch cords are available in standard |
| Keyed and bulkhead versions for unshielded installations and various flammability ratings (CM, LSZH, dual rated (CM/LSZH) |
| Category 6/class E patch cords are constructed of UTP 24 AWG stranded copper cable and a modular plug at each end |
| Patch cords are used in all work area outlets and patch panels. patch cords are wired to be compatible with both T568A and T568B wiring schemes |
| 0.235 in Dia cable |
