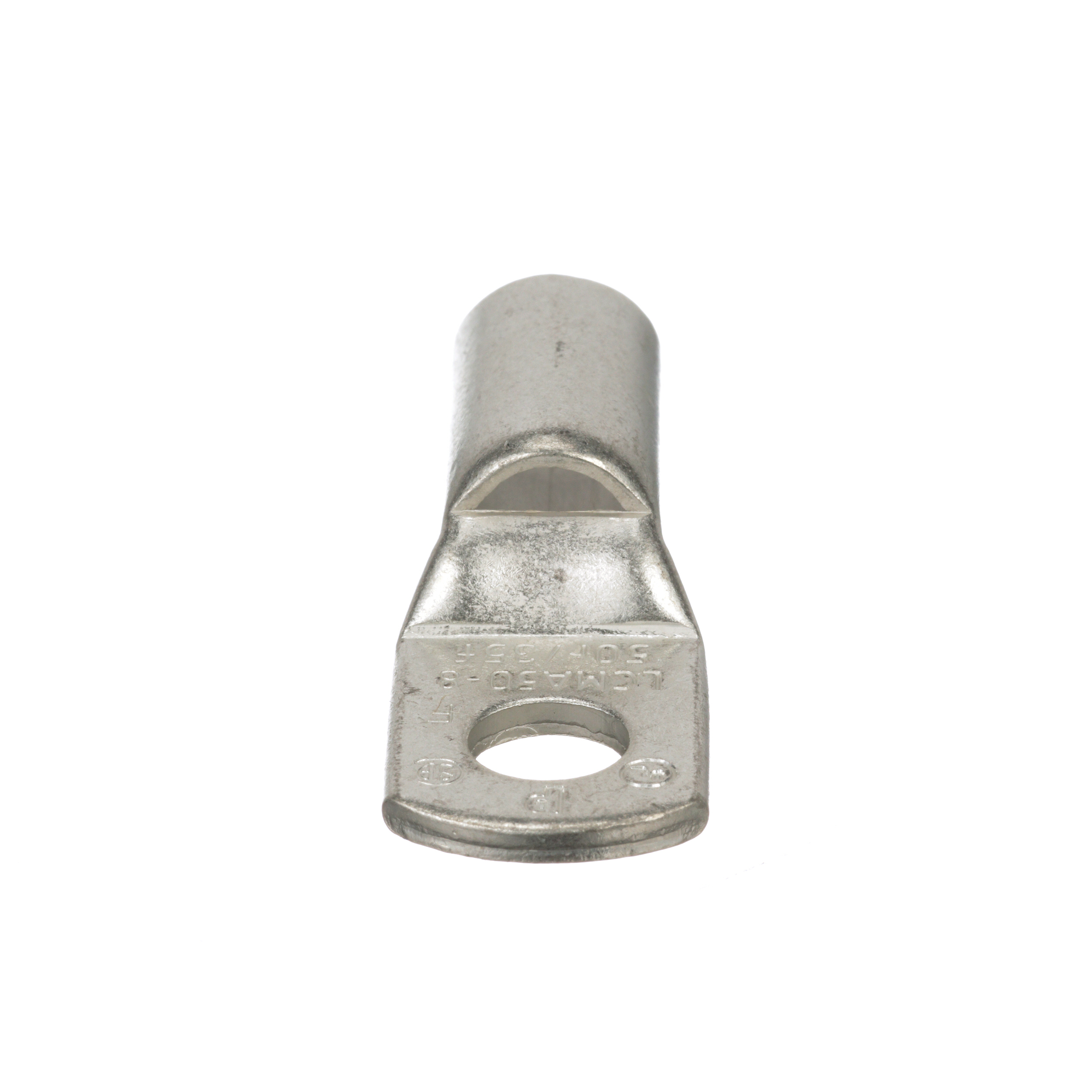

Panduit® LCMA50-8-L LCMA 1-Hole Metric Compression Lug Connector With Inspection Window, 50 sq-mm Copper Conductor, M8 Stud, P37
Custom_Product_Images_Illustration
Panduit® LCMA50-8-L LCMA 1-Hole Metric Compression Lug Connector With Inspection Window, 50 sq-mm Copper Conductor, M8 Stud, P37
SKU930013
MFGR #LCMA50-8-L
Your Cost: $7.0976/ea($709.76 / c)
Panduit® Compression Lug Connector, 1-Hole Metric, Series: LCMA, Copper Conductor, 50 sq-mm Conductor, Die Code: P37, 35 kVAC, M8 Stud, Straight Tongue, 2.5 mm THK Tongue, 46.5 mm Overall Length, Standard, 9.8 mm ID x 20.3 mm L Barrel, 21.8 mm Wire Stripe Length, 11.5 mm Wrench Clearance, 90 deg C, Copper
Panduit® Compression Lug Connector, 1-Hole Metric, Series: LCMA, Copper Conductor, 50 sq-mm Conductor, Die Code: P37, 35 kVAC, M8 Stud, Straight Tongue, 2.5 mm THK Tongue, 46.5 mm Overall Length, Standard, 9.8 mm ID x 20.3 mm L Barrel, 21.8 mm Wire Stripe Length, 11.5 mm Wrench Clearance, 90 deg C, Copper
Amperage Rating NA ARRA Compliant Y Buy American Compliant Y Catalog Number LCMA50-8-L Color Green Country of Origin ARG Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.84 Gross Weight UOM Metric kg Height 3.15 in Height [Metric] 8.0010 cm Length 7.95 in Length [Metric] 20.1930 cm Mounting 0.85 Number Of Holes 1 Returnable Y Standard Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant Standards UL 486A, 486B Listed, CSA C22.2 NO 65-13 Certified, CE Marked, RoHS Compliant, Meets EN 61238-1:2003/IEC 61238-1:2003 Class B Sub Brand Pan-Lug?„? Type Copper Compression Connectors - Metric Lugs UNSPSC 39121405 UPC 11 07498376944 UPC 12 07498376944 Voltage Rating NA V Width 4.15 in Width [Metric] 10.5410 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Material Tin-Plated Copper Stud Size 0.35 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plated to inhibit corrosion Inspection window to visually assure full conductor insertion Product information marked on connector for selection and installation Rounded tongue convenient for use in tight spaces Internally beveled wire entry for fast and easy installation High conductivity seamless copper tube Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plating meets ASTM B545-97, class C 320 u in (8 u m) Panduit indenter die index no CD-920-3/0NEST Panduit nest die index no CDI-920-24
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Amperage Rating | NA |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | LCMA50-8-L |
| Color | Green |
| Country of Origin | ARG |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.84 |
| Gross Weight UOM Metric | kg |
| Height | 3.15 in |
| Height [Metric] | 8.0010 cm |
| Length | 7.95 in |
| Length [Metric] | 20.1930 cm |
| Mounting | 0.85 |
| Number Of Holes | 1 |
| Returnable | Y |
| Standard | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Standards | UL 486A, 486B Listed, CSA C22.2 NO 65-13 Certified, CE Marked, RoHS Compliant, Meets EN 61238-1:2003/IEC 61238-1:2003 Class B |
| Sub Brand | Pan-Lug?„? |
| Type | Copper Compression Connectors - Metric Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498376944 |
| UPC 12 | 07498376944 |
| Voltage Rating | NA V |
| Width | 4.15 in |
| Width [Metric] | 10.5410 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Material | Tin-Plated Copper |
| Stud Size | 0.35 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Inspection window to visually assure full conductor insertion |
| Product information marked on connector for selection and installation |
| Rounded tongue convenient for use in tight spaces |
| Internally beveled wire entry for fast and easy installation |
| High conductivity seamless copper tube |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plating meets ASTM B545-97, class C 320 u in (8 u m) |
| Panduit indenter die index no CD-920-3/0NEST |
| Panduit nest die index no CDI-920-24 |
