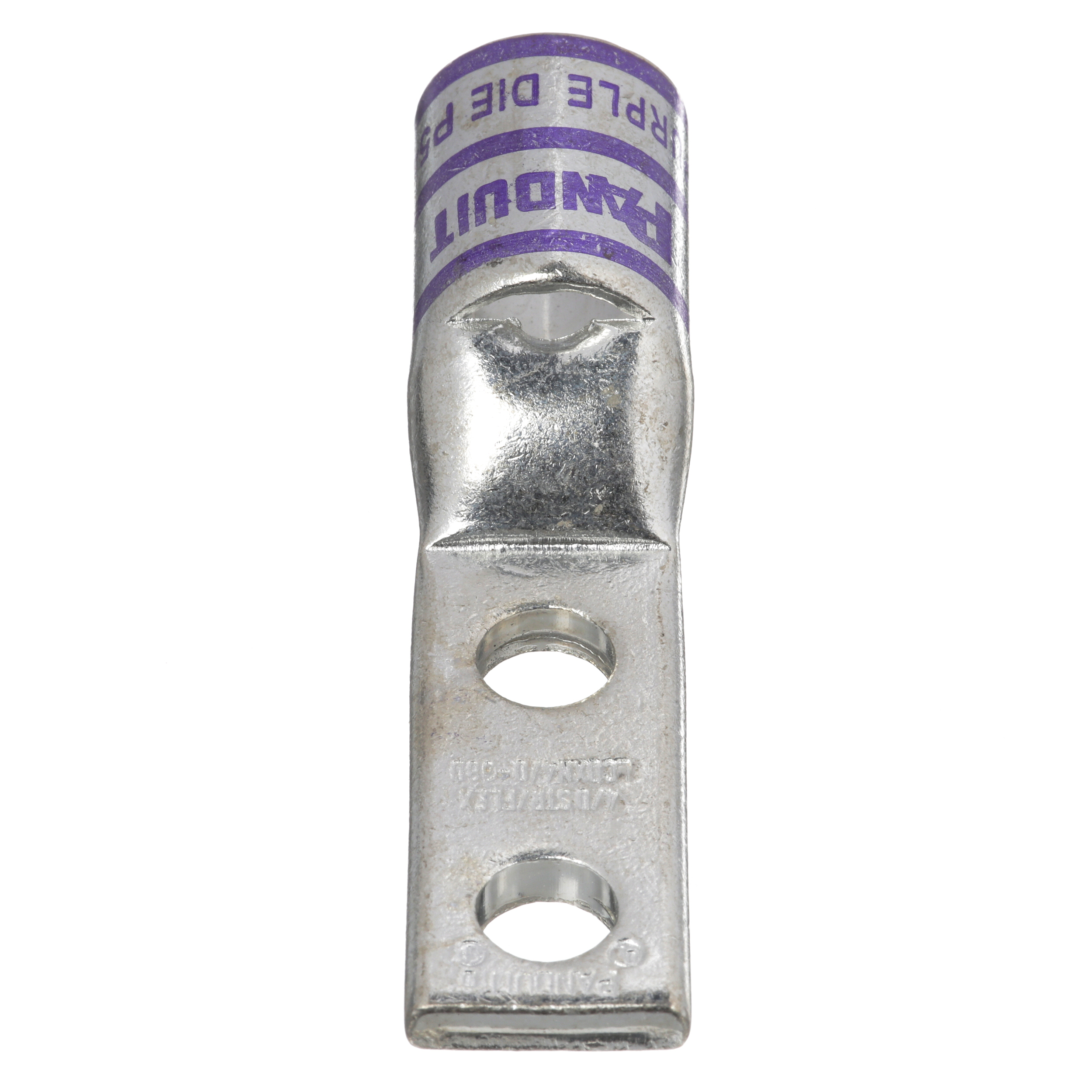

Panduit® LCDXN4/0-38D-X LCDXN 2-Hole Compression Lug Connector With Inspection Window, 4/0 AWG Copper Conductor, 3/8 in Stud, P54
Custom_Product_Images_Illustration
Panduit® LCDXN4/0-38D-X LCDXN 2-Hole Compression Lug Connector With Inspection Window, 4/0 AWG Copper Conductor, 3/8 in Stud, P54
SKU790261
MFGR #LCDXN4/0-38D-X
Your Cost: $45.5781/ea($4,557.81 / c)
Panduit® Compression Lug Connector, 2-Hole, Series: LCDXN, Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kVAC, 3/8 in Stud, Narrow/Straight Tongue, 0.81 in W x 0.2 in THK Tongue, 3.36 in Overall Length, Standard, 1.03 in L Barrel, 1 in Hole Spacing, 1-1/16 in Wire Stripe Length, 90 deg C, Copper, Purple
Panduit® Compression Lug Connector, 2-Hole, Series: LCDXN, Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kVAC, 3/8 in Stud, Narrow/Straight Tongue, 0.81 in W x 0.2 in THK Tongue, 3.36 in Overall Length, Standard, 1.03 in L Barrel, 1 in Hole Spacing, 1-1/16 in Wire Stripe Length, 90 deg C, Copper, Purple
Amperage Rating NA ARRA Compliant Y Barrel Size 0.65 in ID x 0.81 in OD x 1.03 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCDXN4/0-38D-X Color Purple Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.75 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.80 in Length [Metric] 12.1920 cm Mounting 1.06 Mounting Hole Size 1-1/16 in Overall Length 3.36 in Returnable Y Series LCDXN Size 4/0 AWG Class B, C, G, H, I, K, M and DLO Specifications 2.9375 in L Wire Strip, 1 in Stud Hole Spacing Standard UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedCSA C22.2 File No. 65-03UL 486A, 486B File No. E52164 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.81 in W x 0.2 in THK Tongue Type Narrow Straight Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498344990 UPC 12 07498344990 Voltage Rating NA V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 4/0 AWG Class B, C, G, H, I, K, M and DLO Conductor Type Copper Die Code P54 Material Tin-Plated Copper Stud Size 3/8 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plated to inhibit corrosion Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Generously beveled wire entry prevents bent back strands when inserting conductor into barrel Narrow tongue width for limited space applications Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| Amperage Rating | NA |
| ARRA Compliant | Y |
| Barrel Size | 0.65 in ID x 0.81 in OD x 1.03 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCDXN4/0-38D-X |
| Color | Purple |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.75 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.80 in |
| Length [Metric] | 12.1920 cm |
| Mounting | 1.06 |
| Mounting Hole Size | 1-1/16 in |
| Overall Length | 3.36 in |
| Returnable | Y |
| Series | LCDXN |
| Size | 4/0 AWG Class B, C, G, H, I, K, M and DLO |
| Specifications | 2.9375 in L Wire Strip, 1 in Stud Hole Spacing |
| Standard | UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA CertifiedCSA C22.2 File No. 65-03UL 486A, 486B File No. E52164 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.81 in W x 0.2 in THK |
| Tongue Type | Narrow Straight |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498344990 |
| UPC 12 | 07498344990 |
| Voltage Rating | NA V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 4/0 AWG Class B, C, G, H, I, K, M and DLO |
| Conductor Type | Copper |
| Die Code | P54 |
| Material | Tin-Plated Copper |
| Stud Size | 3/8 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| Generously beveled wire entry prevents bent back strands when inserting conductor into barrel |
| Narrow tongue width for limited space applications |
| Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive |
