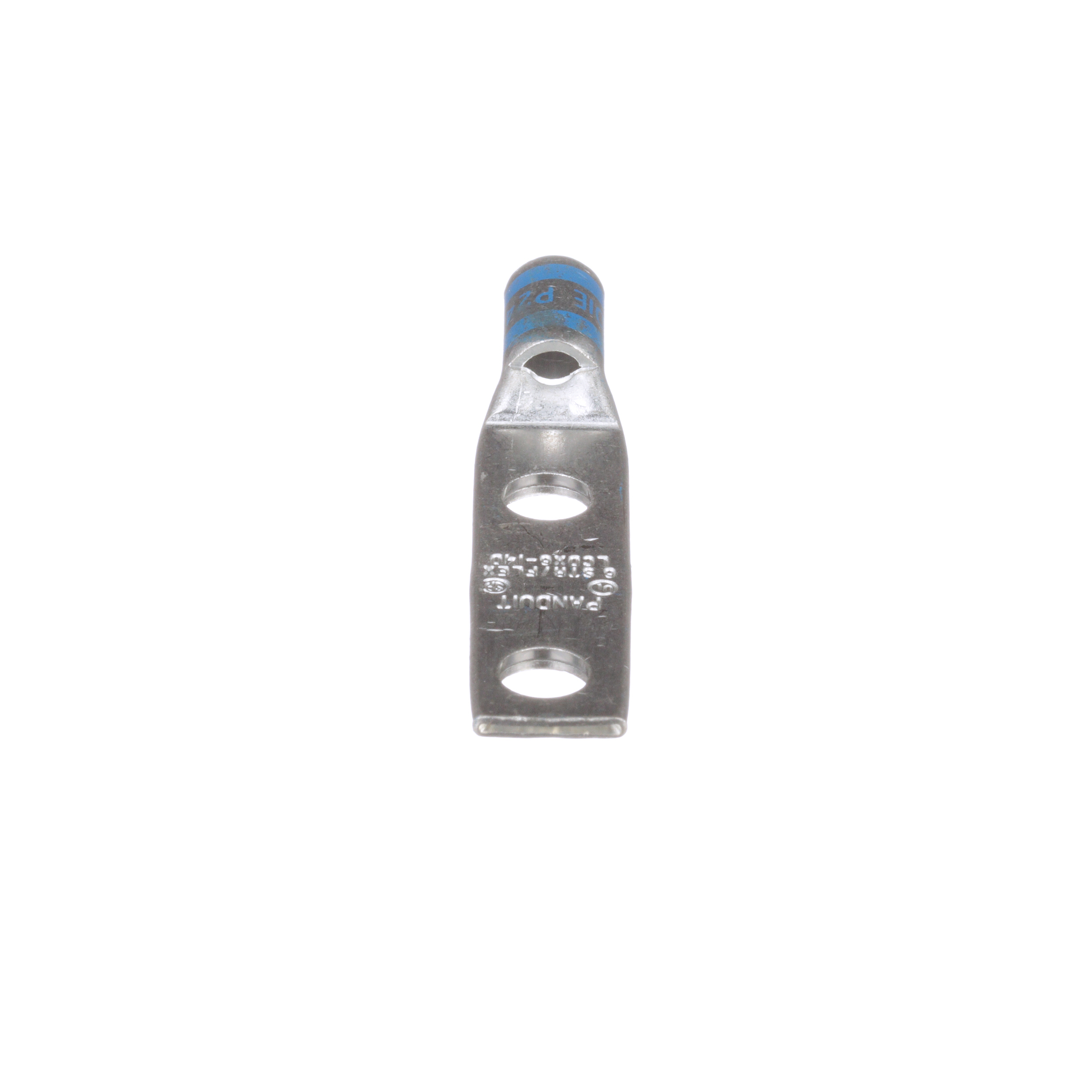

Panduit® LCDX6-14D-L LCDX 2-Hole Compression Lug Connector With Inspection Window, 6 AWG Copper Conductor, 1/4 in Stud, P24, Copper
Custom_Product_Images_Illustration
Panduit® LCDX6-14D-L LCDX 2-Hole Compression Lug Connector With Inspection Window, 6 AWG Copper Conductor, 1/4 in Stud, P24, Copper
SKU462659
MFGR #LCDX6-14D-L
Your Cost: $11.5165/ea($1,151.65 / c)
Panduit® Compression Lug Connector, 2-Hole, Series: LCDX, Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kVAC, 1/4 in Stud, Standard/Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.28 in Overall Length, Standard, 0.48 in L Barrel, 1 in Hole Spacing, 9/16 in Wire Stripe Length, 90 deg C, Copper, Blue
Panduit® Compression Lug Connector, 2-Hole, Series: LCDX, Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kVAC, 1/4 in Stud, Standard/Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.28 in Overall Length, Standard, 0.48 in L Barrel, 1 in Hole Spacing, 9/16 in Wire Stripe Length, 90 deg C, Copper, Blue
ARRA Compliant Y Barrel Size 0.22 in ID x 0.31 in OD x 0.48 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCDX6-14D-L Color Blue Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0300 lb Gross Weight per Pack Metric 0.64 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.70 in Length [Metric] 11.9380 cm Mounting 42,614 Mounting Hole Size 9/16 in Number Of Holes 2 Overall Length 2.28 in Returnable Y Series LCDX Size #6 AWG Class B, C, G, H, I, K, M and DLO Specifications 9/16 in L Wire Strip, 1 in Stud Hole Spacing Standard CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03UL 486A-486B File No. E52164UL Listed Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.48 in W x 0.08 in THK Tongue Type Standard Straight Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498342662 UPC 12 07498342662 Voltage Rating 35 V Width 3.35 in Width [Metric] 8.5090 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 6 AWG Class B, C, G, H, I, K, M and DLO Conductor Type Copper Die Code P24 Material Tin-Plated Copper Stud Size 1/4 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plated to inhibit corrosion Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive Generously beveled wire entry prevents bent back strands when inserting conductor into barrel Inspection window to visually assure full conductor insertion American bureau of shipping approved
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.22 in ID x 0.31 in OD x 0.48 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCDX6-14D-L |
| Color | Blue |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0300 lb |
| Gross Weight per Pack Metric | 0.64 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.70 in |
| Length [Metric] | 11.9380 cm |
| Mounting | 42,614 |
| Mounting Hole Size | 9/16 in |
| Number Of Holes | 2 |
| Overall Length | 2.28 in |
| Returnable | Y |
| Series | LCDX |
| Size | #6 AWG Class B, C, G, H, I, K, M and DLO |
| Specifications | 9/16 in L Wire Strip, 1 in Stud Hole Spacing |
| Standard | CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03UL 486A-486B File No. E52164UL Listed |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.48 in W x 0.08 in THK |
| Tongue Type | Standard Straight |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498342662 |
| UPC 12 | 07498342662 |
| Voltage Rating | 35 V |
| Width | 3.35 in |
| Width [Metric] | 8.5090 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 6 AWG Class B, C, G, H, I, K, M and DLO |
| Conductor Type | Copper |
| Die Code | P24 |
| Material | Tin-Plated Copper |
| Stud Size | 1/4 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive |
| Generously beveled wire entry prevents bent back strands when inserting conductor into barrel |
| Inspection window to visually assure full conductor insertion |
| American bureau of shipping approved |
