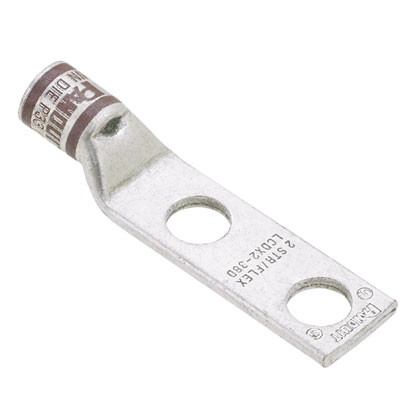

Panduit® LCDX500-38D-6 LCDX 2-Hole Compression Lug Connector With Inspection Window, 500 kcmil/535.3 kcmil Copper Conductor, P99
Custom_Product_Images_Illustration
Panduit® LCDX500-38D-6 LCDX 2-Hole Compression Lug Connector With Inspection Window, 500 kcmil/535.3 kcmil Copper Conductor, P99
SKU415708
MFGR #LCDX500-38D-6
Your Cost: $86.2819/ea($8,628.19 / c)
Panduit® Compression Lug Connector, 2-Hole, Series: LCDX, Copper Conductor, 500 kcmil/535.3 kcmil Conductor, Die Code: P99, 35 kVAC, 3/8 in Stud, Standard/Straight Tongue, 1.89 in W x 0.26 in THK Tongue, 4.08 in Overall Length, Standard, 1.48 in L Barrel, 1 in Hole Spacing, 1-9/16 in Wire Stripe Length, 90 deg C, Copper, Pink
Panduit® Compression Lug Connector, 2-Hole, Series: LCDX, Copper Conductor, 500 kcmil/535.3 kcmil Conductor, Die Code: P99, 35 kVAC, 3/8 in Stud, Standard/Straight Tongue, 1.89 in W x 0.26 in THK Tongue, 4.08 in Overall Length, Standard, 1.48 in L Barrel, 1 in Hole Spacing, 1-9/16 in Wire Stripe Length, 90 deg C, Copper, Pink
ARRA Compliant Y Barrel Size 1.48 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCDX500-38D-6 Color Pink Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.6900 lb Gross Weight per Pack Metric 1.88 Gross Weight UOM Metric kg Height 3.30 in Height [Metric] 8.3820 cm Length 7.60 in Length [Metric] 19.3040 cm Mounting 1.56 Mounting Hole Size 1-9/16 in Number Of Holes 2 Overall Length 4.08 in Returnable Y Series LCDX Size 500 kcmil Class G, H, I, K, M and 535.3 kcmil DLO Specifications 1.56 in L Wire Strip, 1 in Stud Hole Spacing Standard CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03UL 486A-486B File No. E52164UL Listed Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 1.89 in W x 0.26 in THK Tongue Type Standard Straight Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498345367 UPC 12 07498345367 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 500 kcmil Class G, H, I, K, M, 535.3 kcmil DLO Conductor Type Copper Die Code P99 Material Tin-Plated Copper Stud Size 3/8 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plated to inhibit corrosion Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive Generously beveled wire entry prevents bent back strands when inserting conductor into barrel Inspection window to visually assure full conductor insertion American bureau of shipping approved 500 kcmil (Class G, H, I, K, M)/535.3 kcmil (diesel locomotive)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 1.48 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCDX500-38D-6 |
| Color | Pink |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.6900 lb |
| Gross Weight per Pack Metric | 1.88 |
| Gross Weight UOM Metric | kg |
| Height | 3.30 in |
| Height [Metric] | 8.3820 cm |
| Length | 7.60 in |
| Length [Metric] | 19.3040 cm |
| Mounting | 1.56 |
| Mounting Hole Size | 1-9/16 in |
| Number Of Holes | 2 |
| Overall Length | 4.08 in |
| Returnable | Y |
| Series | LCDX |
| Size | 500 kcmil Class G, H, I, K, M and 535.3 kcmil DLO |
| Specifications | 1.56 in L Wire Strip, 1 in Stud Hole Spacing |
| Standard | CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03UL 486A-486B File No. E52164UL Listed |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 1.89 in W x 0.26 in THK |
| Tongue Type | Standard Straight |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498345367 |
| UPC 12 | 07498345367 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 500 kcmil Class G, H, I, K, M, 535.3 kcmil DLO |
| Conductor Type | Copper |
| Die Code | P99 |
| Material | Tin-Plated Copper |
| Stud Size | 3/8 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive |
| Generously beveled wire entry prevents bent back strands when inserting conductor into barrel |
| Inspection window to visually assure full conductor insertion |
| American bureau of shipping approved |
| 500 kcmil (Class G, H, I, K, M)/535.3 kcmil (diesel locomotive) |
