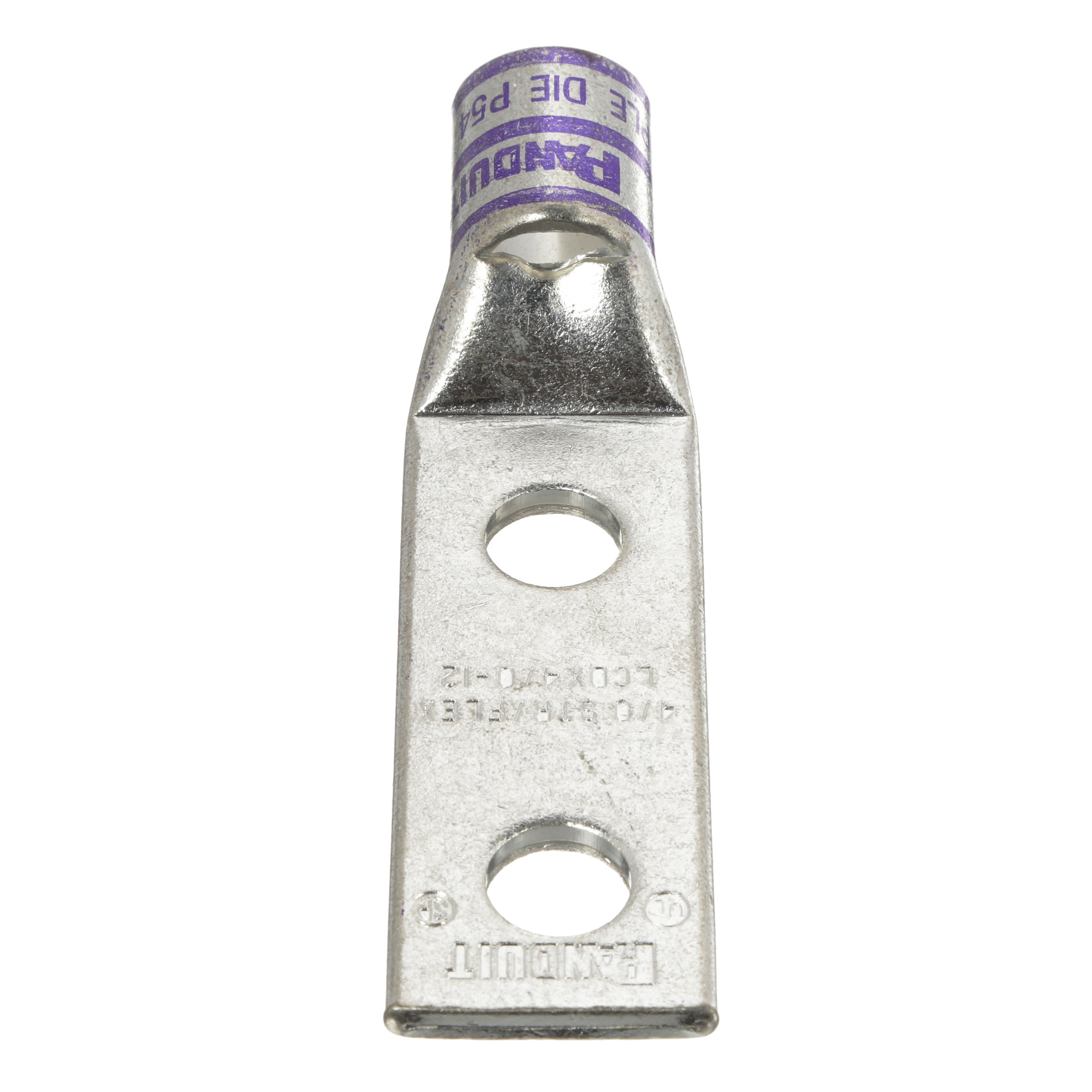

Panduit® LCDX4/0-12-X Pan-Lug™ LCD 2-Hole Compression Lug With Inspection Window, 4/0 AWG Copper Conductor, 1/2 in Stud, P54, Copper
Custom_Product_Images_Illustration
Panduit® LCDX4/0-12-X Pan-Lug™ LCD 2-Hole Compression Lug With Inspection Window, 4/0 AWG Copper Conductor, 1/2 in Stud, P54, Copper
SKU70207
MFGR #LCDX4/0-12-X
Your Cost: $29.5277/ea($2,952.77 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.65 in ID x 0.65 in OD x 1.03 in L Barrel Type Standard with Inspection Window Buy American Compliant Y Catalog Number LCDX4/0-12-X Color Purple Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.2700 lb Gross Weight per Pack Metric 1.21 Gross Weight UOM Metric kg Height 3.45 in Height [Metric] 8.7630 cm Length 5.65 in Length [Metric] 14.3510 cm Mounting 1.06 Mounting Hole Size 1-1/16 in Number Of Holes 2 Overall Length 4.52 in Returnable Y Series LCDX Size 4/0 AWG Class B, C, G, H, I, K, M and DLO Specifications 2.9375 in L Wire Strip Standard UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL Listed Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 1.19 in W x 0.16 in THK Tongue Type Straight Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498342391 UPC 12 07498342391 Voltage Rating 35 V Width 3.50 in Width [Metric] 8.8900 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 4/0 AWG Class B, C, G, H, I, K, M and DLO Conductor Type Copper Die Code P54 Material Tin-Plated Copper Stud Size 1/2 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion For use with flexible, extra flexible and code stranded copper conductors Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive Copper code/flex cable 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.65 in ID x 0.65 in OD x 1.03 in L |
| Barrel Type | Standard with Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCDX4/0-12-X |
| Color | Purple |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.2700 lb |
| Gross Weight per Pack Metric | 1.21 |
| Gross Weight UOM Metric | kg |
| Height | 3.45 in |
| Height [Metric] | 8.7630 cm |
| Length | 5.65 in |
| Length [Metric] | 14.3510 cm |
| Mounting | 1.06 |
| Mounting Hole Size | 1-1/16 in |
| Number Of Holes | 2 |
| Overall Length | 4.52 in |
| Returnable | Y |
| Series | LCDX |
| Size | 4/0 AWG Class B, C, G, H, I, K, M and DLO |
| Specifications | 2.9375 in L Wire Strip |
| Standard | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL Listed |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 1.19 in W x 0.16 in THK |
| Tongue Type | Straight |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498342391 |
| UPC 12 | 07498342391 |
| Voltage Rating | 35 V |
| Width | 3.50 in |
| Width [Metric] | 8.8900 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 4/0 AWG Class B, C, G, H, I, K, M and DLO |
| Conductor Type | Copper |
| Die Code | P54 |
| Material | Tin-Plated Copper |
| Stud Size | 1/2 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with flexible, extra flexible and code stranded copper conductors |
| Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive |
| Copper code/flex cable |
| 1-3/4 in Stud Hole Spacing |
