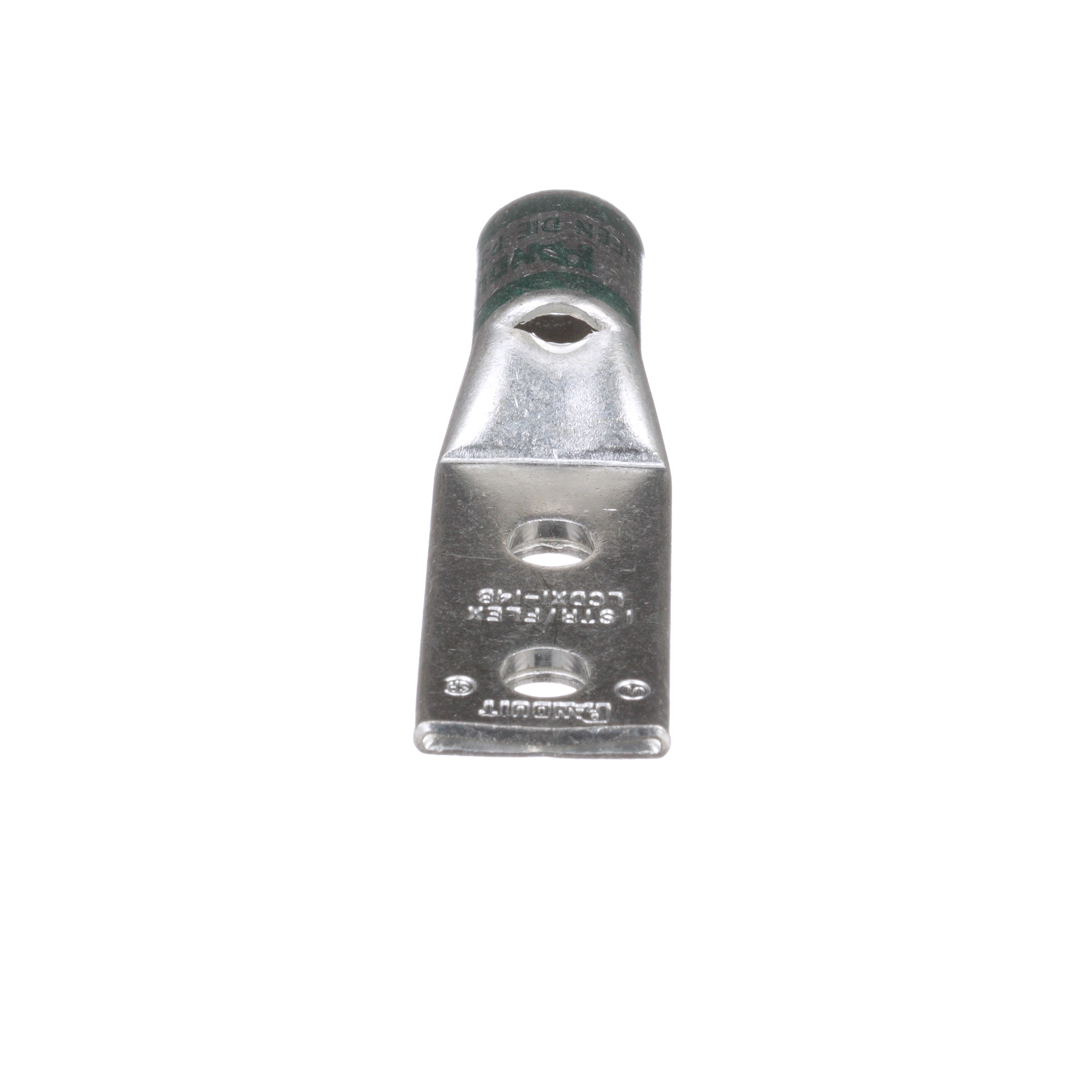

Panduit® LCDX1-14B-X Pan-Lug™ LCDX 2-Hole Lug Compression Connector With Window Lug, 1 AWG, 1/4 in Stud, P37, Tin Plated Copper
Custom_Product_Images_Illustration
Panduit® LCDX1-14B-X Pan-Lug™ LCDX 2-Hole Lug Compression Connector With Window Lug, 1 AWG, 1/4 in Stud, P37, Tin Plated Copper
SKU635260
MFGR #LCDX1-14B-X
Your Cost: $14.5317/ea($1,453.17 / c)
Panduit® Pan-Lug™ Lug Compression Connector, 2-Hole, Series: LCDX, 1 AWG Conductor, Die Code: P37, 35 kVAC, 1/4 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 2.42 in Overall Length, Standard, 0.66 in L Barrel, 90 deg C, 4.2828 in Mounting Hole, Tin Plated Copper, Green
Panduit® Pan-Lug™ Lug Compression Connector, 2-Hole, Series: LCDX, 1 AWG Conductor, Die Code: P37, 35 kVAC, 1/4 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 2.42 in Overall Length, Standard, 0.66 in L Barrel, 90 deg C, 4.2828 in Mounting Hole, Tin Plated Copper, Green
ARRA Compliant Y Barrel Size 0.66 in L Barrel Type Standard Buy American Compliant Y Catalog Number LCDX1-14B-X Color Green Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Height 3.30 in Height [Metric] 8.3820 cm Length 4.80 in Length [Metric] 12.1920 cm Mounting 42,828 Mounting Hole Size 4.2828 in Number Of Holes 2 Overall Length 2.42 in Returnable Y Series LCDX Size #1 AWG Class B, C, G, H, I, K, M and DLO Standard CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved Standards ARRA CompliantBuy American Act CompliantRoHS CompliantASTM B545-97 Class CcULus ListedUL 486A, 486B File No. E52164CSA C22.2 File No. 65-13 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.76 in W x 0.12 in THK Tongue Type Straight Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498342732 UPC 12 07498342732 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 1 AWG Die Code P37 Material Tin-Plated Copper Stud Size 1/4 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.66 in L |
| Barrel Type | Standard |
| Buy American Compliant | Y |
| Catalog Number | LCDX1-14B-X |
| Color | Green |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Height | 3.30 in |
| Height [Metric] | 8.3820 cm |
| Length | 4.80 in |
| Length [Metric] | 12.1920 cm |
| Mounting | 42,828 |
| Mounting Hole Size | 4.2828 in |
| Number Of Holes | 2 |
| Overall Length | 2.42 in |
| Returnable | Y |
| Series | LCDX |
| Size | #1 AWG Class B, C, G, H, I, K, M and DLO |
| Standard | CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantASTM B545-97 Class CcULus ListedUL 486A, 486B File No. E52164CSA C22.2 File No. 65-13 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.76 in W x 0.12 in THK |
| Tongue Type | Straight |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498342732 |
| UPC 12 | 07498342732 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 1 AWG |
| Die Code | P37 |
| Material | Tin-Plated Copper |
| Stud Size | 1/4 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
