Panduit®

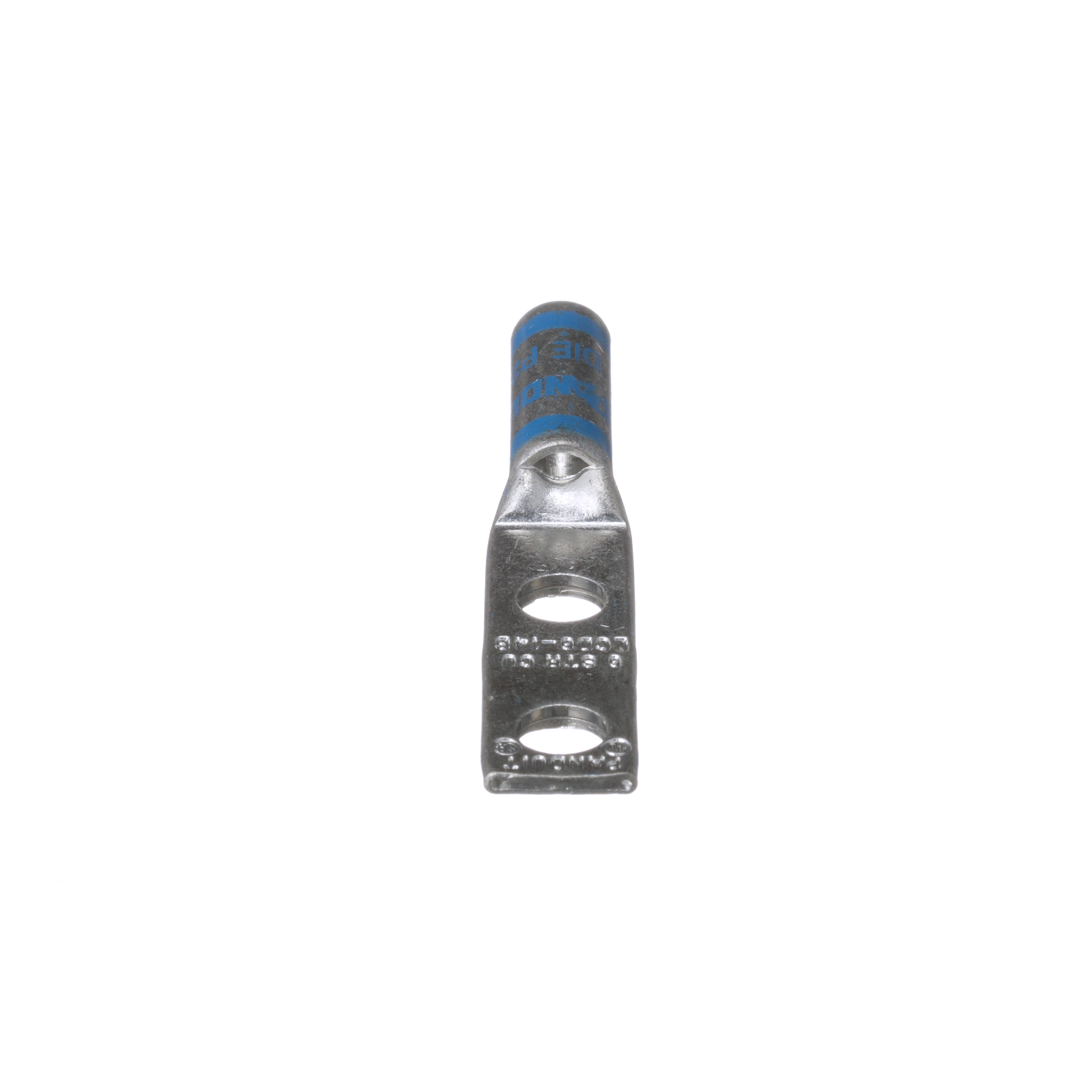

Panduit® LCD6-14B-L LCD 2-Hole Compression Lug Connector With Inspection Window, 6 AWG Copper Conductor, 1/4 in Stud, P24, Copper
Custom_Product_Images_Illustration
Panduit®
Panduit® LCD6-14B-L LCD 2-Hole Compression Lug Connector With Inspection Window, 6 AWG Copper Conductor, 1/4 in Stud, P24, Copper
SKU250690
MFGR #LCD6-14B-L
Your Cost: $10.5685/ea($1,056.85 / c)
Panduit® Compression Lug Connector, 2-Hole, Series: LCD, Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kVAC, 1/4 in Stud, Standard/Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.36 in Overall Length, Standard, 0.81 in L Barrel, 3/4 in Hole Spacing, 7/8 in Wire Stripe Length, 90 deg C, Copper, Blue
Panduit® Compression Lug Connector, 2-Hole, Series: LCD, Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kVAC, 1/4 in Stud, Standard/Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.36 in Overall Length, Standard, 0.81 in L Barrel, 3/4 in Hole Spacing, 7/8 in Wire Stripe Length, 90 deg C, Copper, Blue
ARRA Compliant Y Barrel Type Standard Barrel Length with Inspection Window Buy American Compliant Y Catalog Number LCD6-14B-L Color Blue Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0300 lb Gross Weight per Pack Metric 0.63 Gross Weight UOM Metric kg Height 3.35 in Height [Metric] 8.5090 cm Length 4.75 in Length [Metric] 12.0650 cm Mounting 7/8 Number Of Holes 2 Returnable Y Size #6 AWG Code Standard CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 Standards UL 486A, 486B Listed, CSA C22.2 NO 65-13 Certified, RoHS Compliant Sub Brand Pan-Lug?„? Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498338311 UPC 12 07498338311 Voltage Rating 35,000 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Material Tin-Plated Copper Stud Size 1/4 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plated to inhibit corrosion Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion American bureau of shipping approved Tested by Telcordia meets NEBS level 3 320 u in tin-plating Meets ASTM B545-97, Class C
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCD6-14B-L |
| Color | Blue |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0300 lb |
| Gross Weight per Pack Metric | 0.63 |
| Gross Weight UOM Metric | kg |
| Height | 3.35 in |
| Height [Metric] | 8.5090 cm |
| Length | 4.75 in |
| Length [Metric] | 12.0650 cm |
| Mounting | 7/8 |
| Number Of Holes | 2 |
| Returnable | Y |
| Size | #6 AWG Code |
| Standard | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Standards | UL 486A, 486B Listed, CSA C22.2 NO 65-13 Certified, RoHS Compliant |
| Sub Brand | Pan-Lug?„? |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498338311 |
| UPC 12 | 07498338311 |
| Voltage Rating | 35,000 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Material | Tin-Plated Copper |
| Stud Size | 1/4 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| American bureau of shipping approved |
| Tested by Telcordia meets NEBS level 3 |
| 320 u in tin-plating Meets ASTM B545-97, Class C |
