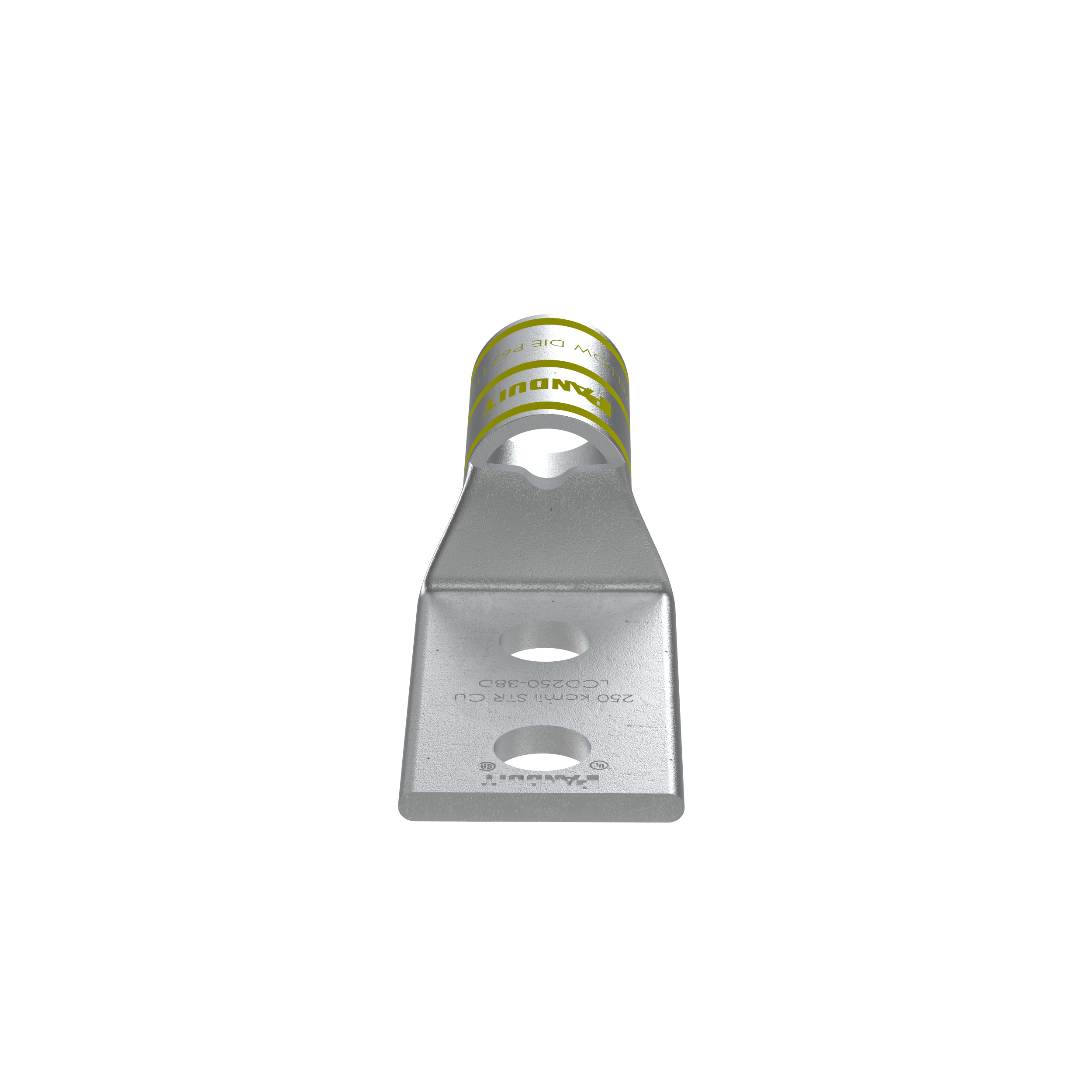

Panduit® LCD250-38D-X LCD 2-Hole Compression Lug Connector With Inspection Window, 250 kcmil Copper Conductor, 3/8 in Stud, P62
Custom_Product_Images_Illustration
Panduit® LCD250-38D-X LCD 2-Hole Compression Lug Connector With Inspection Window, 250 kcmil Copper Conductor, 3/8 in Stud, P62
SKU63090
MFGR #LCD250-38D-X
Your Cost: $30.9844/ea($3,098.44 / c)
Panduit® Compression Lug Connector, 2-Hole, Series: LCD, Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kVAC, 3/8 in Stud, Standard/Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 3.54 in Overall Length, Standard, 1-1/4 in L Barrel, 1 in Hole Spacing, 1-5/16 in Wire Stripe Length, 90 deg C, Copper, Yellow
Panduit® Compression Lug Connector, 2-Hole, Series: LCD, Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kVAC, 3/8 in Stud, Standard/Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 3.54 in Overall Length, Standard, 1-1/4 in L Barrel, 1 in Hole Spacing, 1-5/16 in Wire Stripe Length, 90 deg C, Copper, Yellow
ARRA Compliant Y Barrel Size 0.63 in ID x 0.77 in OD x 1.25 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCD250-38D-X Color Yellow Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 0.91 Gross Weight UOM Metric kg Height 3.20 in Height [Metric] 8.1280 cm Length 5.80 in Length [Metric] 14.7320 cm Mounting 1-5/16 Mounting Hole Size 1-5/16 in Number Of Holes 2 Overall Length 3.54 in Returnable Y Series LCD Size 250 kcmil Code Specifications 1-5/16 in L Wire Strip, 1 in Stud Hole Spacing Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedUL 486A, 486BCSA C22.2 No. 65-13UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 1.17 in W x 0.14 in THK Tongue Type Standard Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498338332 UPC 12 074983383320 Voltage Rating 35 kV Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 250 kcmil Conductor Type Copper Die Code P62 Material Tin-Plated Copper Stud Size 3/8 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Tin plated to inhibit corrosion Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion American bureau of shipping approved Tested by Telcordia meets NEBS level 3 320 u in tin-plating Meets ASTM B545-97, Class C
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.63 in ID x 0.77 in OD x 1.25 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCD250-38D-X |
| Color | Yellow |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 0.91 |
| Gross Weight UOM Metric | kg |
| Height | 3.20 in |
| Height [Metric] | 8.1280 cm |
| Length | 5.80 in |
| Length [Metric] | 14.7320 cm |
| Mounting | 1-5/16 |
| Mounting Hole Size | 1-5/16 in |
| Number Of Holes | 2 |
| Overall Length | 3.54 in |
| Returnable | Y |
| Series | LCD |
| Size | 250 kcmil Code |
| Specifications | 1-5/16 in L Wire Strip, 1 in Stud Hole Spacing |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedUL 486A, 486BCSA C22.2 No. 65-13UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 1.17 in W x 0.14 in THK |
| Tongue Type | Standard Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498338332 |
| UPC 12 | 074983383320 |
| Voltage Rating | 35 kV |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 250 kcmil |
| Conductor Type | Copper |
| Die Code | P62 |
| Material | Tin-Plated Copper |
| Stud Size | 3/8 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| American bureau of shipping approved |
| Tested by Telcordia meets NEBS level 3 |
| 320 u in tin-plating Meets ASTM B545-97, Class C |
