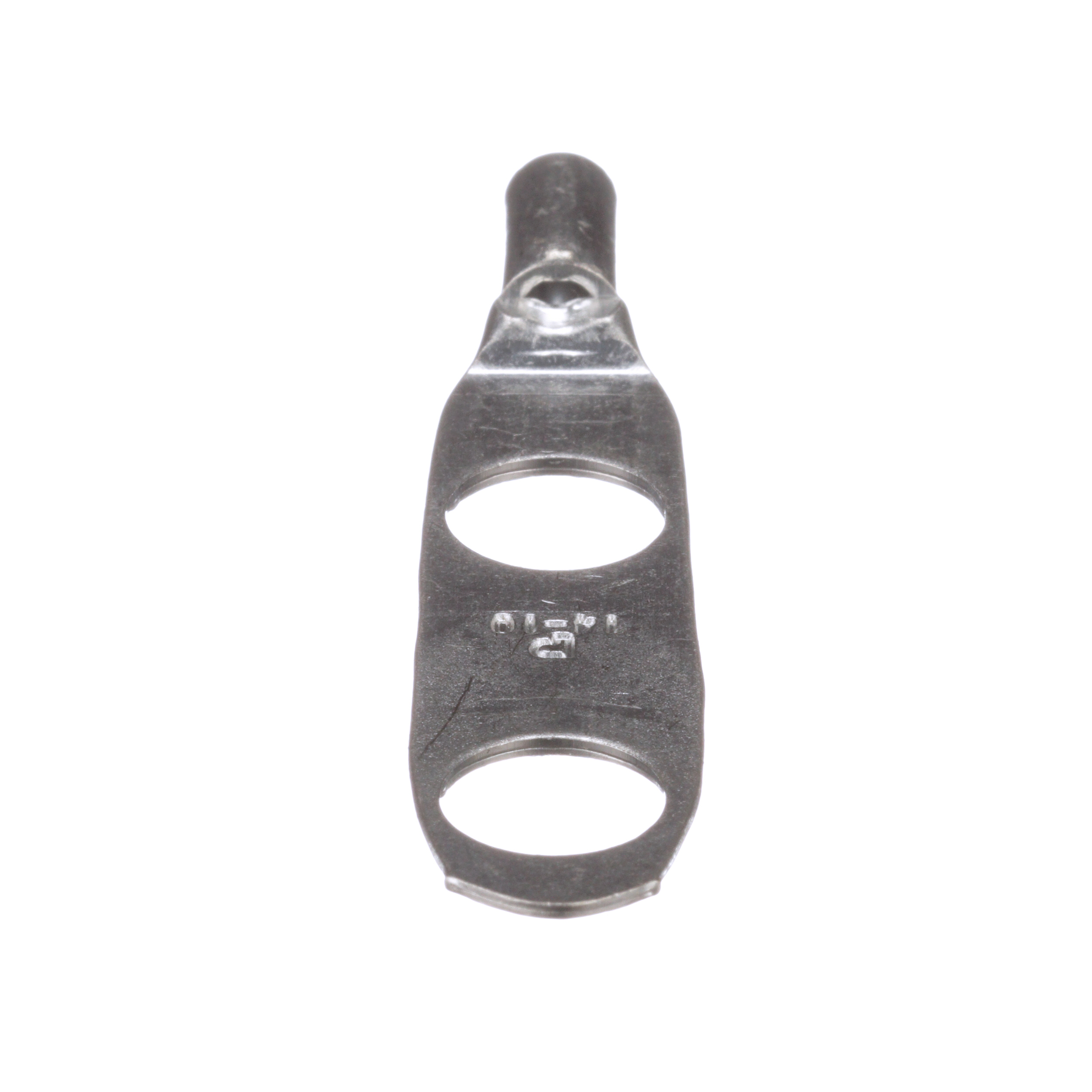

Panduit® LCD10-38D-L Pan-Lug™ LCD 2-Hole Compression Lug With Inspection Window, 14 to 10 AWG Copper Conductor, 3/8 in Stud, Copper
Custom_Product_Images_Illustration
Panduit® LCD10-38D-L Pan-Lug™ LCD 2-Hole Compression Lug With Inspection Window, 14 to 10 AWG Copper Conductor, 3/8 in Stud, Copper
SKU540678
MFGR #LCD10-38D-L
Your Cost: $15.7713/ea($1,577.13 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.13 in ID x 0.22 in OD x 0.38 in L Barrel Type Standard With Inspection Window Buy American Compliant Y Catalog Number LCD10-38D-L Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0100 lb Gross Weight per Pack Metric 0.32 Gross Weight UOM Metric kg Height 2.00 in Height [Metric] 5.0800 cm Length 4.10 in Length [Metric] 10.4140 cm Mounting 7/16 Mounting Hole Size 42552 in Number Of Holes 2 Overall Length 2.38 in Returnable Y Series LCD Size #14 — #10 AWG Code STR, #12 — #10 AWG Code SOL Specifications 1 in Stud Hole Spacing, 7/16 in L Wire Strip Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.56 in W x 0.04 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498397380 UPC 12 07498397380 Voltage Rating 35 kV Width 2.10 in Width [Metric] 5.3340 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 14 to 10 AWG, 12 to 10 AWG Conductor Type Solid/Stranded Copper Material Tin-Plated Copper Stud Size 3/8 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Tin plated to inhibit corrosion Inspection window to assure complete conductor insertion For use with stranded copper conductors 14 - 10 AWG stranded, 12 - 10 AWG solid conductor size 1 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.13 in ID x 0.22 in OD x 0.38 in L |
| Barrel Type | Standard With Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCD10-38D-L |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0100 lb |
| Gross Weight per Pack Metric | 0.32 |
| Gross Weight UOM Metric | kg |
| Height | 2.00 in |
| Height [Metric] | 5.0800 cm |
| Length | 4.10 in |
| Length [Metric] | 10.4140 cm |
| Mounting | 7/16 |
| Mounting Hole Size | 42552 in |
| Number Of Holes | 2 |
| Overall Length | 2.38 in |
| Returnable | Y |
| Series | LCD |
| Size | #14 — #10 AWG Code STR, #12 — #10 AWG Code SOL |
| Specifications | 1 in Stud Hole Spacing, 7/16 in L Wire Strip |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.56 in W x 0.04 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498397380 |
| UPC 12 | 07498397380 |
| Voltage Rating | 35 kV |
| Width | 2.10 in |
| Width [Metric] | 5.3340 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 14 to 10 AWG, 12 to 10 AWG |
| Conductor Type | Solid/Stranded Copper |
| Material | Tin-Plated Copper |
| Stud Size | 3/8 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Tin plated to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with stranded copper conductors |
| 14 - 10 AWG stranded, 12 - 10 AWG solid conductor size |
| 1 in Stud Hole Spacing |
