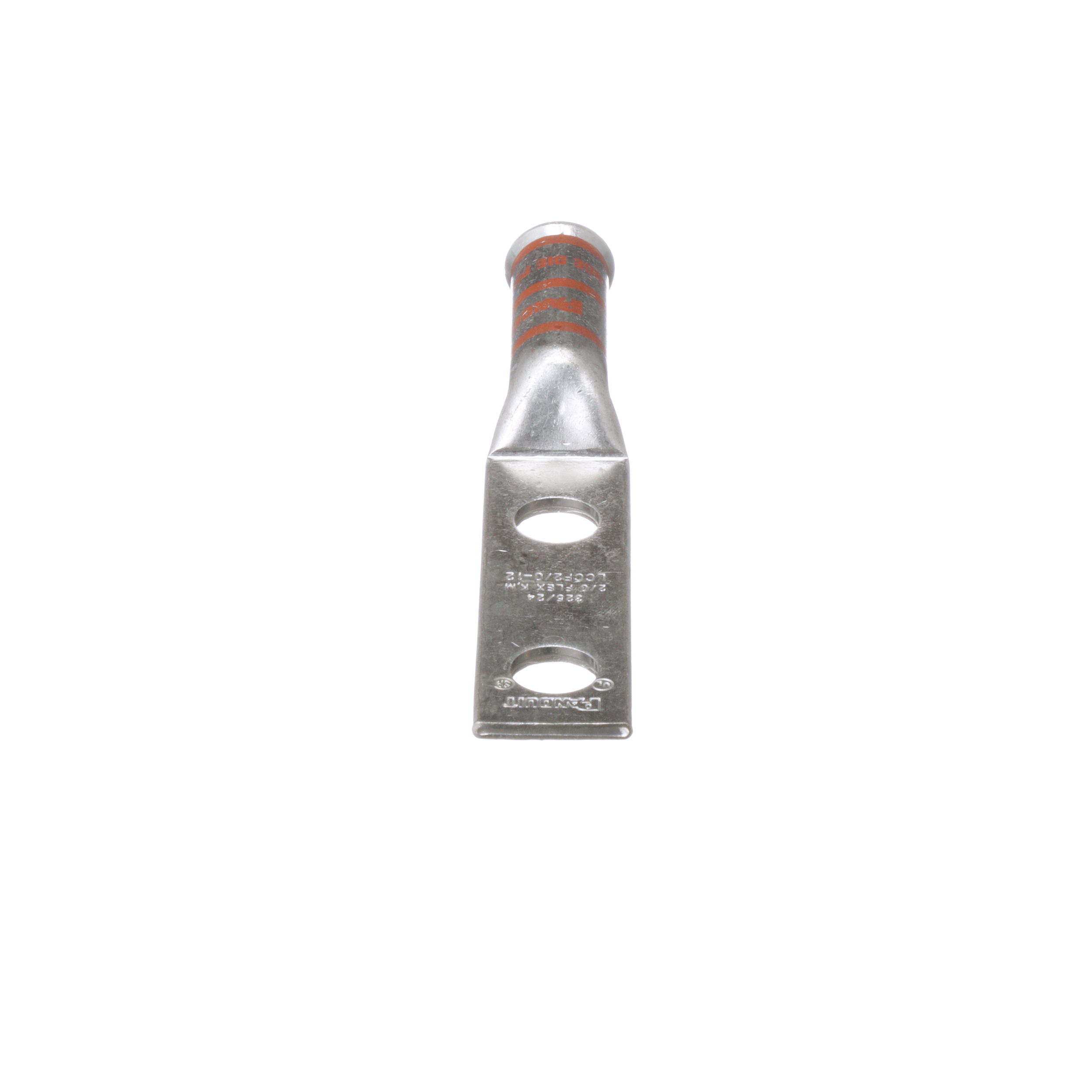

Panduit® LCCF2/0-12-X Pan-Lug™ LCC 2-Hole Compression Lug Without Inspection Window, 2/0 AWG Copper Conductor, 1/2 in Stud, P50
Custom_Product_Images_Illustration
Panduit® LCCF2/0-12-X Pan-Lug™ LCC 2-Hole Compression Lug Without Inspection Window, 2/0 AWG Copper Conductor, 1/2 in Stud, P50
SKU766137
MFGR #LCCF2/0-12-X
Your Cost: $27.3233/ea($2,732.33 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.51 in ID x 0.73 in OD x 1.5 in L Barrel Type Flared/Long without Inspection Window Buy American Compliant Y Catalog Number LCCF2/0-12-X Color Orange Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.1900 lb Gross Weight per Pack Metric 0.84 Gross Weight UOM Metric kg Height 3.30 in Height [Metric] 8.3820 cm Length 5.70 in Length [Metric] 14.4780 cm Mounting 1.56 Mounting Hole Size 1-9/16 in Number Of Holes 2 Overall Length 5.03 in Returnable Y Series LCCF Size 2/0 AWG Class K and M and DLO Specifications 1-9/16 in Wire Strip Length Standard CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3UL Listed Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.96 in W x 0.13 in THK Tongue Type Straight Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498375313 UPC 12 07498375313 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 2/0 AWG Class K, M and DLO Conductor Type Copper Die Code P50 Material Tin-Plated Copper Stud Size 1/2 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion For use with flexible, extra flexible and code stranded copper conductors Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive Copper code/flex cable 1-3/4 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.51 in ID x 0.73 in OD x 1.5 in L |
| Barrel Type | Flared/Long without Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCCF2/0-12-X |
| Color | Orange |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.1900 lb |
| Gross Weight per Pack Metric | 0.84 |
| Gross Weight UOM Metric | kg |
| Height | 3.30 in |
| Height [Metric] | 8.3820 cm |
| Length | 5.70 in |
| Length [Metric] | 14.4780 cm |
| Mounting | 1.56 |
| Mounting Hole Size | 1-9/16 in |
| Number Of Holes | 2 |
| Overall Length | 5.03 in |
| Returnable | Y |
| Series | LCCF |
| Size | 2/0 AWG Class K and M and DLO |
| Specifications | 1-9/16 in Wire Strip Length |
| Standard | CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3UL Listed |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.96 in W x 0.13 in THK |
| Tongue Type | Straight |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498375313 |
| UPC 12 | 07498375313 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 2/0 AWG Class K, M and DLO |
| Conductor Type | Copper |
| Die Code | P50 |
| Material | Tin-Plated Copper |
| Stud Size | 1/2 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with flexible, extra flexible and code stranded copper conductors |
| Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive |
| Copper code/flex cable |
| 1-3/4 in Stud Hole Spacing |
