Panduit®

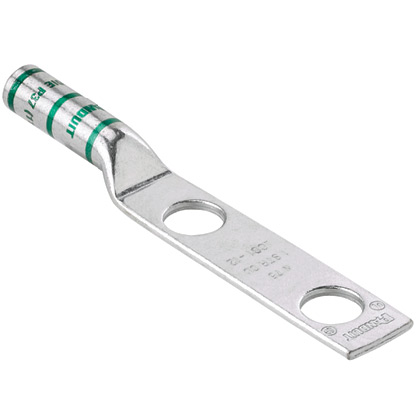

Panduit® LCC4-14A-L Pan-Lug™ LCC 2-Hole Compression Lug Without Inspection Window, 4 to 3 AWG Copper Conductor, 1/4 in Stud, P29
Custom_Product_Images_Illustration
Panduit®
Panduit® LCC4-14A-L Pan-Lug™ LCC 2-Hole Compression Lug Without Inspection Window, 4 to 3 AWG Copper Conductor, 1/4 in Stud, P29
SKU6108
MFGR #LCC4-14A-L
Your Cost: $13.5481/ea
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.28 in ID x 0.38 in OD x 1.05 in L Barrel Type Long without Inspection Window Buy American Compliant Y Catalog Number LCC4-14A-L Color Gray Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0400 lb Gross Weight per Pack Metric 0.90 Gross Weight UOM Metric kg Height 3.35 in Height [Metric] 8.5090 cm Length 5.80 in Length [Metric] 14.7320 cm Mounting 1-1/8 Mounting Hole Size 1-1/8 in Number Of Holes 2 Overall Length 2.58 in Returnable Y Series LCC Size #4 — #3 AWG Code STR, #2 AWG Code SOL Specifications 1-1/8 in L Wire Strip, 5/8 in Stud Hole Spacing Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.55 in W x 0.09 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498338252 UPC 12 07498338252 Voltage Rating 35 kV Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 4 to 3 AWG, 2 AWG Conductor Type Solid/Stranded Copper Die Code P29 Material Tin-Plated Copper Stud Size 1/4 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion For use with stranded copper conductors 4 - 3 AWG stranded, 2 AWG solid conductor size 5/8 in Stud Hole Spacing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.28 in ID x 0.38 in OD x 1.05 in L |
| Barrel Type | Long without Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCC4-14A-L |
| Color | Gray |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0400 lb |
| Gross Weight per Pack Metric | 0.90 |
| Gross Weight UOM Metric | kg |
| Height | 3.35 in |
| Height [Metric] | 8.5090 cm |
| Length | 5.80 in |
| Length [Metric] | 14.7320 cm |
| Mounting | 1-1/8 |
| Mounting Hole Size | 1-1/8 in |
| Number Of Holes | 2 |
| Overall Length | 2.58 in |
| Returnable | Y |
| Series | LCC |
| Size | #4 — #3 AWG Code STR, #2 AWG Code SOL |
| Specifications | 1-1/8 in L Wire Strip, 5/8 in Stud Hole Spacing |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164Tested by Telcordia-Meets NEBS Level 3 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.55 in W x 0.09 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498338252 |
| UPC 12 | 07498338252 |
| Voltage Rating | 35 kV |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 4 to 3 AWG, 2 AWG |
| Conductor Type | Solid/Stranded Copper |
| Die Code | P29 |
| Material | Tin-Plated Copper |
| Stud Size | 1/4 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with stranded copper conductors |
| 4 - 3 AWG stranded, 2 AWG solid conductor size |
| 5/8 in Stud Hole Spacing |
