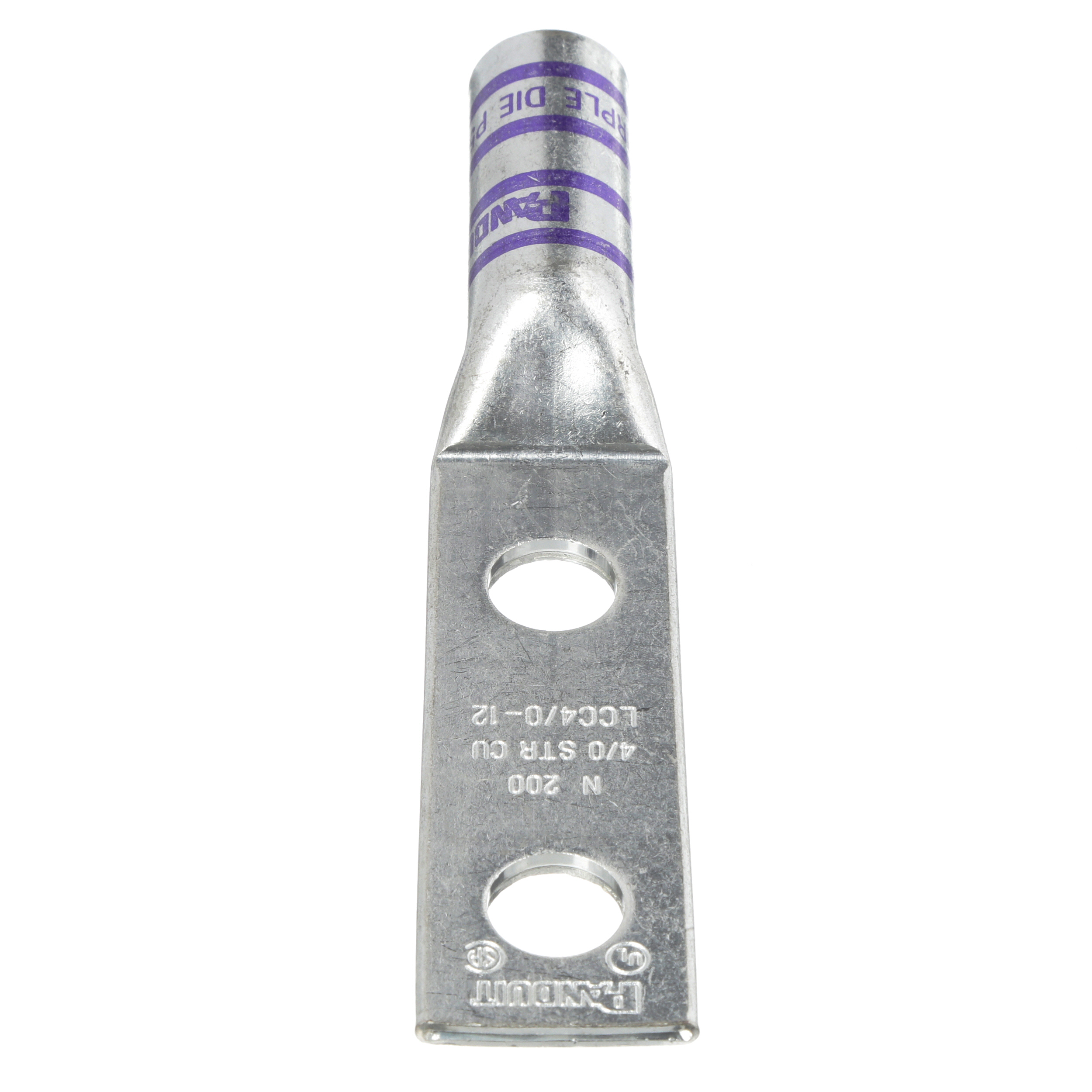

Panduit® LCC4/0-12-X Pan-Lug™ LCC 2-Hole Compression Lug Without Inspection Window, 4/0 AWG Copper Conductor, 1/2 in Stud, P54
Lug Compression Connectors
7090
MFG #: LCC4/0-12-X
Panduit®
1028.94000
/ ea
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
- Full Eng Drawing URL - LCC4_0-38-X.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions URL - N-PCT-PMPI-62-PC--REV10--ENG.pdf(Install Instructions URL)
- Install Instructions 1 URL - 10965_F13Z0UXIGEOQB8L6.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 10965_B27ZRDH3YQ1SX5MP.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - C-PCLCC4-0-12-X--ENG.pdf(Install Instructions 1 URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4(Video)
- Video - http://www.panduit.com/heiler/Videos/M-PCUP65CRIMP--HIR-ENG.mp4(Video)
- Tech Drawing URL - 10965_HE5XV98QMZ063RAB.pdf(Tech Drawing URL)
- Spec Sheet URL - C-PCLCC4-0-12-X--ENG.pdf(Spec Sheet URL)
- Tech Bulletin URL - D-PCCB16--WW-ENG-PneumaticCrimpingTool.pdf(Tech Bulletin URL)
- Tech Drawing URL - 10965_X1Z0K3PR2JS7LVYW.pdf(Tech Drawing URL)
- Tech Bulletin URL - 10965_4HBSMXIT3RPVYJL0.pdf(Tech Bulletin URL)
- Features
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with stranded copper conductors |
| 1-3/4 in Stud Hole Spacing |
| Electro Tin Plated Copper |
