Panduit®

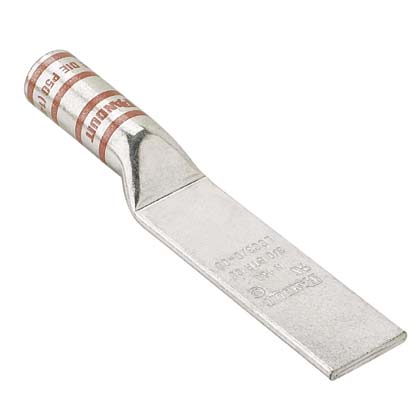

Panduit® LCC4/0-00-X Pan-Lug™ LCC 2-Hole Compression Lug Without Inspection Window, 4/0 AWG Copper Conductor, P54, Copper
Custom_Product_Images_Illustration
Panduit®
Panduit® LCC4/0-00-X Pan-Lug™ LCC 2-Hole Compression Lug Without Inspection Window, 4/0 AWG Copper Conductor, P54, Copper
SKU651731
MFGR #LCC4/0-00-X
Your Cost: $29.68/ea($2,968.00 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Buy American Compliant Y Catalog Number LCC4/0-00-X Color Purple Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 1.12 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 7.90 in Length [Metric] 20.0660 cm Mounting 1.63 Number Of Holes 0 Returnable Y Size 4/0 AWG Code Standard CSA certified C22.2 No. 65-13, UL Recognized to 486A-486B File #E52164 Standards UL File No. E52164, CSA C22.2 No. 65-03, American Bureau Approved, NEBS Level 3, RoHS Compliant Sub Brand Pan-Lug?„? Type Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498390206 UPC 12 07498390206 Voltage Rating 35,000 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Material Tin-Plated Copper Stud Size 0 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion For use with stranded copper conductors 1-3/4 in Stud Hole Spacing Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | LCC4/0-00-X |
| Color | Purple |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 1.12 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 7.90 in |
| Length [Metric] | 20.0660 cm |
| Mounting | 1.63 |
| Number Of Holes | 0 |
| Returnable | Y |
| Size | 4/0 AWG Code |
| Standard | CSA certified C22.2 No. 65-13, UL Recognized to 486A-486B File #E52164 |
| Standards | UL File No. E52164, CSA C22.2 No. 65-03, American Bureau Approved, NEBS Level 3, RoHS Compliant |
| Sub Brand | Pan-Lug?„? |
| Type | Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498390206 |
| UPC 12 | 07498390206 |
| Voltage Rating | 35,000 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Material | Tin-Plated Copper |
| Stud Size | 0 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with stranded copper conductors |
| 1-3/4 in Stud Hole Spacing |
| Electro Tin Plated Copper |
