Panduit® LCC350-12-X LCC 2-Hole Compression Lug, 350 kcmil Copper Conductor, 1/2 in Stud, P71, Tin Plated Copper
Lug Compression Connectors
7092
MFG #: LCC350-12-X
Panduit®
3735.50000
/ ea

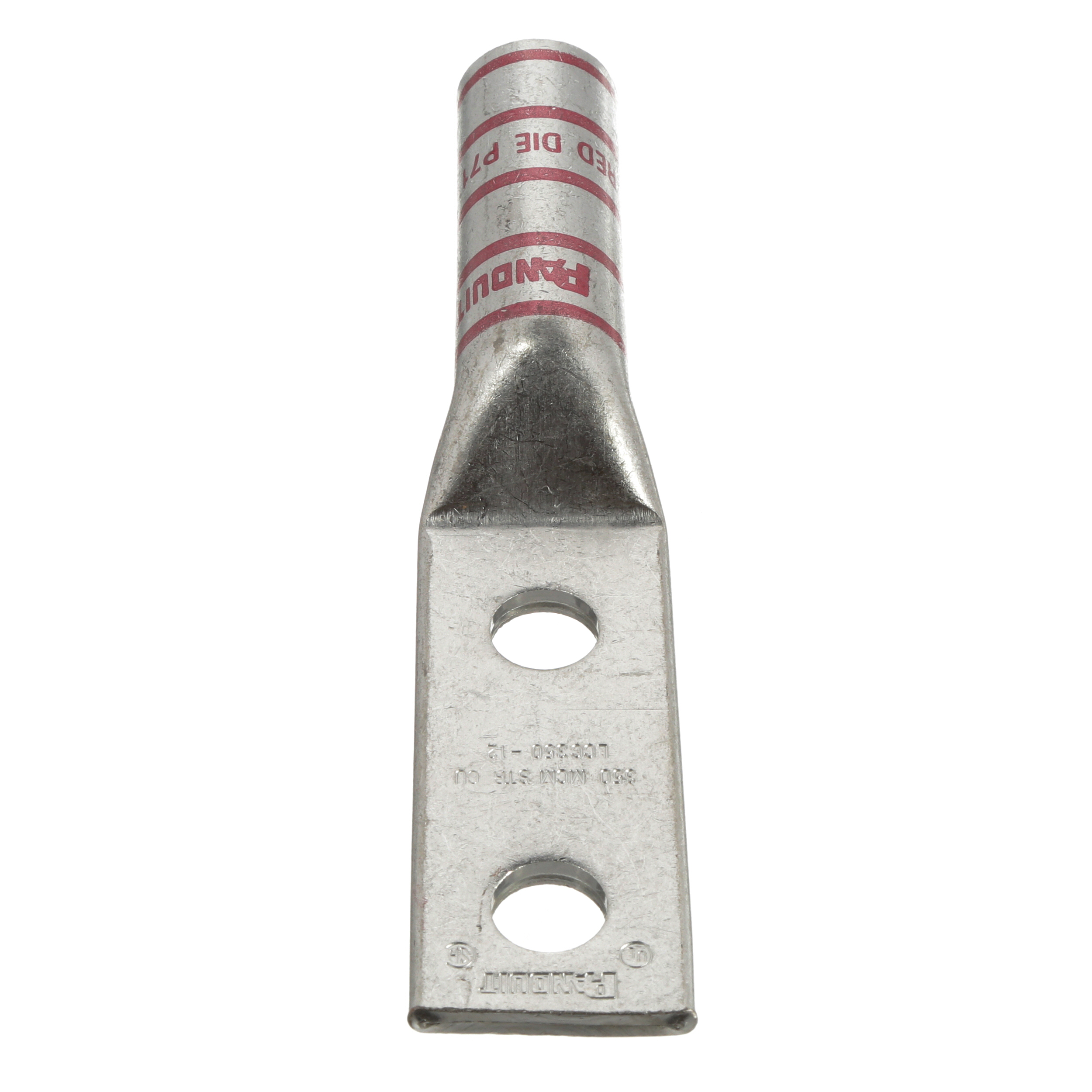

Panduit® Compression Lug, 2-Hole, Series: LCC, Copper Conductor, 350 kcmil Conductor, Die Code: P71, 35 kVAC, 1/2 in Stud, Standard Tongue, 1.28 in W x 0.17 in THK Tongue, 5.99 in Overall Length, Standard, 0.7 in ID x 0.88 in OD x 2.24 in L Barrel, 90 deg C, Tin Plated Copper, Red
- Catalog URL - Panduit_LAA2_14_X_Brochure.pdf(Catalog URL)
- Full Eng Drawing URL - LCC350-38D-X.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_B27ZRDH3YQ1SX5MP.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 10965_F13Z0UXIGEOQB8L6.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - LCC350-12-X.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-PCT-PMPI-62-PC--REV10--ENG.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - LCC350-12-X.pdf(Spec Sheet URL)
- Tech Bulletin URL - 10965_4HBSMXIT3RPVYJL0.pdf(Tech Bulletin URL)
- Tech Drawing URL - 10965_LC2V58FAQDOT06HI.pdf(Tech Drawing URL)
- Tech Bulletin URL - D-PCCB16--WW-ENG-PneumaticCrimpingTool.pdf(Tech Bulletin URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4(Video)
- Video - http://www.panduit.com/heiler/Videos/M-PCUP65CRIMP--HIR-ENG.mp4(Video)
- Features
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Straight angle |
| 2.3125 in L wire strip |
| Inspection window |
| Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Tin plated to inhibit corrosion |
| For use with stranded copper conductors |
| Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance |
| Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments |
| 1.75 in hole spacing |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 VAC |
