Panduit® LCC3/0-12-X LCC 2-Hole Compression Lug Connector Without Inspection Window, 3/0 AWG Copper Conductor, 1/2 in Stud, P50
Lug Compression Connectors
71436
MFG #: LCC3/0-12-X
Panduit®
2308.68000
/ ea

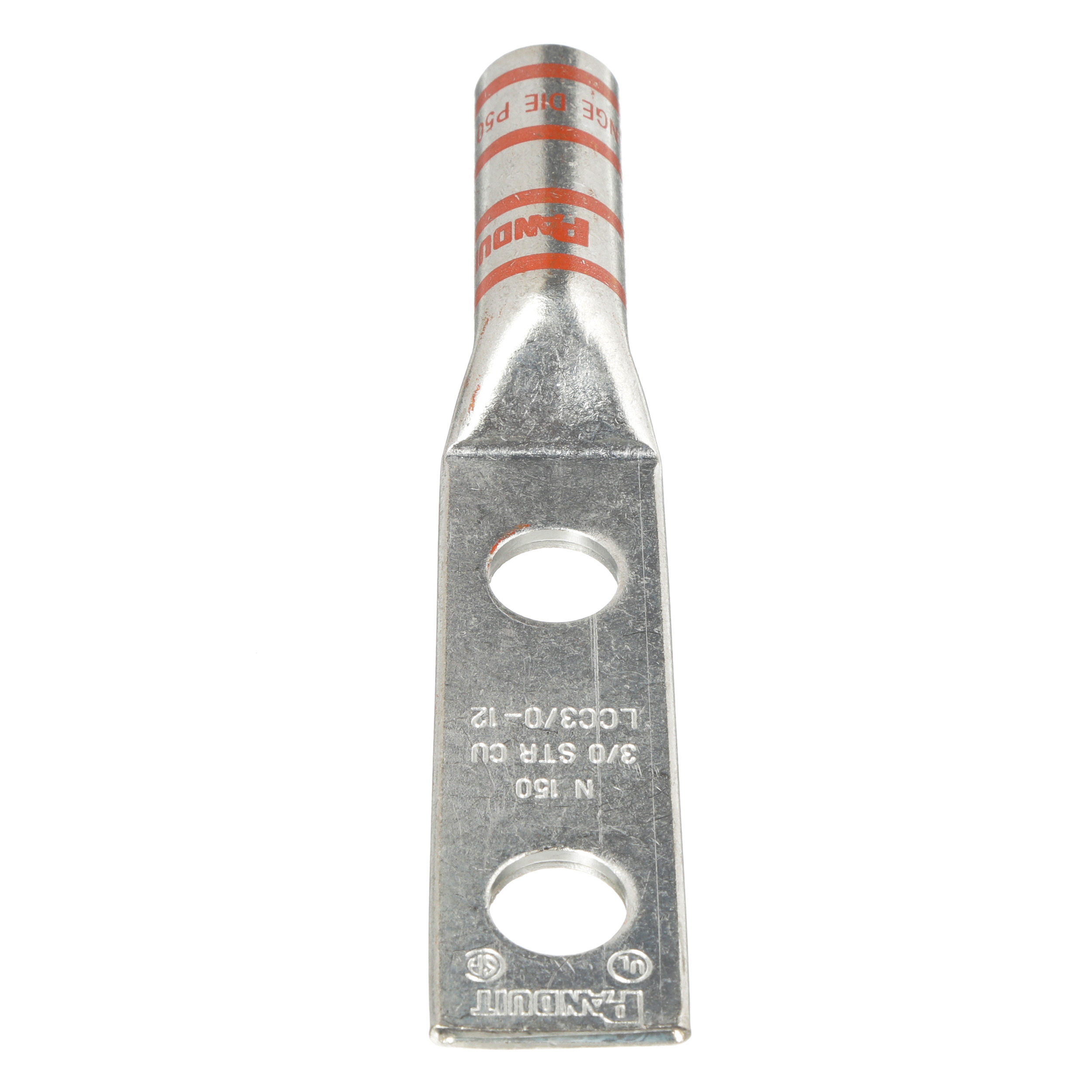

Panduit® Compression Lug Connector, 2-Hole, Series: LCC, Copper Conductor, 3/0 AWG Conductor, Die Code: P50, 35 kVAC, 1/2 in Stud, Standard/Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 5.03 in Overall Length, Long, 1-1/2 in L Barrel, 1-3/4 in Hole Spacing, 1-9/16 in Wire Stripe Length, 90 deg C, Copper, Orange
- Full Eng Drawing URL - LCC350-12-X.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_B27ZRDH3YQ1SX5MP.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 10965_F13Z0UXIGEOQB8L6.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - C-PCLCC30-12-X--ENG.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-PCT-PMPI-62-PC--REV10--ENG.pdf(Install Instructions URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - C-PCLCC30-12-X--ENG.pdf(Spec Sheet URL)
- Tech Bulletin URL - 10965_4HBSMXIT3RPVYJL0.pdf(Tech Bulletin URL)
- Tech Bulletin URL - D-PCCB16--WW-ENG-PneumaticCrimpingTool.pdf(Tech Bulletin URL)
- Video - http://www.panduit.com/heiler/Videos/M-PCUP65CRIMP--HIR-ENG.mp4(Video)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4(Video)
- Tech Drawing URL - 10965_9W3QNBZCLFKXJ6UI.pdf(Tech Drawing URL)
- Features
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance |
| Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments |
| American bureau of shipping approved |
| Tested by Telcordia meets NEBS level 3 |
| 320u in tin-plating meets ASTM B545-97, Class C |
