Panduit® LCBX4/0-12-X Copper Compression Lug, 1 Hole, 4/0 AWG

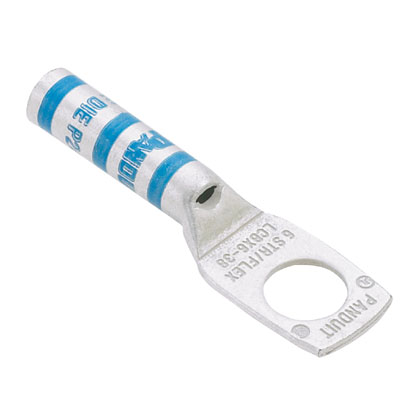

Custom_Product_Images_Illustration
Panduit® LCBX4/0-12-X Copper Compression Lug, 1 Hole, 4/0 AWG
SKU716166
MFGR #LCBX4/0-12-X
Your Cost: $25.2981/ea($2,529.81 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.65 in ID x 0.81 in OD x 2.24 in L Barrel Type Long/Standard with Inspection Window Buy American Compliant Y Catalog Number LCBX4/0-12-X Color Purple Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 1.02 Gross Weight UOM Metric kg Height 3.45 in Height [Metric] 8.7630 cm Length 4.75 in Length [Metric] 12.0650 cm Mounting 2 5/16 Mounting Hole Size 2-5/16 in Number Of Holes 1 Overall Length 3.85 in Returnable Y Series LCBX Size 4/0 AWG Class B, C, G, H, I, K, M and DLO Specifications 2.31 in Wire Strip Length Standard CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL ListedMeets J-STD-607-A and TIA-942 Requirements Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 1.19 in W x 0.16 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498343730 UPC 12 074983437306 Voltage Rating 35 V Width 3.40 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 4/0 AWG Class B, C, G, H, I, K, M and DLO Conductor Type Copper Die Code P54 Material Tin-Plated Copper Stud Size 1/2 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Generously beveled wire entry prevents bent back strands when inserting conductor into barrel Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection Inspection window to visually assure full conductor insertion Tin-plated to inhibit corrosion Copper code/flex cable Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.65 in ID x 0.81 in OD x 2.24 in L |
| Barrel Type | Long/Standard with Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCBX4/0-12-X |
| Color | Purple |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 1.02 |
| Gross Weight UOM Metric | kg |
| Height | 3.45 in |
| Height [Metric] | 8.7630 cm |
| Length | 4.75 in |
| Length [Metric] | 12.0650 cm |
| Mounting | 2 5/16 |
| Mounting Hole Size | 2-5/16 in |
| Number Of Holes | 1 |
| Overall Length | 3.85 in |
| Returnable | Y |
| Series | LCBX |
| Size | 4/0 AWG Class B, C, G, H, I, K, M and DLO |
| Specifications | 2.31 in Wire Strip Length |
| Standard | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL ListedMeets J-STD-607-A and TIA-942 Requirements |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 1.19 in W x 0.16 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498343730 |
| UPC 12 | 074983437306 |
| Voltage Rating | 35 V |
| Width | 3.40 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 4/0 AWG Class B, C, G, H, I, K, M and DLO |
| Conductor Type | Copper |
| Die Code | P54 |
| Material | Tin-Plated Copper |
| Stud Size | 1/2 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive |
| Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance |
| Generously beveled wire entry prevents bent back strands when inserting conductor into barrel |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| Tin-plated to inhibit corrosion |
| Copper code/flex cable |
| Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive |
