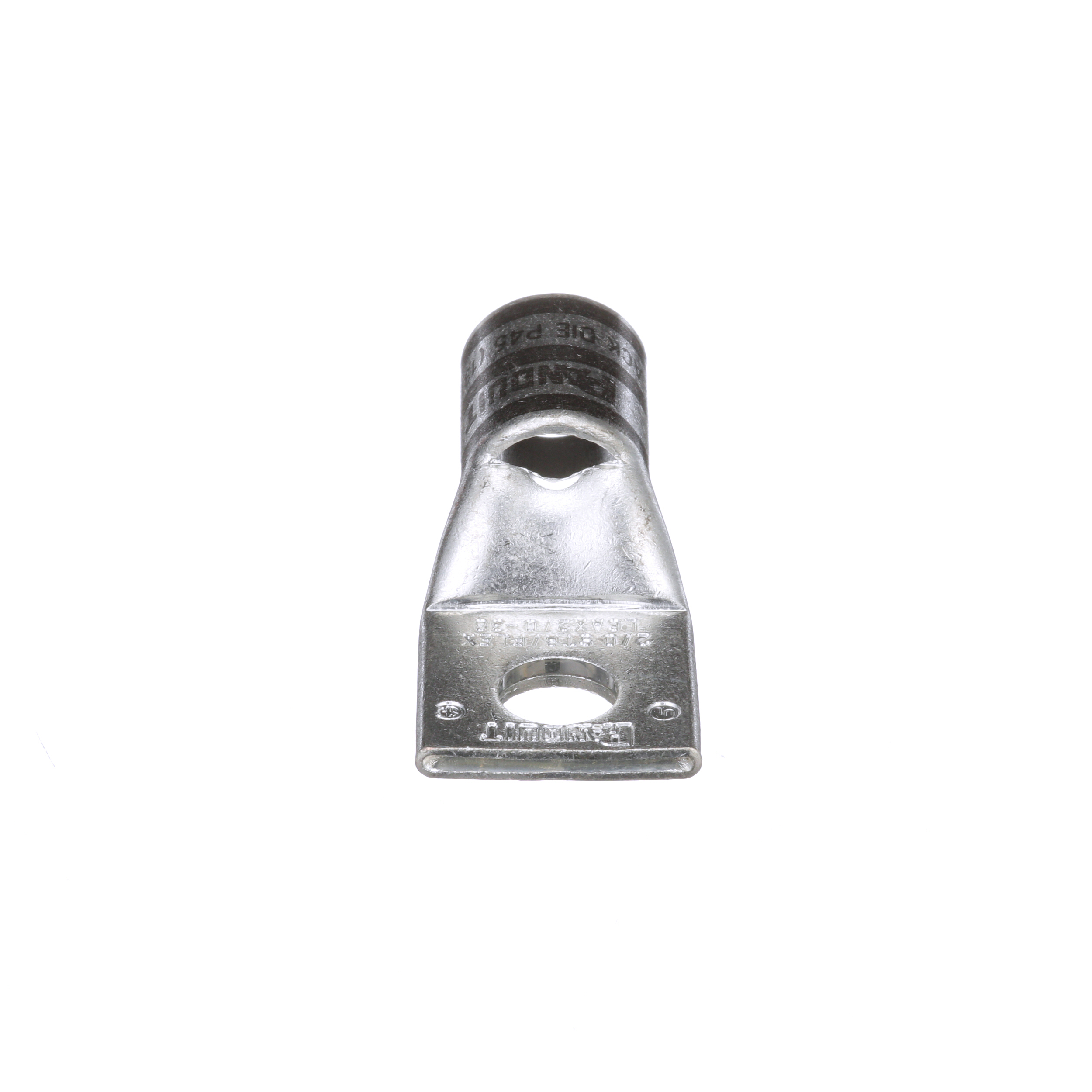

Panduit® LCB2/0-38-X Pan-Lug™ LCB 1-Hole Compression Lug Without Inspection Window, 2/0 AWG Copper Conductor, 3/8 in Stud, P45
Custom_Product_Images_Illustration
Panduit® LCB2/0-38-X Pan-Lug™ LCB 1-Hole Compression Lug Without Inspection Window, 2/0 AWG Copper Conductor, 3/8 in Stud, P45
SKU7071
MFGR #LCB2/0-38-X
Your Cost: $15.4486/ea($1,544.86 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.45 in ID x 0.58 in OD x 1.5 in L Barrel Type Long without Inspection Window Buy American Compliant Y Catalog Number LCB2/0-38-X Color Black Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.1100 lb Gross Weight per Pack Metric 0.48 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.70 in Length [Metric] 11.9380 cm Mounting 1-5/8 Mounting Hole Size 1.56 in Number Of Holes 1 Overall Length 2.82 in Returnable Y Series LCB Size 2/0 AWG Code Specifications 1-9/16 in L Wire Strip, Tin Plated Finish Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS CertifiedNEBS Level 3UL 486AUL 486BUL File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 File No. 65-13 Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.85 in W x 0.13 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498390130 UPC 12 07498390130 Voltage Rating 35 kVA Width 3.35 in Width [Metric] 8.5090 cm Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Conductor Size 2/0 AWG Conductor Type Copper/Stranded Die Code P45 Material Tin-Plated Copper Stud Size 3/8 in Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V For use with stranded copper conductors Electro Tin Plated Copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.45 in ID x 0.58 in OD x 1.5 in L |
| Barrel Type | Long without Inspection Window |
| Buy American Compliant | Y |
| Catalog Number | LCB2/0-38-X |
| Color | Black |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.1100 lb |
| Gross Weight per Pack Metric | 0.48 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.70 in |
| Length [Metric] | 11.9380 cm |
| Mounting | 1-5/8 |
| Mounting Hole Size | 1.56 in |
| Number Of Holes | 1 |
| Overall Length | 2.82 in |
| Returnable | Y |
| Series | LCB |
| Size | 2/0 AWG Code |
| Specifications | 1-9/16 in L Wire Strip, Tin Plated Finish |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS CertifiedNEBS Level 3UL 486AUL 486BUL File No. E52164Tested by Telcordia-Meets NEBS Level 3CSA C22.2 File No. 65-13 |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.85 in W x 0.13 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498390130 |
| UPC 12 | 07498390130 |
| Voltage Rating | 35 kVA |
| Width | 3.35 in |
| Width [Metric] | 8.5090 cm |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Conductor Size | 2/0 AWG |
| Conductor Type | Copper/Stranded |
| Die Code | P45 |
| Material | Tin-Plated Copper |
| Stud Size | 3/8 in |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| For use with stranded copper conductors |
| Electro Tin Plated Copper |
