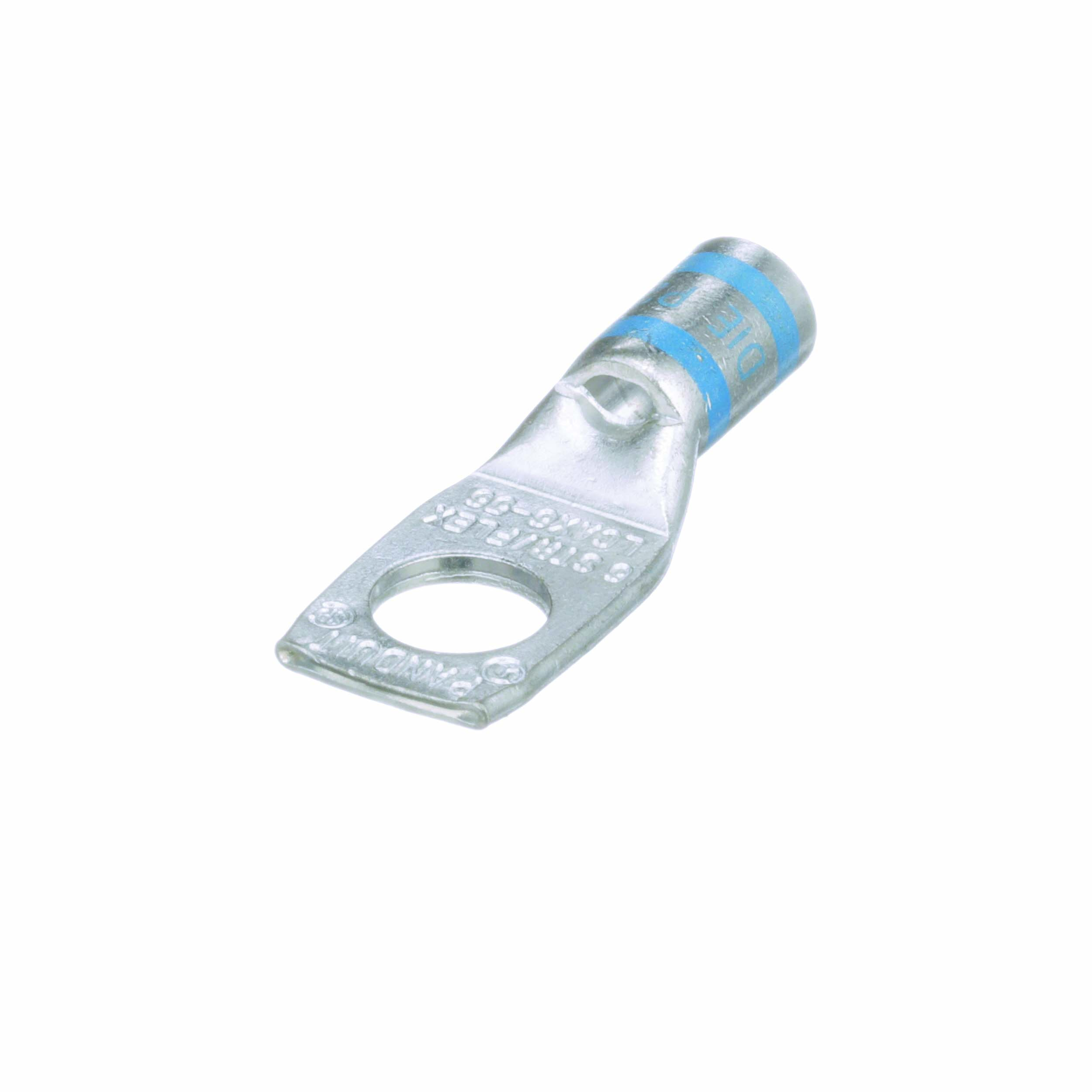

Panduit® LCAX6-56-L Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 6 AWG Copper Conductor, 5/16 in Stud, P24, Copper
Custom_Product_Images_Illustration
Panduit® LCAX6-56-L Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 6 AWG Copper Conductor, 5/16 in Stud, P24, Copper
SKU319728
MFGR #LCAX6-56-L
Your Cost: $4.1822/ea($418.22 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Size 0.22 in ID x 0.31 in OD x 0.48 in L Barrel Type Standard With Inspection Window Brand Panduit® Buy American Compliant Y Catalog Number LCAX6-56-L Color Blue Conductor Size 6 AWG Class B, C, G, H, I, K, M and DLO Conductor Type Copper Country of Origin MEX Currency USD Die Code P24 EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.42 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.60 in Length [Metric] 11.6840 cm Manufacturer Panduit® Material Tin-Plated Copper Mounting 42,614 Mounting Hole Size 9/16 in Number Of Holes 1 Overall Length 1.4 in Returnable Y Series LCAX Size #6 AWG Class B, C, G, H, I, K, M and DLO Specifications 9/16 in L Wire Strip Standard C22.2 No. 65-13, 486A-486B File #E52164, ABS approved Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL Listed Stock Status NONSTOCK Stud Size 5/16 in Sub Brand Pan-Lug?„? Temperature Rating 90 °C Tongue Size 0.56 in W x 0.07 in THK Tongue Type Straight Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498343374 UPC 12 074983433742 Voltage Rating 35 V Width 3.35 in Width [Metric] 8.5090 cm Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion For use with flexible, extra flexible and code stranded copper conductors Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive Copper code/flex cable
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Size | 0.22 in ID x 0.31 in OD x 0.48 in L |
| Barrel Type | Standard With Inspection Window |
| Brand | Panduit® |
| Buy American Compliant | Y |
| Catalog Number | LCAX6-56-L |
| Color | Blue |
| Conductor Size | 6 AWG Class B, C, G, H, I, K, M and DLO |
| Conductor Type | Copper |
| Country of Origin | MEX |
| Currency | USD |
| Die Code | P24 |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.42 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.60 in |
| Length [Metric] | 11.6840 cm |
| Manufacturer | Panduit® |
| Material | Tin-Plated Copper |
| Mounting | 42,614 |
| Mounting Hole Size | 9/16 in |
| Number Of Holes | 1 |
| Overall Length | 1.4 in |
| Returnable | Y |
| Series | LCAX |
| Size | #6 AWG Class B, C, G, H, I, K, M and DLO |
| Specifications | 9/16 in L Wire Strip |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164, ABS approved |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65-03NEBS Level 3UL 486A-486B File No. E52164UL Listed |
| Stock Status | NONSTOCK |
| Stud Size | 5/16 in |
| Sub Brand | Pan-Lug?„? |
| Temperature Rating | 90 °C |
| Tongue Size | 0.56 in W x 0.07 in THK |
| Tongue Type | Straight |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498343374 |
| UPC 12 | 074983433742 |
| Voltage Rating | 35 V |
| Width | 3.35 in |
| Width [Metric] | 8.5090 cm |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with flexible, extra flexible and code stranded copper conductors |
| Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive |
| Copper code/flex cable |
