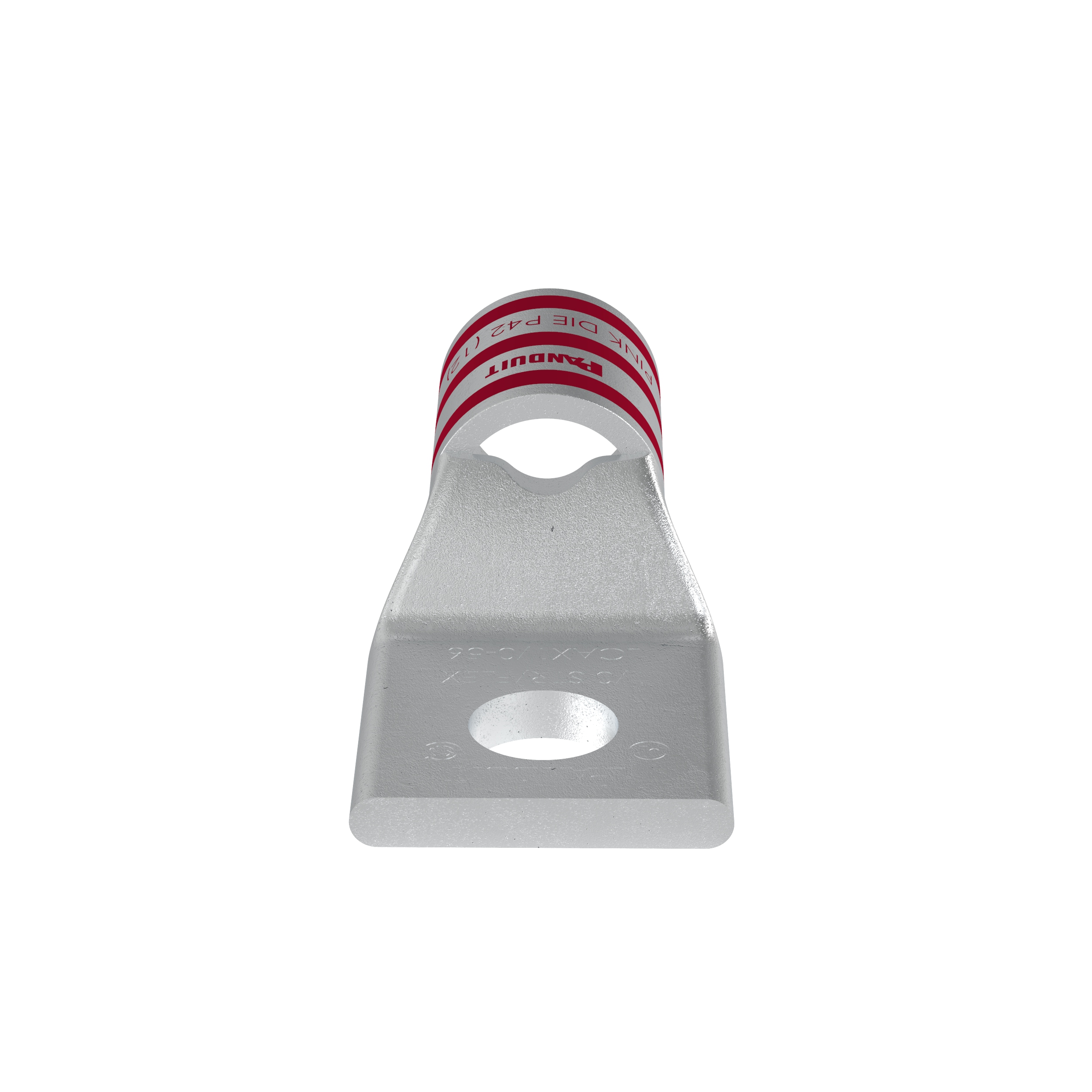

Panduit® LCAX1/0-56-X Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 1/0 AWG Copper Conductor, 5/16 in Stud, P42, Copper
Custom_Product_Images_Illustration
Panduit® LCAX1/0-56-X Pan-Lug™ LCA 1-Hole Compression Lug With Inspection Window, 1/0 AWG Copper Conductor, 5/16 in Stud, P42, Copper
SKU391688
MFGR #LCAX1/0-56-X
Your Cost: $12.9955/ea($1,299.55 / c)
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
Panduit® Pan-Lug™ Compression Connectors provide permanent terminations for a variety of power and grounding applications, with innovation, highest reliability, and lowest installed cost. Panduit offers the first and only copper compression lugs and splices that meet Network Equipment-Building Systems (NEBS) Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures that product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment.
ARRA Compliant Y Barrel Type Standard Barrel Length with Inspection Window Brand Panduit® Buy American Compliant Y Catalog Number LCAX1/0-56-X Color Pink Country of Origin MEX Currency USD EU RoHS Indicator Y Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.0900 lb Gross Weight per Pack Metric 0.38 Gross Weight UOM Metric kg Height 3.40 in Height [Metric] 8.6360 cm Length 4.75 in Length [Metric] 12.0650 cm Manufacturer Panduit® Material Tin-Plated Copper Mounting 3/4 Number Of Holes 1 Returnable Y Size 1/0 AWG Class B, C, G, H, I, K, M and DLO Standard C22.2 No. 65-13, 486A-486B File #E52164 Standards UL File No. E52164, CSA C22.2 No. 65-03, American Bureau Approved, NEBS Level 3, RoHS Compliant Stock Status NONSTOCK Stud Size 5/16 in Sub Brand Pan-Lug?„? Type Copper Compression Connectors - Lugs UNSPSC 39121405 UPC 11 07498343524 UPC 12 07498343524 Voltage Rating 35,000 V Width 3.35 in Width [Metric] 8.5090 cm Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V Color-coded bands for proper die selection and crimp placement Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion Inspection window to assure complete conductor insertion For use with flexible, extra flexible and code stranded copper conductors Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive Copper code/flex cable
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | Y |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Brand | Panduit® |
| Buy American Compliant | Y |
| Catalog Number | LCAX1/0-56-X |
| Color | Pink |
| Country of Origin | MEX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.0900 lb |
| Gross Weight per Pack Metric | 0.38 |
| Gross Weight UOM Metric | kg |
| Height | 3.40 in |
| Height [Metric] | 8.6360 cm |
| Length | 4.75 in |
| Length [Metric] | 12.0650 cm |
| Manufacturer | Panduit® |
| Material | Tin-Plated Copper |
| Mounting | 3/4 |
| Number Of Holes | 1 |
| Returnable | Y |
| Size | 1/0 AWG Class B, C, G, H, I, K, M and DLO |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| Standards | UL File No. E52164, CSA C22.2 No. 65-03, American Bureau Approved, NEBS Level 3, RoHS Compliant |
| Stock Status | NONSTOCK |
| Stud Size | 5/16 in |
| Sub Brand | Pan-Lug?„? |
| Type | Copper Compression Connectors - Lugs |
| UNSPSC | 39121405 |
| UPC 11 | 07498343524 |
| UPC 12 | 07498343524 |
| Voltage Rating | 35,000 V |
| Width | 3.35 in |
| Width [Metric] | 8.5090 cm |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Color-coded bands for proper die selection and crimp placement |
| Easy-to-read, color-coded die index numbers for Panduit and specified competitor crimping dies for selection |
| Made from seamless, high conductivity copper tubing and electro tin plated and burnished to inhibit corrosion |
| Inspection window to assure complete conductor insertion |
| For use with flexible, extra flexible and code stranded copper conductors |
| Can be used with code conductor and flex conductor class G, H, I, K, M and Diesel Locomotive |
| Copper code/flex cable |
